Flat Screen Panel Mount Panel PC
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
- 3mm Edge to Edge Tempered Glass Capacitive 10-point Touch Technology
- IP65 rated front panel
- True-flat screen
- Based on Intel Celeron Processor J1900 quad cores
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

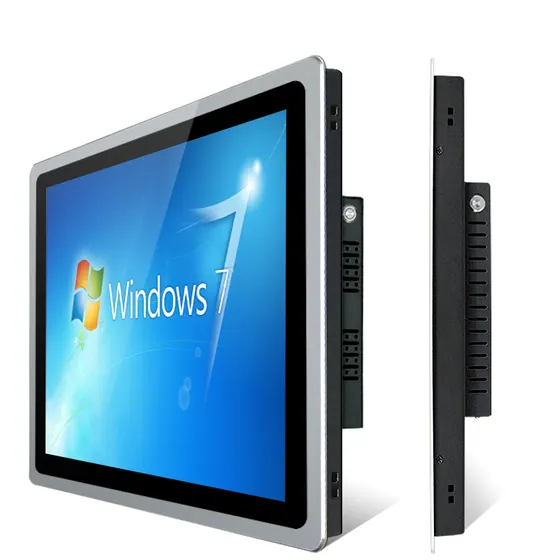

True Flat Industrial Touch Screen Panel PC
This All-in-One Industrial Touch PC series is powered by the high performance Intel Celeron J1900 Quad core processor with support for up to 8GB of DDR3 memory, significantly faster and more efficient, it will deliver easy multitasking and enhanced performance.
This Flat Panel PC is equipped with COM ports, USB ports, VGA port and HDMI-OUT, it can easily connect to other devices – from projectors at school to barcode readers and POS systems at a shop. The additional COM port supports a wide variety of devices.
This true flat fanless panel pc provides a technological leap in multi-touch interactivity, with full 10-finger capacitive multi-touch capability.
| LCD | Industrial LED LCD display | |
| Backlight | LED Backlight | |
| LED MTBF | 50000h | |
| LCD Display | ResoLution | 1024*768 |
| Aspect Ratio | 4:3 | |
| Brightness | 300cd | |
| Contrast | 1000:01:00 | |
| View angle | R/L:65(Typ.), U/D:65(Typ) | |
| Display Area | 246×184.5mm | |
| Touch Panel | Industrial 10 points P-CAP Touch Screen | |
| Touch Screen | Response | ≤5ms |
| Transparence | 85±5% | |
| surface hardness | ≥3H | |
| CPU | Intel J1800 /J1900 CPU | |
| RAM | DDR3：2G | |
| SSD | SSD 32G Optional | |
| USB | 4 | |
| HDMI | 1 | |
| COM | 2*RS232 | |
| Mainboard | VGA | 1 |
| Lan | RJ45*1 | |
| Speaker | 1 | |
| Power supply | DC 12V input | |
| Wi-Fi | Optional at additional cost | |
| OS | support Windows/Linux |
industrial panel pc
Panel Mount Panel PC
panel mount clips
Ask about the EB-CPC104
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
