7 inch All-in-one Touch Screen Panel PC – Embedded Panel PC
- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
- PCAP multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Inner Embedded, Wall mounting
- Light Weight Case
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

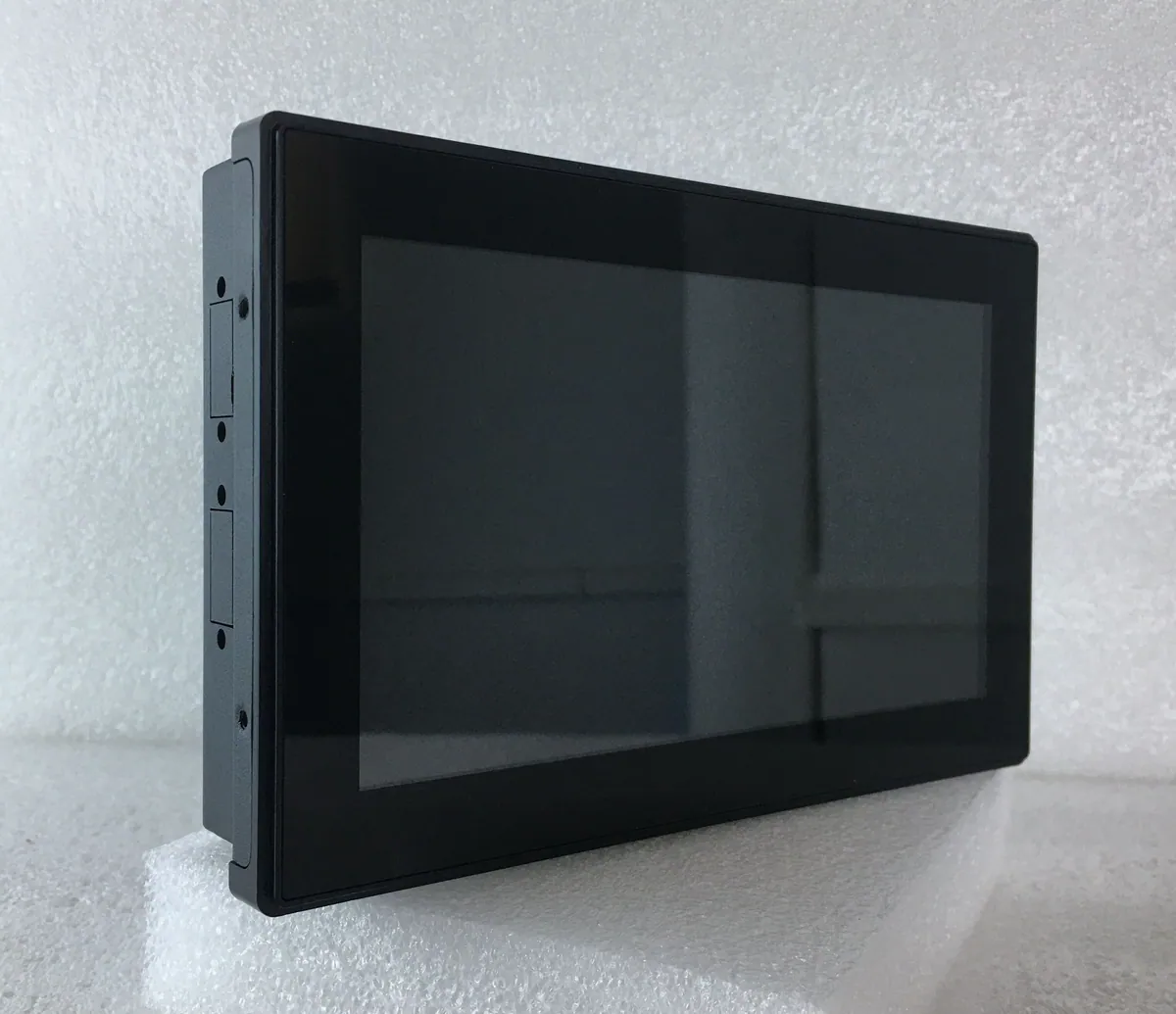

7″ Windows based Industrial Panel PC
This 7″ Panel mount Touch Screen PC runs on an Intel CPU and has a high brightness display, It’s featured at sunlight readable friendly. Also with a capacitive multi-touch screen. This technology allows enjoying every touch and improving the convenience of using our Panel PC.
It has on-board 4GB/ 8GB RAM and is housed in a metal and plastic case,which will decrease the weight of this computer, with an IP65 rated front bezel. The EB-70PPC is the smallest computer in the RESUN Series industrial touch screen computer.
This panel PC is ideal for industrial applications where reliable computing solutions are needed in challenging environmental conditions.

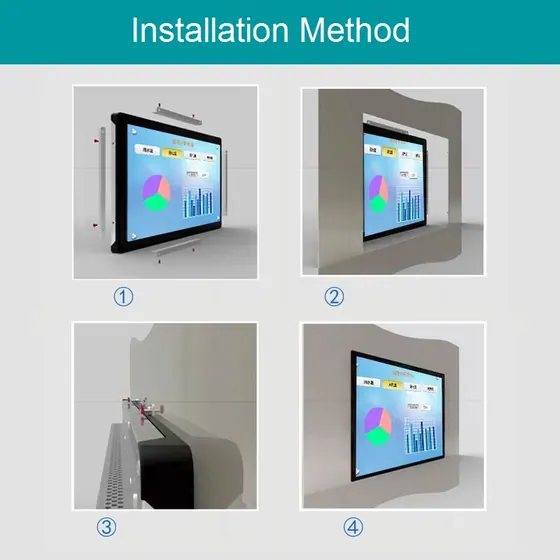

This 7” capacitive touchscreen industrial computer comes with either a Linux or Windows OS which supports most 3rd party software. VESA or panel mount.
| Touch Panel | Multi-point capacitive touch screen |
| Display | 7 inch LCD |
| Resolution | 1024*600 |
| Brightness | 1000cd/m2 |
| Power / Other | |
| Power Supply | DC12V |
| System | |
| CPU | Intel J1900,2.0GHz quad-core processor |
| RAM | 4GB (8GB is optional) |
| ROM | 64GB (Support up to 1TB) |
| GPU | Integrated Intel HD Graphics |
| OS (Optional) | Linux/Winows 10 |
| Interface | |
| HDMI Output | HDMI *1 |
| USB | USB x 3 |
| Audio Output | Audio Output x 1 |
| DC Power | DC power input |
| COM | RS232*2, COM2 Support RS232/RS485 |
| VGA Output | VGA*1 |
| LAN | Lan* 2 ,(Lan*1 Option) |
HMI PANEL PC
7 inch industrial panel pc
Ask about the EB-70PPC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
