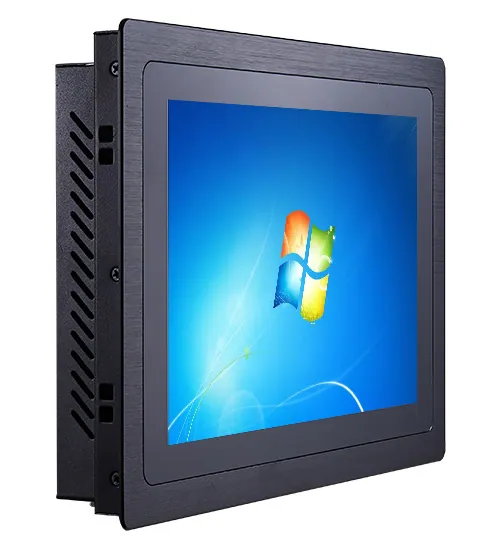

10.1″ Industrial Panel PC
- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
- IP65 compliant Front Flat panel with projected capacitive touchscreen
- Low power consumption
- Built-in speakers
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

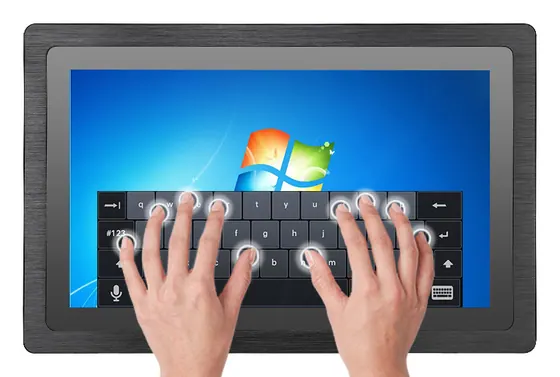

This 10.1″ Industrial Panel PCs combines power-saving Intel Quad cores, flexible I/O, and 10.1” true-flat 10-point projected capacitive screen for industrial applications，
The 10.1″ Panel Computer is compatible with a range of terminals and embedded enclosures with VESA and panel mounting options, wide-range operating temperature range, and shock and vibration tolerances, option for 8~36 VDC input voltage.
This 10.1“ Industrial PC is ideal for most industrial applications. With Windows OS, it supports 3rd party software， SSD Storage and optional WiFi upgrade available. VESA or Panel Mount.
| O/S | support Linux / Windows OS | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| Chipsets | Intel® Bay Trail SOC | |||||||
| RAM | 2GByte DDR3-1333 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD Graphics (854 MHz) | |||||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | HDMI | |||||||
| 2*USB2.0 | ||||||||
| 2*USB3.0 | ||||||||
| 2* COM | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Line out | ||||||||
| MIC | ||||||||
| Power on/off | ||||||||
| DC-in(12V) | ||||||||
| Input Voltage | 12V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 216.96×135.6 | |||||||
| Aspect Ratio | 16:10 | |||||||
| Physical Resolution | 1280（W)*800(H) | |||||||
| Brightness | 300 | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 85/85/85/85(L/R/U/D) | |||||||
| Touch Panel (Optional) | 10-points Capactive Touch Screen | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Install | VESA100x100 , Embedded , Panel , Wall , Rack , Stand | |||||||
| Case | Aluminum ,steel sheet | |||||||
panel pc
industrial panel pc
industrial touch screen computer
Ask about the EB-101PCY
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
