12 inch Rugged Panel PC
- 12 inch Intel Core i5 Industrial Panel PC
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

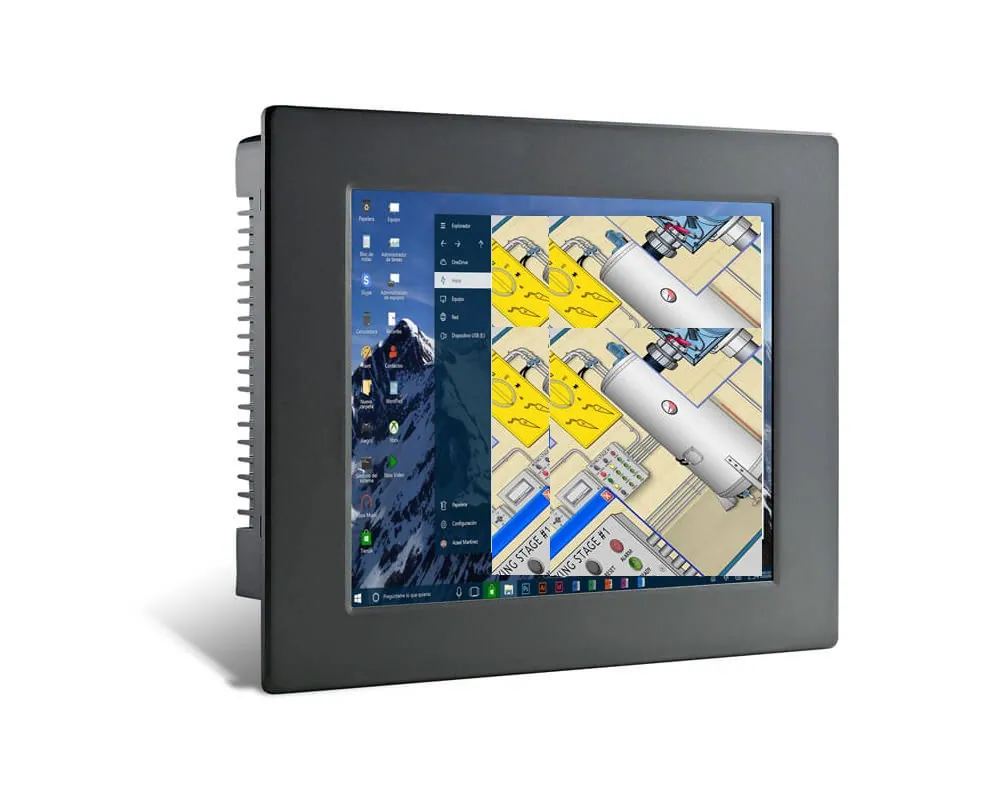

12 inch Rugged Intel Core i5 Industrial Touch Screen Panel PC
RESUN high-performance Industrial Touch Panel PCs is based on Intel strong processors with stunning graphics and computing performances.
Featuring strong expandability and extensive I/O interfaces (LAN, USB and COM), and a true-flat projective capacitive multi-touch screen,
these flexible and modular-design Industrial Panel PC will fulfill your various requirements in industry environments.
Aluminum Alloy Housing
12 inch LCD display at resolution 800*600
Heat-resistant 5-wire resistive touch screen
Intel Core i5-430UM
4G RAM
USB2.0 high speed interface * 4
Onboard dual 1000Mbps RJ45 Ports
2.5″SATA slot*1, mSATA slot*1, mPCIE slot*1
4*RS232/485 with coupled magnetic isolation
256-level programmable watchdog timer
| Display Screen | 12 inch LCD Panel with LED backlit |
| Resolution | 800*600 |
| Touch Panel | Heat-resistant 5-wire resistive touch screen |
| Brightness | 330cd |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 800:1 |
| Viewing Angle | 140° / 140°(H/V) |
| OS | Windows XP/7/8/10, Linux |
| CPU | Intel® Core i5-430UM Processor (3M cache, 1.20 GHz) |
| Memory | 4G DDR3 |
| Storage | 128G SSD mSATA, optional up to 512G |
| Watchdog Timer | 256-level programmable |
| Expansion | 2.5″ SATA slot×1, mSATA slot×1, mPCIE×1 |
| Interface | RS-232/485×4, USB2.0×4, LAN×2 Earphone jack, Mic jack |
| Input Voltage | DC 12-24V |
| Current | 4A@12V |
| Power Consumption | 47W |
| Working Temperature | -10~60ºC |
| Storage Temperature | -40~80ºC |
| Installation Method | 75mm VESA; Embedded installation |
| Dimension(LWD) | 340×263×48mm |
All-in-One Panel PC
Rugged Panel PC
Rugged Panel PC
Ask about the EB-122LPPC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
