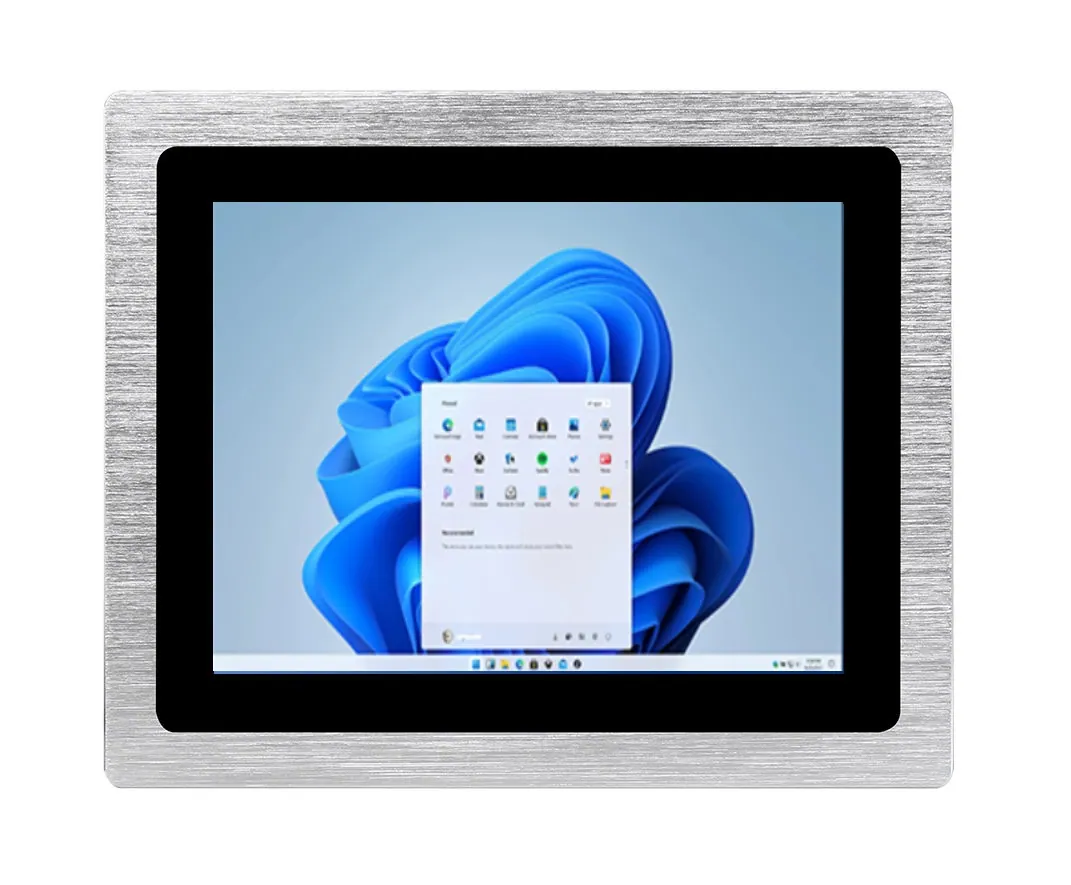

8 inch Industrial Touch Screen PC
- 8 inch Industrial AIO Touch Panel PC
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
8 inch Fanless Panel PC
This 8″ Panel PC support Windows 10, Windows 11 & Linux OS, with metal housing, Easily fits into almost any chassis or integrates into embedded applications. This 8 inch Industrial Touch Screen Computer is Perfect for your industrial automation environments, which can also be configured to be operable with gloves for industrial application.
This 8″ all-in-one Industrial Panel PC # EB-ZG80 is built to withstand industrial environments and features a high-quality materials, , and a sealed front IP65 housing that protects it from dust, water, and other environmental factors.
| O/S | Linux / Windows | |||||||
| CPU | Intel Celeron Processor J1900 or Intel J4125 | |||||||
| Chipsets | Intel Bay Trail SOC | |||||||
| RAM | 4GByte DDR3-1333 | |||||||
| Hard Drive | 128GB SSD | |||||||
| Graphic | Intel® HD Graphics | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | ||||||||
| 3*USB2.0 | ||||||||
| 1*USB3.0 | ||||||||
| 1*RJ45 | ||||||||
| Line out | ||||||||
| MIC | ||||||||
| Power on/off | ||||||||
| DC-12V | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | 12V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Brightness | 300 cd/m² | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 10/15 (Typ.)(Tr/Td) ms | |||||||
| Visual angle | 70/70/50/70(L/R/U/D) | |||||||
| Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Front Panel | IP65 | |||||||
| Install | Arm VESA100,Panel,Wall,Rack,Stand, | |||||||
| Case | Aluminum ,steel sheet | |||||||
8 inch industrial Panel PC
8 inch industrial panel pc
Ask about the 8 inch Industrial Touch Screen PC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
