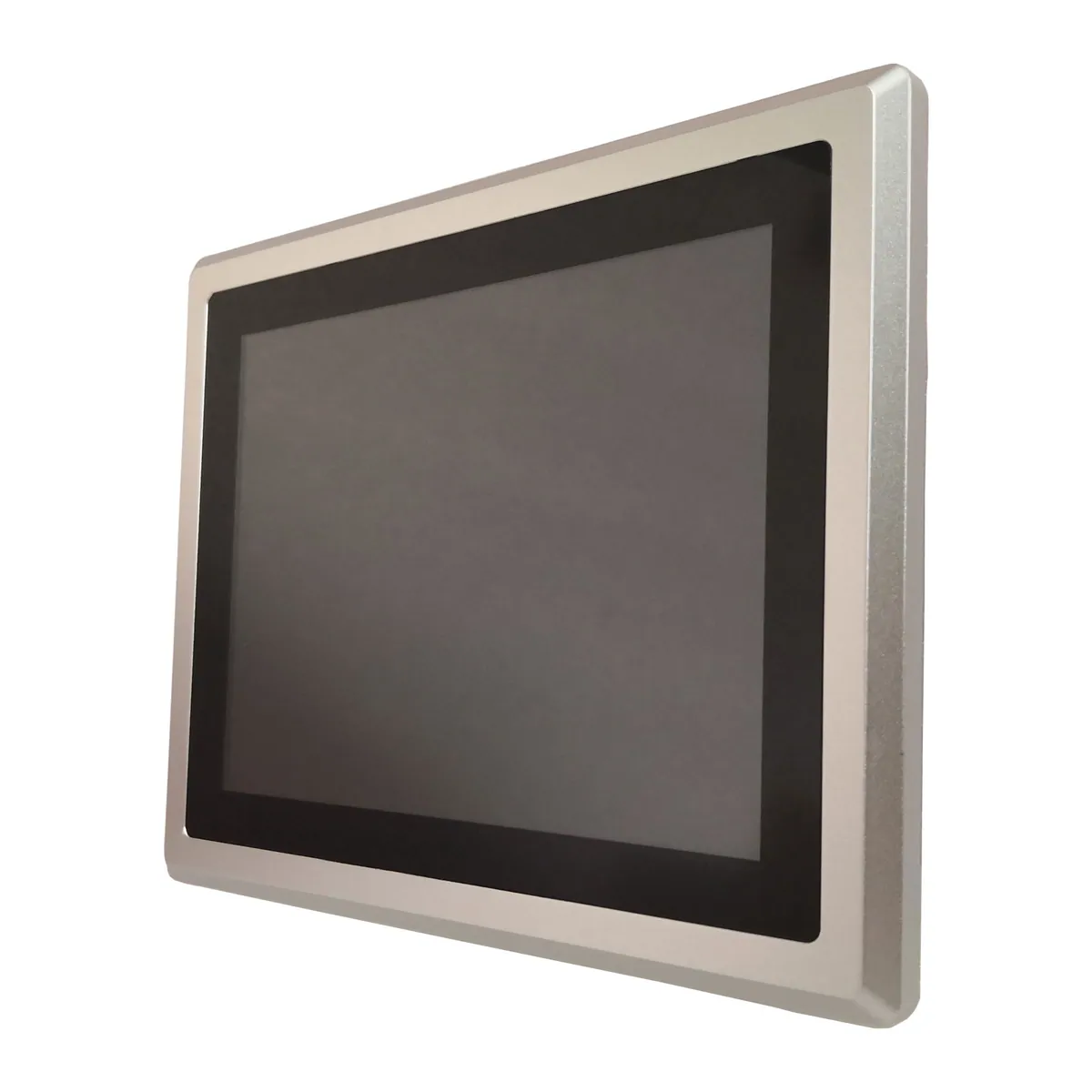

8 inch Industrial Panel PC
- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
- Multiple Memory and Storage Options Available
- IP67 rate Front with Aluminum Housing
- Support VESA mount 75* 75 & 100*100, panel mount
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
8″ Panel PC with Windows or Linux OS
Our customizable industrial capacitive touchscreen IPCs provide power, performance, and functionality in all in one package. With a metal chassis, aluminum heatsink, and the option of panel or VESA mount, the EB-LJ80 series is both rugged and durable. And because this industrial computer runs any 3rd party software.
Windows 10, Windows 11 or Linux OS based Industrial Panel PC series with multi-touch projected capacitive (PCAP) touch screen and 800 nits brightness, IP67 front panel in 9.7″, 10.4″, 12.1″, 15″, 17″, 19″ and widescreen 18.5″ etc.
| O/S Support | Linux / Windows | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| Chipsets | Intel® Bay Trail SOC | |||||||
| RAM | 2GByte DDR3-1333 | |||||||
| Hard Drive | 64GB SSD | |||||||
| Graphic | Intel® HD Graphics (854 MHz) | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | HDMI | |||||||
| 2*USB2.0 | ||||||||
| 2*USB3.0 | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Line out | ||||||||
| MIC | ||||||||
| Power on/off | ||||||||
| DC-12V | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | 12V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 162×121.5 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 800（W)*600(H) | |||||||
| Brightness | 800 cd/m² | |||||||
| Contrast Ratio | 500:1 | |||||||
| React time | 10/15 (Typ.)(Tr/Td) ms | |||||||
| Visual angle | 70/70/50/70(L/R/U/D) | |||||||
| Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||

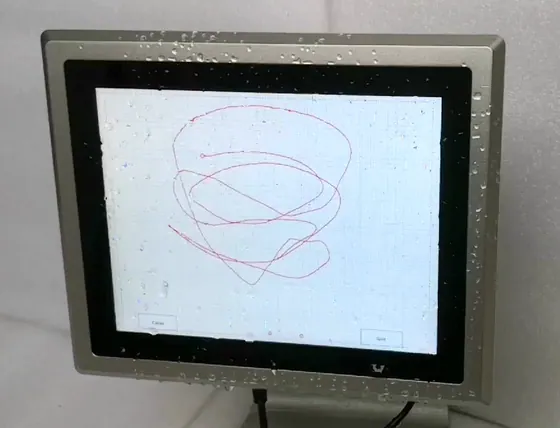

| Front Panel | IP67 | |||||||
| Install | VESA, Panel mount, Wall mount, Desktop, Embedded | |||||||
| Case | Aluminum ,steel sheet | |||||||
| Optional | W-lan optional | |||||||
| Resistive touch | ||||||||
| IP65 class | ||||||||
| Bluetooth 2.0 | ||||||||
| Advanced RAM and SSD/HDD | ||||||||

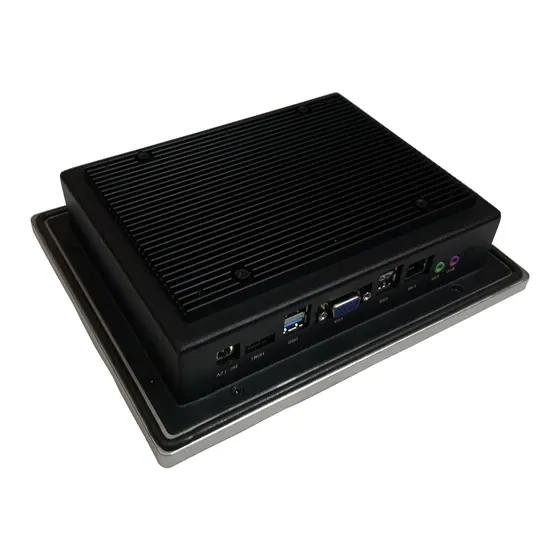

fanless panel pc
embedded panel pc
industrial panel PCs
Ask about the EB-LJ80
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
