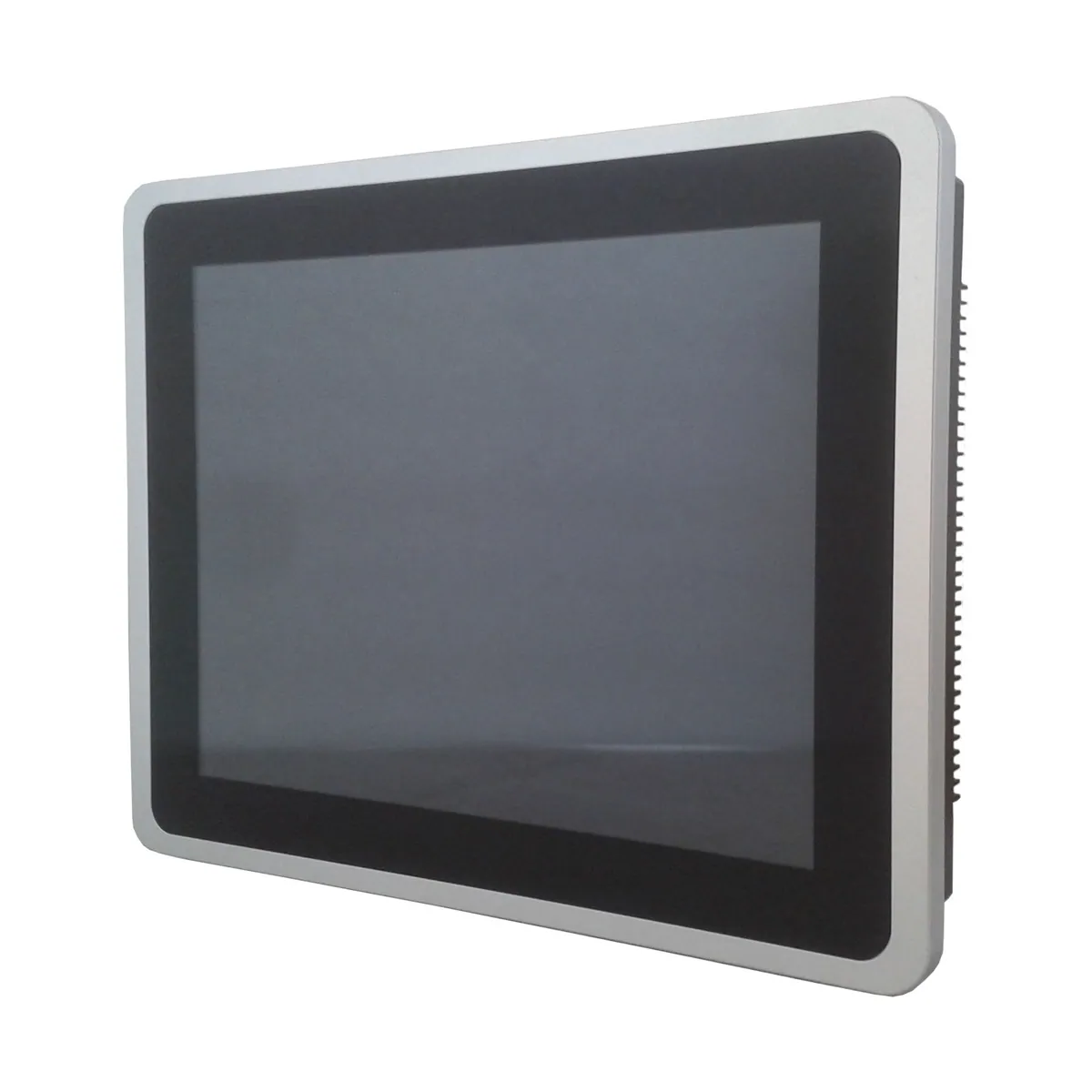

9.7 inch Fanless Industrial Flat Panel PCs
- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
- Fanless cooling design and Ultra-low power consumption
- Front Panel IP65 rated Water and Dust Proof
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
9.7 inch Flat Screen Panel PC
EB-97FCPC is a 9.7 inch Flat Screen fanless Panel PC featuring Intel J1900 quad-core processor. The CNC designed distinct aluminum case gives the system an understated luxury and elegant look.
This industrial panel pc also featuring a bright TFT-LCD with LED backlight display and true flat 10-point projective capacitive multi-touch front panel that’s IP65 compliant, which is easy to maintain and clean, to prevent water or liquid droplets to penetrate into the PC case.
It is powerful enough to use it as a Controller for a CNC Machine.
| O/S | support Linux, Windows | |||||||
| CPU | Intel® Celeron® Processor J1900 Quad core | |||||||
| Chipsets | Intel® HM65 | |||||||
| RAM | 1*2GByte DDR3-1333 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD2500 | |||||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | HDMI | |||||||
| 4*USB2.0 | ||||||||
| 2* COM | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| Power on/off | ||||||||
| 2*12V DC-in(1*screwable) | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 211.2×158.4 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Maximum knowable resolution | 1920（W)*1440(H) | |||||||
| Brightness | 300 | |||||||
| Contrast Ratio | 600:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 70/70/50/70(L/R/U/D) | |||||||
| Touch Panel | 9.7″ 10-point Projected capacitive touch screen panel | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥3H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Install | Arm VESA100,Panel,Wall,Rack,Stand, | |||||||
| Case | Aluminum ,steel sheet | |||||||
| Size(WxHxD)(mm) | 258x205x53.5 | |||||||
Industrial Panel PC
Ask about the EB-97FCPC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
12.1"- 12.1″ True-Flat Front Panel with Touch Screen
- Intel Bay Trail Quad Core CPU J1900 Quad-cores CPU
- Onboard DDR3L 2GB Memory, up to 8GB
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
