15″ Industrial Panel PC, with Power Switch and USB port on Front bezel
- 15 inch 4:3 TFT LCD panel
- 1024 * 768 pixels resolution
- Multiple CPUs for option, Intel J4125, J6412, i3, i5, i7 CPU
- 12V DC power supplort (Wide-range power is optional)
- Wide operating temperature
- Aluminum case design
- IP65 compliant (front panel)
- Windows or Linux OS support
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
15″ Panel PC, based on Windows or Linux operating system.
With Power button & waterproof USB on front panel
RESUN EB-15PCY It’s a 15″ wall mounting & panel mounting Panel PC, powered by the high-performance Intel processor, Also, the Industrial Panel PC offers multiple configuration options with i3 or i5 or i7 CPU available.
This Industrial Computer features a 15 inch 10-point P-CAP touch screen ,It has rich interfaces, that allow for connection of different peripherals and displays, suitable for the different industrial fields. It makes the Industrial Touch Screen PC suitable to be applied in control cabinet and self-service kiosks.
The VESA mounting in the industrial PC also enables users to mount and maintain the device more flexibly for industrial control.
In conclusion, This EB-15PCY Panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, making them a first choice in IoT applications.
With connectivity that gives you options, this 15 inch panel mount Panel PC has IP65 front panel, to avoid water and dust. available for waterproof Power Switch and USB port on front bezel. Also, this IP65 front panel Industrial Panel PC contains a durable metal enclosure, and a sturdy metal bezel for industrial application.
| O/S | drivers for Windows/Linux operating systems included | |||||||
| CPU | Multiple CPUs for option, J1900, J4125, i3, i5 and i7 CPU. | |||||||
| Chipsets | North bridge: Intel NM10 | |||||||
| RAM | 4GB | |||||||
| Hard Drive | 64GB | |||||||
| Graphic | Intel GMA3650,640MHz | |||||||
| Audio | Realtek HD ALC 269Q, 2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports | |||||||
| USB | 5* USB 2.0 ports | |||||||
| External Ports | HDMI | |||||||
| 4*USB 2.0 | ||||||||
| 2* COM/RS232 （1 RS232 replaceable for RS422/485） | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| W-LAN-Antenna connectors | ||||||||
| Power on/off | ||||||||
| 12V DC-in | ||||||||
| Power consumption(W) | 36 | |||||||
| Stand-By-Consumption (W) | ≤1 | |||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temp. | -10℃ to +60℃ | |||||||
| Storage Temp | -10℃ to +70℃ | |||||||
| Driver | Windows, Linux; Linux Ubuntu OS support | |||||||
| Display(mm) | 305.5×229.5 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Luminance(cd/㎡) | 350 | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle h:v(°) | 160;160 | |||||||
| Touch Panel | 10-points capactive touch screen | |||||||
| Touch Panel Driver | Windows, Linux, Marc | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | 3H | |||||||
| Input Force(g) | 20-150 | |||||||
| Power Supply | AC100-240V,DC12V | |||||||

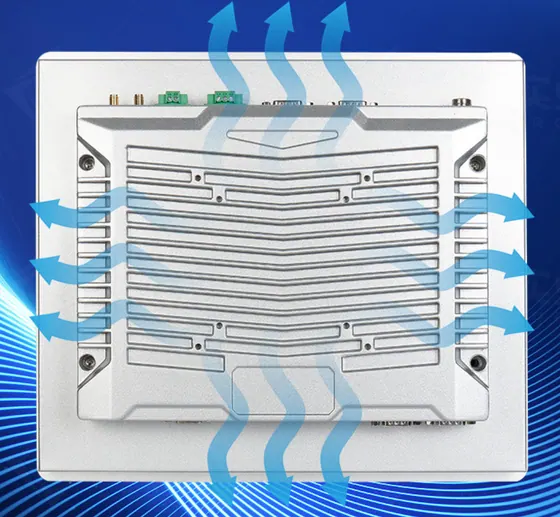

| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Installation | Panel,Wall,Rack,Stand,Arm VESA100 (optional) | |||||||
| Case | Aluminum | |||||||
| Size(WxHxD)(mm) | 368x288x62.8 | |||||||
Industrial Panel PC
15.6” Windows All-in-one Panel PC
Ask about the 15″ Industrial Panel PC, with Power Switch and USB port on Front bezel
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
