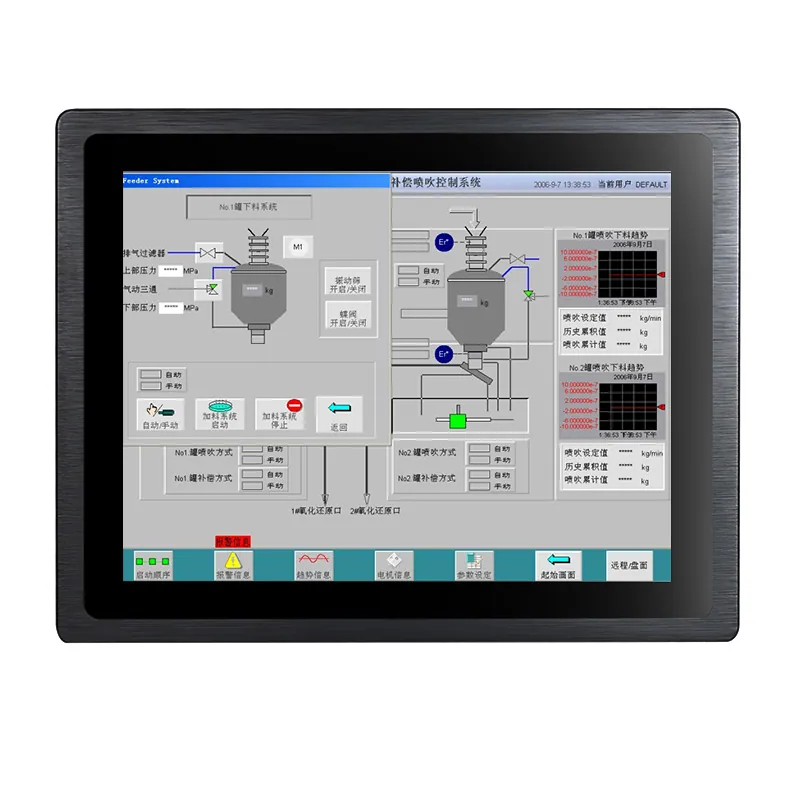

15 inch Fanless Industrial Touch Screen Panel PC
- 15 inch Industrial All In One PC
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
15 inch All-In-One Industrial Touch Screen Computer
EB-LH15PC 15 inch Industrial Panel PC uses high-end industrial motherboard, Intel Celeron 1900 quad-core low-power CPU (it can be upgraded to I3 / I5 / I7 CPU), which is more faster than the Atom processor. It is more powerful and more powerful. Low power consumption;
The Panel PC housing is made of brushed aluminum alloy, the 10-points Capacitive Touch Screen true-flat and seamless design of the display panel, the protection level of 3mm thickness front panel is IP65 rating, which effectively prevents splashing water drops.
Main features
| Display | 15 inch |
| Resolution | 1024*768(4:3) |
| (W x H x D) | 379mm x 300mm x 63mm |
| Front Panel thickness | 3mm |
| PC Housing | Alumimum case |
| Brightness | 400cd/(l≤1500cd/) |
| contrast | 1000:1 |
| Touch screen | 10-points P-CAP Touch Screen |
| MTBF(Longevity) | ≥5000 |
| reaction times | 5ms |
| working Temp. | -10ºC~50ºC(,,) |
| Humidity | <80%() |
| View angle | 160° |
| Display colour | 16.7M |
| Hardness | 3H |
| USB*2,COM*1,Lan port*1,Auido/Video*1,VGA*1,HDMI(customized),WiFi*1,DC power input*1 | |
| Backlight life | 50000H |
| OS support | Windows, Linux |
| Power Support | 100-240V,50-60hz |
industrial panel pc
panel pc
Ask about the EB-LH15PC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
