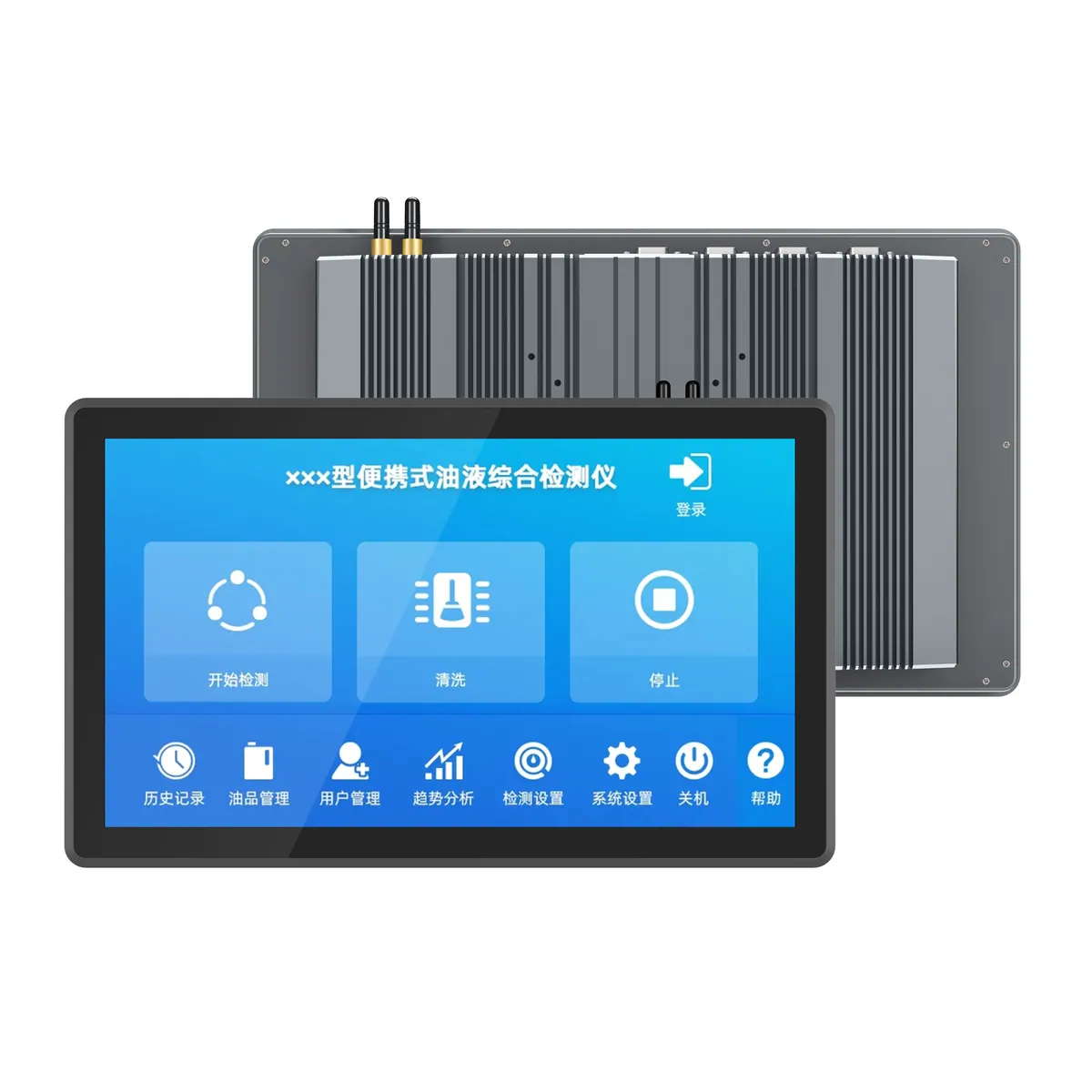

15.6″ Panel PC with Intel Core Ultra 5 and IP65 front panel
- Intel Core Ultra 5 125U Processor
- 15.6″ TFT-LCD Wide Screen, IP65 Compliant
- NPU available for your AI requirements
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.

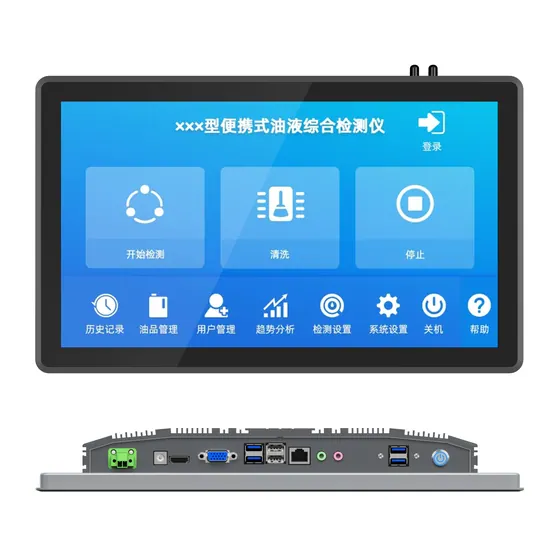

Intel Core Ultra 5 Industrial Computer
The EB-W156PC12 Series, available in 15.6-inch and also other display screen sizes, like 10.4“, 21.5-inch screen sizes, is a new generation of Industrial panel PCs powered by Intel®Core™ Ultra 5 125U processor. Combining high-efficiency NPU AI-edge computing with a slim, modular chassis design, it delivers reliable performance for industrial automation, smart manufacturing, and control applications.
Featuring a full HD slim-bezel display, 10-point P-Cap touch, and IP65-rated front panel, It ensures durability and intuitive operation in harsh environments. With 2 × GbE LAN, multiple USB ports, COM (RS-232/485), and flexible M.2 / Mini PCIe expansion, it offers broad connectivity for industrial peripherals and wireless modules. Supported by Windows 10/11 Enterprise and Linux, this series combines strong reliability, long lifecycle support, and compliance with CE, FCC Class A standards — making it an ideal platform for next-generation HMI applications.
| Specification: | |
| CPU | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz |
| RAM | 8GB DDR5 5600 MT/s （max 96G) |
| storage | 512GB nvme M.2 |
| OS | Windows 11 PRO |
| Outline Dimension | 383.4*234.8*51mm |
| Cut-out (Embedded) | 377.4×228.8mm R=8.0 |
| Shell material | Aluminum alloy (anodized) |
| Shell color | Grey |
| Interface | DC-in, HDMI, VGA, 2*LAN, 4*USB, 2*COM, MIC, EAR |
| Input Voltage | DC 12V or 19V |
| Power Consumption | 30W,70W(CPU Maximum Turbo Power) |
| IP Rating | IP65 (front panel) |
| Cooling method | Heat sink with fan |
| Operating Temperature | ,-25°C~+75°C |
| Touch Specification: | |
| Size | 15.6 inch |
| Active Area | 344 * 194mm |
| Touch | 10-points projected capacitive touch screen |
| Consumption | ≤0.3W |
| Response Time | ≤10ms |
| Linearity | ≤2% |
| Minimum Touch Diameter | 1.5mm |
| Touch Strength | ≤10g |
| Touch panel Life Time | ≥200 million Touches |
| Touch Operation | Finger or Touch pen |
| Display Specification: | |
| Size | 15.6 inch |
| Display Area | 344.16(W)×193.59(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Visual angle | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio | 1500:1 |
| Display Colors | 262K/16.7M , 50% NTSC |
| Optical Respponse Time | 30 (Typ.)(Tr+Td) ms |
| Luminance | 350 cd/m² |
| Backlight life | 30000Hrs |
| Light Source | WLED |
Intel Core Ultra 5 Industrial Computer
Ask about the EB-W156PC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"- 8 inch Industrial AIO Touch Panel PC
8"- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"- 12 inch Intel Core i5 Industrial Panel PC
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
