Rockwool Fire-Wall Cold Room Panels
Mineral rockwool sandwich panels with A2-grade non-combustible rating. Used for fire-wall separations and high-risk industrial applications.
- A2-Grade · 100-200mm
What The Rockwool Fire-Wall Cold Room Panels Does
Rockwool (stone wool) sandwich panels are non-combustible (A2 fire rating, Euroclass A2-s1,d0) and used where building codes require fire-wall separations between cold storage halls, ammonia plant rooms, and high-occupancy areas. The rockwool core also provides excellent acoustic insulation — STC 35-42 depending on thickness.

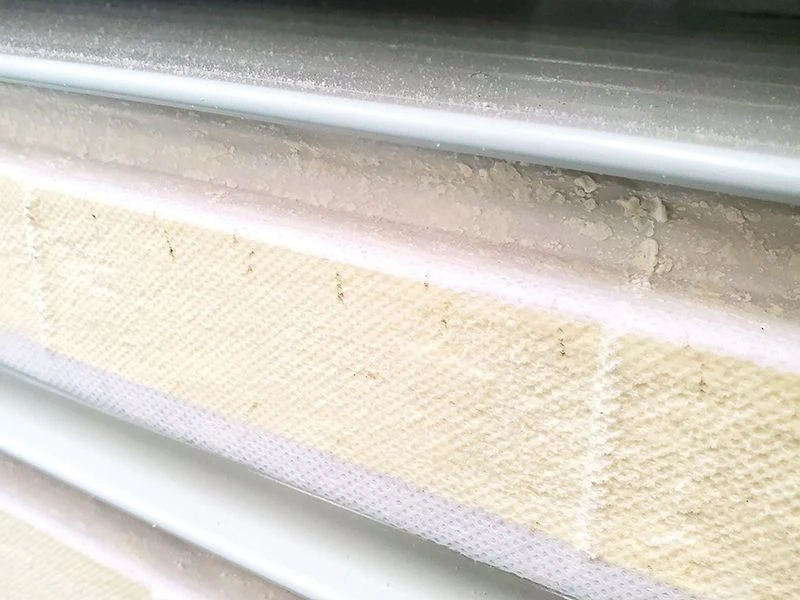

Howcool's rockwool panels use high-density 100-120 kg/m³ rockwool core fully bonded to pre-painted galvanised steel facings. Thicknesses 100-200 mm. Suitable for cold room walls, partition walls between processing rooms, and ceiling assemblies in food processing facilities. Slightly higher thermal conductivity than PU/PIR — λ = 0.040 W/(m·K) — but excellent for non-cold applications where fire rating is the primary driver.
Rockwool sandwich panels with A2 non-combustible fire rating. Used for fire-wall separations, NH₃ plant rooms, and acoustic insulation in food processing facilities. 100-200 mm thicknesses.
Why Buyers Choose This Model
A2 Non-Combustible Rating
Will not burn or contribute fuel to a fire. Required by code for fire-wall separations in many industrial buildings.
Acoustic Insulation Bonus
STC 35-42 depending on thickness. Ideal for machinery rooms, NH₃ plant rooms, separating loud processing areas.
Higher Density Construction
100-120 kg/m³ rockwool core is denser and more rigid than PU/PIR. Higher load-bearing capacity for tall walls and overhead ceilings.
Long Service Life
Inorganic material — does not age, off-gas, or shrink. 25+ year service life with no degradation.
Cold Room Panels Failure Modes
Heat ingress that never stops
Polyurethane panels with low thermal conductivity in thicknesses from 50 to 200 mm; on our Jeddah design, 150 mm cut summer heat ingress by over 40% against 100 mm.
Fire compliance
PIR fire-rated and rockwool fire-wall panels for sites where the insulation core has to meet building fire codes.
Frost heave under the slab
Embossed aluminium floor panels and insulated floor build-ups with anti-frost-heave heating for freezer rooms.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Core Material | Rockwool (stone wool), density 100-120 kg/m³ |
|---|---|
| Fire Rating | A2 / Euroclass A2-s1,d0 (non-combustible) |
| Thermal Conductivity λ | 0.040 W/(m·K) at 10°C |
| Acoustic Rating | STC 35-42 |
| Thickness | 100 / 120 / 150 / 200 mm |
| Facing | 0.5-0.6 mm pre-painted galvanised steel |
| Joint | Tongue-and-groove with EPDM gasket |
| Panel Width | 1000 / 1150 / 1200 mm |
|---|---|
| Max Length | 9 m (continuous panel) |
| Production Lead Time | 30-40 days after deposit |
| Warranty | 15 years on panel integrity |
| Certification | ISO 9001, CE, GB 8624 A2 |
| Origin | Beijing, China |
Rockwool Fire-Wall Cold Room Panels In Production And On Site
Sectors Using This Equipment
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Fruit and Vegetable
Fruit keeps respiring after harvest. Temperature slows it down; controlled atmosphere nearly stops it. The difference between the...
Pharmaceutical and Biotech
In pharmaceutical storage the temperature record is part of the product. A chamber that held its set point but cannot prove it...
Rockwool Fire-Wall Cold Room Panels Questions
What capacity range does the Rockwool Fire-Wall Cold Room Panels cover?
The standard range is A2-Grade · 100-200mm. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
30-40 days after deposit. Equipment is packed in export wooden cases.
What warranty applies?
15 years on panel integrity, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE, GB 8624 A2. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
