Blast Freezer & Low-Temp Panels
Heavy-thickness panels for blast freezers, IQF rooms and ultra-low-temperature applications down to −40°C.
- −40°C Service · 150-250mm Thick
What The Blast Freezer & Low-Temp Panels Does
Blast freezer and ultra-low-temperature panels are engineered for service down to −40°C — extra insulation thickness (150-250 mm), high-density PIR or PU core, and reinforced vapour barriers prevent moisture migration through the panel. Required for blast freezers, IQF tunnel freezers, plate freezers, and pharmaceutical −80°C storage (with additional vacuum-insulated panel option).
Howcool builds these panels with extra-thick PIR core (45 kg/m³) and aluminium foil vapour barrier laminated to the warm side. The cold side has standard pre-painted steel. Thermal bridging is eliminated by using a fully-recessed cam-lock joint with double EPDM gasket. Standard thicknesses 150, 175, 200, 250 mm — engineered for 30+ year service life at −40°C.
Heavy-thickness cold storage panels for blast freezers, IQF rooms and ultra-low-temperature service down to −40°C. PIR core, aluminium vapour barrier, double-gasket joint. 150-250 mm thicknesses.
Why Buyers Choose This Model
−40°C Service Rating
Engineered for continuous service at −40°C. Vapour barrier prevents moisture migration that would degrade insulation.
Extra-Thick Insulation
150-250 mm panels deliver U-value 0.10-0.15 W/(m²·K). Energy consumption 30-40% lower than thinner panels at the same temperature.
Double-Gasket Joint
Two EPDM gaskets at each joint create a thermal break and prevent vapour migration. Essential for ultra-low-temp service.
30-Year Service Life
PIR-based panels with proper vapour barrier do not lose insulation value over time. Verified by destructive testing on 20-year-old installations.
Cold Room Panels Failure Modes
Heat ingress that never stops
Polyurethane panels with low thermal conductivity in thicknesses from 50 to 200 mm; on our Jeddah design, 150 mm cut summer heat ingress by over 40% against 100 mm.
Fire compliance
PIR fire-rated and rockwool fire-wall panels for sites where the insulation core has to meet building fire codes.
Frost heave under the slab
Embossed aluminium floor panels and insulated floor build-ups with anti-frost-heave heating for freezer rooms.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Core Material | PIR, density 45 kg/m³ |
|---|---|
| Thickness | 150 / 175 / 200 / 250 mm |
| Service Temperature | −40°C continuous, −50°C short-term |
| U-Value (200 mm) | 0.11 W/(m²·K) |
| Vapour Barrier | Aluminium foil laminate, warm side |
| Facing (warm side) | 0.6 mm pre-painted steel + Al foil |
| Facing (cold side) | 0.5-0.6 mm pre-painted steel |
| Joint | Recessed cam-lock with double EPDM gasket |
|---|---|
| Panel Width | 1000 / 1150 / 1200 mm |
| Max Length | 10 m |
| Production Lead Time | 30-40 days after deposit |
| Warranty | 15 years on insulation value |
| Certification | ISO 9001, CE, GB 8624 B1 |
| Origin | Beijing, China |

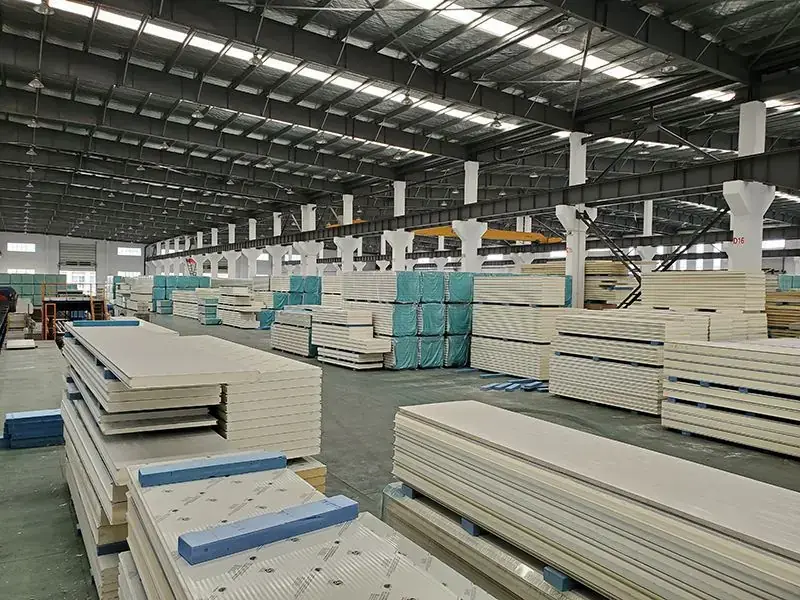

Blast Freezer & Low-Temp Panels In Production And On Site
Sectors Using This Equipment
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Fruit and Vegetable
Fruit keeps respiring after harvest. Temperature slows it down; controlled atmosphere nearly stops it. The difference between the...
Pharmaceutical and Biotech
In pharmaceutical storage the temperature record is part of the product. A chamber that held its set point but cannot prove it...
Blast Freezer & Low-Temp Panels Questions
What capacity range does the Blast Freezer & Low-Temp Panels cover?
The standard range is −40°C Service · 150-250mm Thick. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
30-40 days after deposit. Equipment is packed in export wooden cases.
What warranty applies?
15 years on insulation value, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE, GB 8624 B1. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
PU / PIR Cold Room Panels
Cam-Lock and Plug-in sandwich panels with polyurethane core and color-coated steel. 15-20 year lifetime.
PIR Fire-Rated Cold Room Panels
Polyisocyanurate (PIR) sandwich panels with B1-grade fire rating. Required for food processing, pharma and high-fire-risk applications.
Rockwool Fire-Wall Cold Room Panels
Mineral rockwool sandwich panels with A2-grade non-combustible rating. Used for fire-wall separations and high-risk industrial applications.
Embossed Aluminium Floor Panels
Walkable cold-storage floor panels with embossed aluminium tread surface. Forklift-rated insulation for cold room floors.
Facilities Built With This Equipment Family
2,000-ton Food Cold Storage Project
Hanbell screw parallel unit + PLC automation. 100mm PU panels with 40±2 kg/m³ density.
49,500m³ Food Cold Storage Solution
Large-scale multi-zone food cold storage. Turn-key design-build.
1,643 m² Controlled-Atmosphere Cold Storage
1,643 m²/5,749 m³ CA cold storage with 6 partitioned rooms and Hanbell screw parallel refrigeration system.
Request A Quotation For The Blast Freezer & Low-Temp Panels
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
