PU / PIR Cold Room Panels
Cam-Lock and Plug-in sandwich panels with polyurethane core and color-coated steel. 15-20 year lifetime.
- 50-200mm insulated sandwich panels
What The PU / PIR Cold Room Panels Does
Howcool PU / PIR Cold Room Insulation Panels are the structural skin of any modern cold storage facility. Cores are high-density polyurethane (PU) or fire-retardant polyisocyanurate (PIR) foam, foamed between two pre-painted galvanized steel skins in a continuous production line. The result is a monolithic sandwich panel with excellent thermal performance (λ ≤ 0.022 W/m·K) and long-term dimensional stability.
Standard panel thicknesses: 75/100/125/150/200mm. Widths: 950/1000/1150/1200mm. Lengths: up to 12m. Cam-lock connections allow quick on-site assembly without bolts or welding. Floor, wall and ceiling panels are supplied as a coordinated system with custom corner pieces, T-joints, and matching cold-storage doors.
Our cold room panels are crafted using a blend of polyisocyanate and polyether or polyester polyol, resulting in a high-performance product. Known for superior heat conductivity, temperature preservation, compressive and tensile strength. Available: 100-120mm for cold storage, 150-200mm for freezer, 200-250mm for quick-freezer.
Why Buyers Choose This Model
PU or PIR Foam Core
PU density 40-42 kg/m³ for walk-ins. PIR fire-retardant Class B1 required for food processing and pharmaceutical cold storage.
Pre-Painted Steel Skin
0.4/0.5mm galvanized steel with polyester or food-grade PVC coating. Stainless-steel option for pharma and hygiene-critical applications.

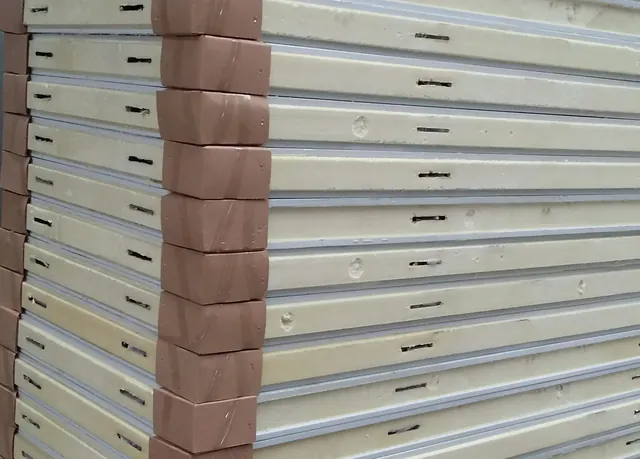

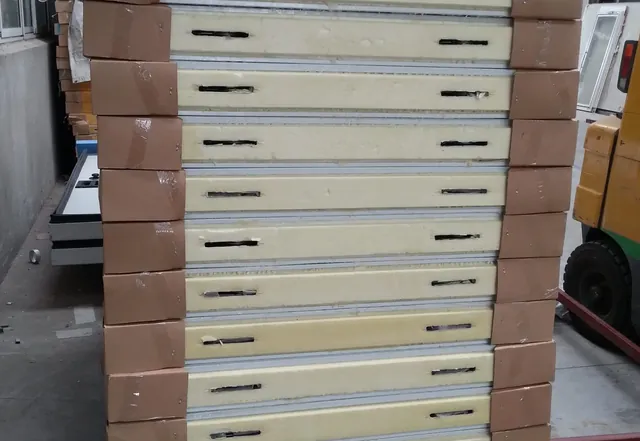

Cam-Lock Assembly
Hidden cam-lock joints foamed into both edges. On-site installation is 3-5× faster than bolted panels. No thermal bridging.
Certified Performance
Each batch tested for density, closed-cell ratio and thermal conductivity. Typical λ = 0.022 W/m·K after ageing.
Cold Room Panels Failure Modes
Heat ingress that never stops
Polyurethane panels with low thermal conductivity in thicknesses from 50 to 200 mm; on our Jeddah design, 150 mm cut summer heat ingress by over 40% against 100 mm.
Fire compliance
PIR fire-rated and rockwool fire-wall panels for sites where the insulation core has to meet building fire codes.
Frost heave under the slab
Embossed aluminium floor panels and insulated floor build-ups with anti-frost-heave heating for freezer rooms.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Steel Thickness | 0.376 – 0.8mm |
|---|---|
| Panel Thickness | 50 / 75 / 100 / 125 / 150 / 180 / 200mm |
| Effective Width | Roof: 960mm | Wall/Ceiling: 925/960/1125mm |
| Length | Up to 11.8m (customisable) |
| Materials | PU core + color-coated steel both sides |
| Density | 38-45 kg/m³ |
| Color Options | Blue / White / Grey / Custom |
| Lifetime | 15-20 years |
| Features | Light weight, heat insulation, fireproof, waterproof, eco-friendly |
|---|---|
| Packing | Shipping containers (customisable) |
| Production Lead Time | 20-30 days after deposit |
| Warranty | 5 years on core components |
| Certification | ISO 9001, CE, A-grade fire rating |
| Origin | Beijing, China |
| After-Sales | 24/7 remote support, on-site available |

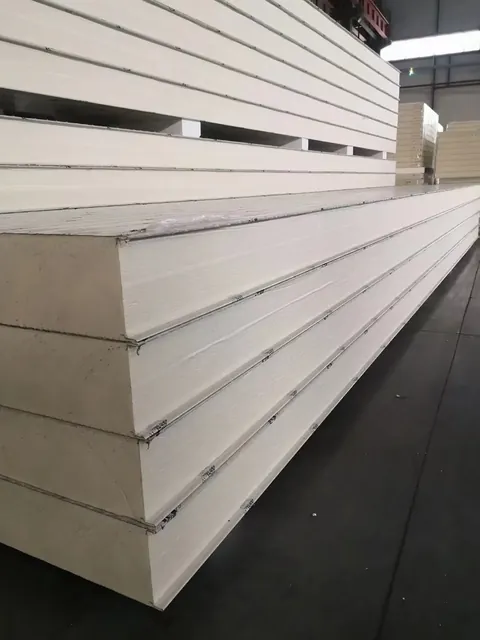

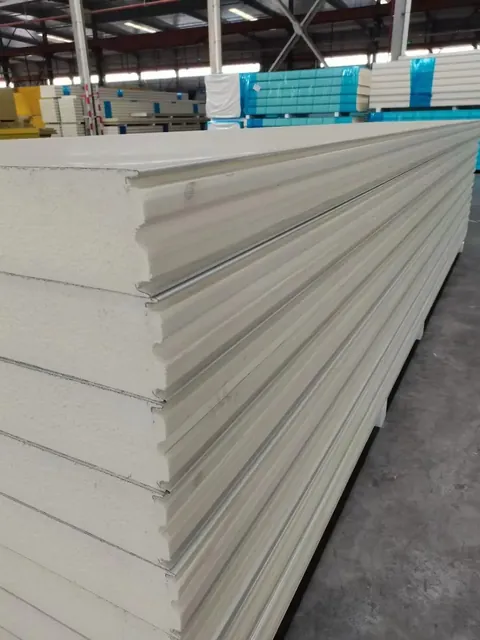

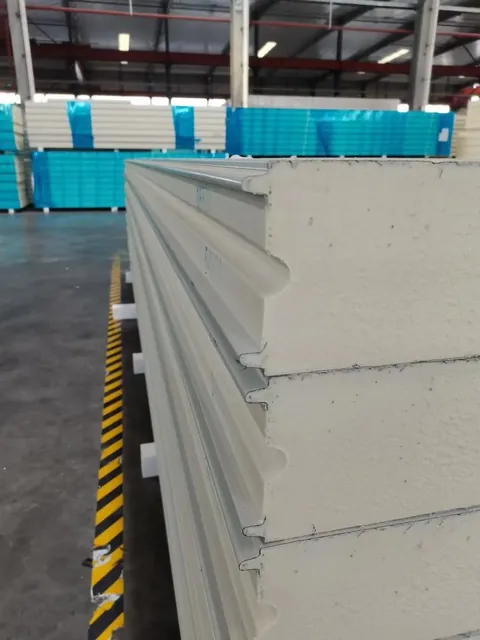

PU / PIR Cold Room Panels In Production And On Site
Sectors Using This Equipment
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Fruit and Vegetable
Fruit keeps respiring after harvest. Temperature slows it down; controlled atmosphere nearly stops it. The difference between the...
Pharmaceutical and Biotech
In pharmaceutical storage the temperature record is part of the product. A chamber that held its set point but cannot prove it...
PU / PIR Cold Room Panels Questions
What capacity range does the PU / PIR Cold Room Panels cover?
The standard range is 50-200mm insulated sandwich panels. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
20-30 days after deposit. Equipment is packed in shipping containers (customisable).
What warranty applies?
5 years on core components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE, A-grade fire rating. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
PIR Fire-Rated Cold Room Panels
Polyisocyanurate (PIR) sandwich panels with B1-grade fire rating. Required for food processing, pharma and high-fire-risk applications.
Rockwool Fire-Wall Cold Room Panels
Mineral rockwool sandwich panels with A2-grade non-combustible rating. Used for fire-wall separations and high-risk industrial applications.
Embossed Aluminium Floor Panels
Walkable cold-storage floor panels with embossed aluminium tread surface. Forklift-rated insulation for cold room floors.
Blast Freezer & Low-Temp Panels
Heavy-thickness panels for blast freezers, IQF rooms and ultra-low-temperature applications down to −40°C.
Facilities Built With This Equipment Family
2,000-ton Food Cold Storage Project
Hanbell screw parallel unit + PLC automation. 100mm PU panels with 40±2 kg/m³ density.
49,500m³ Food Cold Storage Solution
Large-scale multi-zone food cold storage. Turn-key design-build.
1,643 m² Controlled-Atmosphere Cold Storage
1,643 m²/5,749 m³ CA cold storage with 6 partitioned rooms and Hanbell screw parallel refrigeration system.
Request A Quotation For The PU / PIR Cold Room Panels
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
