Integrated PLC Control Cabinet
Main PLC control cabinet for cold storage installations. Siemens S7-200 SMART PLC, Schneider Electric contactors, CHINT breakers — integrated and factory-tested.
- Siemens S7-200 SMART · 380V/3-phase
What The Integrated PLC Control Cabinet Does
Howcool's integrated PLC control cabinet is the central nervous system of every cold storage installation. A Siemens SIMATIC S7-200 SMART PLC coordinates compressor staging, defrost cycles, temperature and humidity regulation, and all safety interlocks. Schneider Electric contactors and overload relays handle motor switching; CHINT moulded-case breakers protect each circuit. All wiring is labeled, tested, and ready for field-bus connection to evaporator fan coils and condensing units.
Each cabinet is custom-engineered around the project's compressor count, evaporator zones, and door interlocks. Standard enclosure is IP54 painted steel with hinged front door and key lock; IP65 stainless steel optional for wet processing rooms. Factory-tested at full load before shipment, with test certificate and as-built wiring diagrams included.
Integrated PLC control cabinet with Siemens S7-200 SMART PLC, Schneider Electric contactors, and CHINT breakers. Custom-engineered for each project. Factory-tested and field-ready.
Why Buyers Choose This Model
Siemens S7-200 SMART PLC
Industry-standard German PLC with 100,000+ hour MTBF. Modbus TCP, RS-485, and Ethernet ports built in. Programmed in TIA Portal — easy local maintenance.

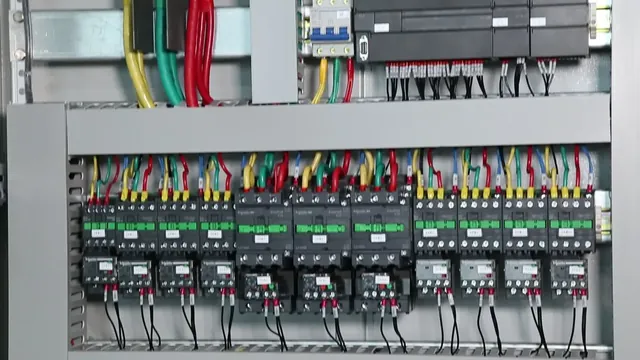

Schneider + CHINT Components
Schneider Electric TeSys contactors and overload relays for motor switching. CHINT moulded-case breakers and miniature circuit breakers for circuit protection. All visible in product photos.
Custom Per-Project Engineering
Cabinet sized to your specific compressor count, evaporator zones, and door interlocks. Not a generic off-the-shelf product — custom-engineered every time.
Factory-Tested, Field-Ready
Each cabinet powered up and tested at full load before shipment. Test certificate, wiring diagrams, and operator manual included.
Electrical Control System Failure Modes
Excursions found too late
Remote monitoring with SMS and email alarms raises the alert when the temperature moves, not at shift change.
Manual operation errors
Integrated PLC cabinets sequence compressors, defrost and fans automatically, with N+1 standby logic.
Audit evidence
HMI touchscreen operation with logged temperature and humidity history; on our Wuhan project, 400+ sensors are logged through the building control system.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| PLC | Siemens SIMATIC S7-200 SMART (default), S7-1200 option |
|---|---|
| Contactors | Schneider Electric TeSys range |
| Breakers | CHINT moulded-case + miniature breakers |
| Communication | Modbus TCP / Ethernet / RS-485 |
| Power Supply | 380V/50Hz, 3-phase, neutral + earth |
| Cabinet Rating | IP54 painted steel (default), IP65 stainless option |
| Cabinet Size | Custom — typical 800×600×2000 mm |
|---|---|
| Ambient Range | 0°C to 45°C |
| Production Lead Time | 25-35 days after design freeze |
| Warranty | 2 years on PLC and components |
| Certification | ISO 9001, CE |
| Origin | Beijing, China |

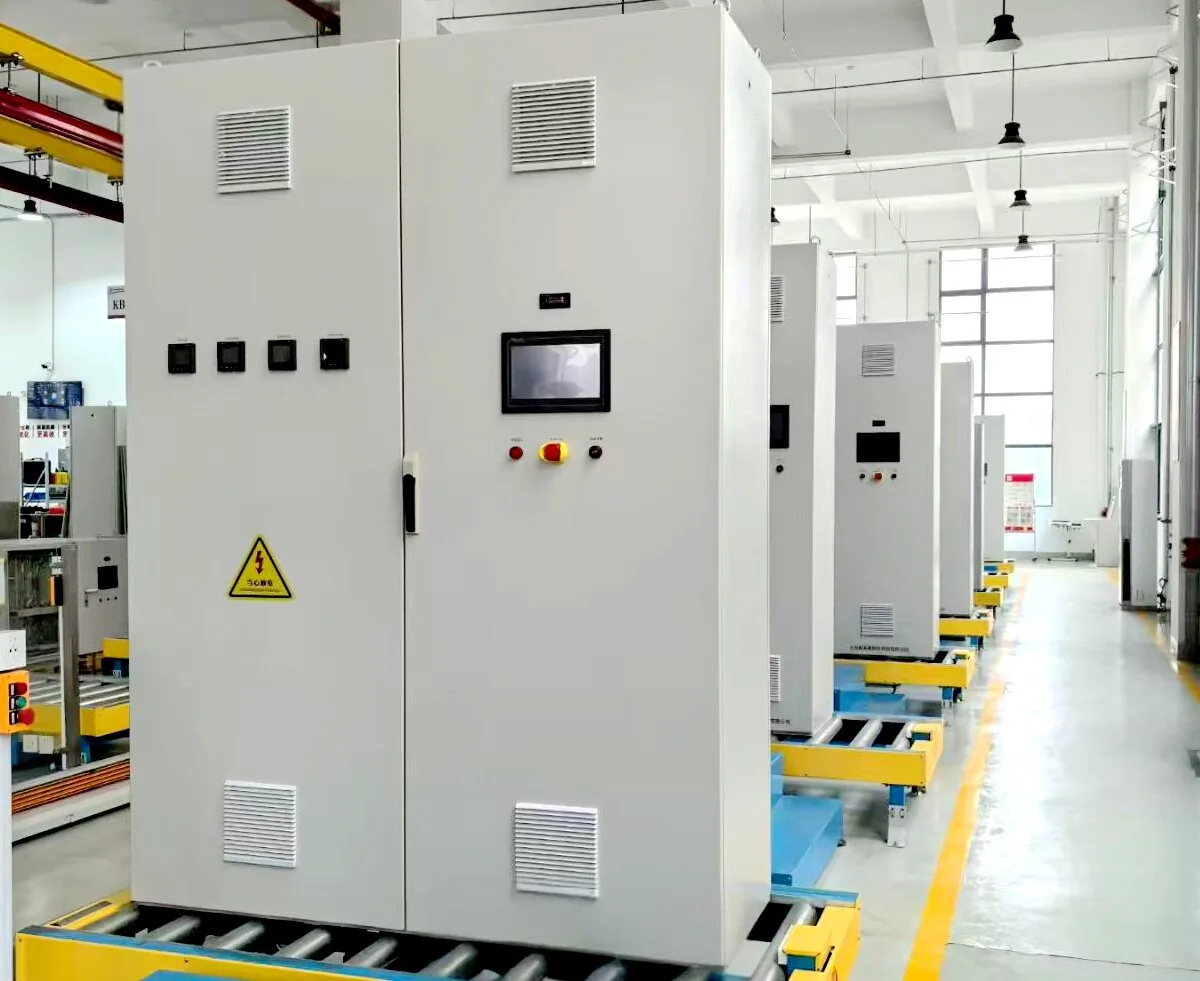

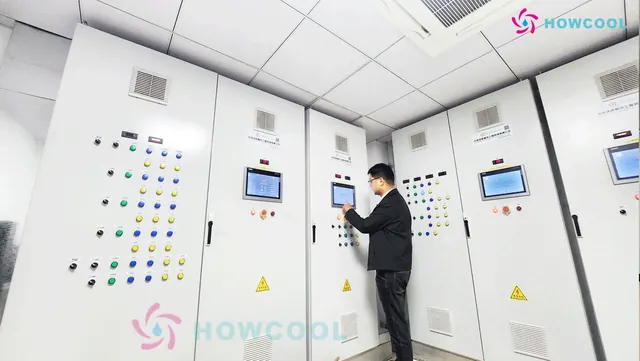

Integrated PLC Control Cabinet In Production And On Site
Sectors Using This Equipment
Cold Chain Logistics
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide...
Pharmaceutical and Biotech
In pharmaceutical storage the temperature record is part of the product. A chamber that held its set point but cannot prove it...
Industrial and Special
Some cold rooms are not about food at all. Lithium battery storage, nuclear plant supplies, laboratory reagents and industrial...
Integrated PLC Control Cabinet Questions
What capacity range does the Integrated PLC Control Cabinet cover?
The standard range is Siemens S7-200 SMART · 380V/3-phase. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
25-35 days after design freeze. Equipment is packed in export wooden cases.
What warranty applies?
2 years on PLC and components, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
Often Specified Together
HMI Touchscreen Operator Station
Touchscreen operator station for cold storage rooms. Real-time temperature, humidity, alarm log, defrost timer override, multi-language interface.
Remote Monitoring & SMS / Email Alarm System
Cloud-based remote monitoring with SMS + email alarms. Watch your cold storage from anywhere — see all temperatures, get alarms, audit data.
IQF Self-Stacking Spiral Freezer
Vertical cold airflow for individual freezing. Ice-crystal formation area ensures even freezing.
PU / PIR Cold Room Panels
Cam-Lock and Plug-in sandwich panels with polyurethane core and color-coated steel. 15-20 year lifetime.
Facilities Built With This Equipment Family
50,000m³ Cold-Chain Logistics — Wuhan Xinpu Fruit
Two-stage 50,000 m³ cold-chain logistics centre for Wuhan Xinpu Fruit — fruit & meat distribution hub.
Cold-Chain Logistics — Seafood 20,000t
20,000-ton seafood refrigeration project. PIR, Freon, PLC control, electric cold storage doors.
Biomedical Cold Storage — Beijing Yizhuang Biotech Park
GMP-compliant pharmaceutical warehouse. 2-8℃ temperature, 45-75% humidity, redundant refrigeration, 24/7 monitoring.
Request A Quotation For The Integrated PLC Control Cabinet
Tell us the room volume, target temperature and product type and we will confirm the model, capacity and delivered price.
