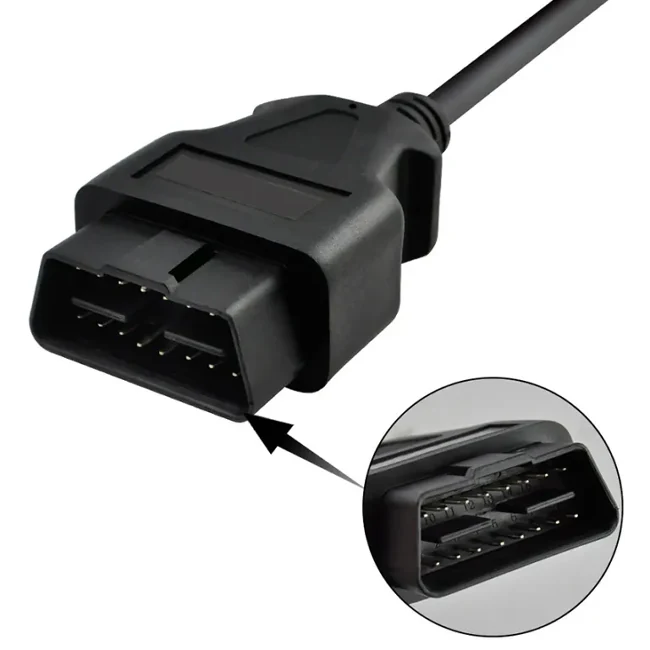

16 Pin J1962 OBD2 Male Connector Extension Cable

A 16 pin J1962 OBD-II male connector assembly with open wire ends, used as the starting point for custom diagnostic and telematics builds. The open end lets the integrator terminate to their own device rather than adapt a finished cable.

Standard J1962 16 pin body mates with any compliant vehicle port
Open wire ends let you terminate to your own device connector
Factory crimped vehicle side removes the least reliable joint from your build
Extension length built to your device mounting position

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Cutting a finished OBD cable leaves an unsupported splice
Hand-assembled J1962 hoods fail after repeated plug cycles
Device side connectors differ from vehicle side and force an adapter

Who It Is For

Telematics device manufacturers
Diagnostic tool builders
Fleet hardware integrators

Application Scenarios

Telematics and tracker device builds
Custom diagnostic tool assemblies
Data logging installations on fleets

Technical Features

J1962 16 pin OBD-II male connector
Open plug wire ends
Custom assembly lengths
Overmoulded connector body

Specifications

Connector	16 pin J1962 OBD-II male
Cable Ends	Open plug wires
Service	Custom assembly manufacture

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Finished OBD extension cables

Open ends let you terminate directly to your device without a splice

Self-assembled connector kits

A moulded vehicle side connector survives daily plug cycles

Use Guide

Confirm which of the 16 circuits your device uses before ordering
Keep power and CAN circuits separated where your device allows
Support the connector body so vehicle vibration does not load the port
