Process Equipment Wiring Harness

Microfit 3.0mm MX3.0 22 Pin Male Harness Wire

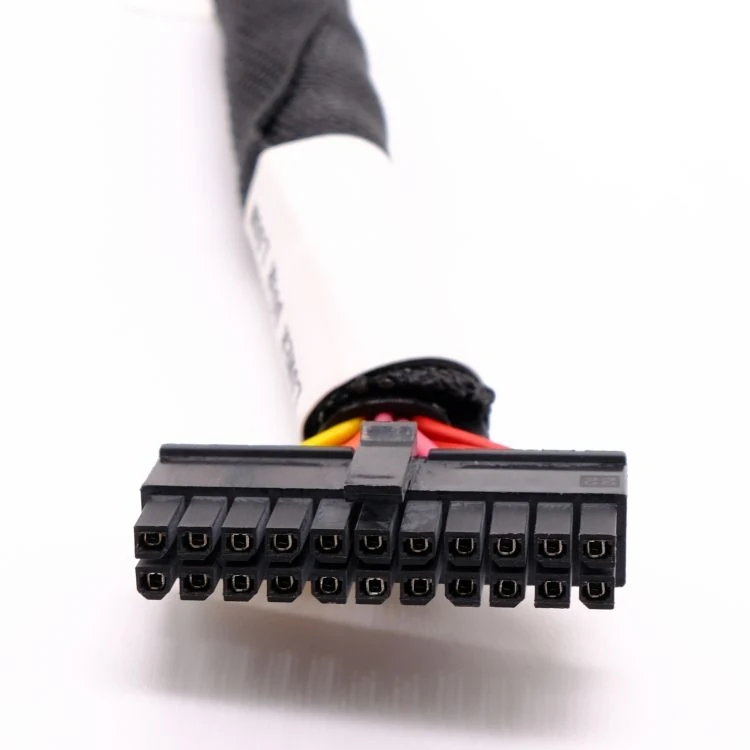

A 22-circuit harness terminated in a Microfit MX3.0 male housing with 2.54mm pitch mating on the board side. It packs a high circuit count into a small footprint, which is what robot joints and control boards need when panel space is already spoken for.

22 circuits in a 3.0mm pitch housing keeps the connector footprint small on crowded boards
UL2464 cable with 22AWG conductors stays flexible inside moving joints
500mm standard length suits internal board-to-board runs without coiling excess cable
Positive-latch housing resists vibration release inside machinery

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Hand-wiring 22 individual leads onto a board is slow and error-prone
Large-pitch connectors will not fit the available board area
Loose connectors back out under continuous machine vibration

Who It Is For

Robotics manufacturers building internal control looms
Energy storage and battery management electronics makers
Medical and appliance electronics assemblers

Application Scenarios

Control boards inside intelligent robots and robotic arms
Energy storage system monitoring and balancing wiring
Medical equipment internal signal routing
Smart home appliance control modules

Technical Features

MX3.0-22P connector with 2.54mm pitch option
UL2464 cable
22AWG conductors
500mm standard length

Specifications

Connector	MX3.0-22P, 2.54mm pitch
Cable	UL2464
Wire Gauge	22AWG
Length	500mm
Circuits	22
MOQ	100 PCS
Sample Lead Time	5 days
Bulk Lead Time	21 days
Product Certificates	UL, RoHS, REACH

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Discrete point-to-point wiring

A pre-terminated 22-circuit housing drops in as one part and tests as one part

Larger pitch rectangular connectors

3.0mm pitch frees board area for components instead of headers

Use Guide

Seat the housing until the latch clicks, then tug the body lightly to confirm retention
Route the harness away from moving joints or add a drag chain where the bend cycles repeat
Keep signal and power circuits on the pin map we supply so the loom stays testable

Other Assemblies In Process Equipment Wiring Harness

Molex KK 396 and JST XH 3.96mm Pitch Cable Assembly - Garfour view 1

Process Equipment Wiring Harness Molex KK 396 and JST XH 3.96mm Pitch Cable Assembly2, 3 and 4 pin VH3.96 housing assemblies for electronics power and control View Specifications

JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 1

Process Equipment Wiring Harness JAE 36 Pin Industrial Control Cable With PVC Insulation36-circuit JAE control cable for internal communication in new energy equipment View Specifications

DB25 Male To Male RS232 Serial Cable 10 Feet - Garfour view 1

Process Equipment Wiring Harness DB25 Male To Male RS232 Serial Cable 10 Feet26AWG tinned copper D-Sub 25 pin serial cable for legacy control and instrument links View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Material Guide

Choosing Between UL2464 UL2514 And UL1007 Cable

Three cable constructions that cover most harness work, and how to tell which one your application needs.

Microfit 3.0mm MX3.0 22 Pin Male Harness Wire FAQ

Can you build the same harness with fewer circuits?

Yes. The MX3.0 family covers lower circuit counts and we build to your pin map.

Is 22AWG fixed?

No. Send the current per circuit and we select the gauge, then confirm it on the sample.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Do you accept small batch orders of Microfit 3.0mm MX3.0 22 Pin Male Harness Wire?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.
