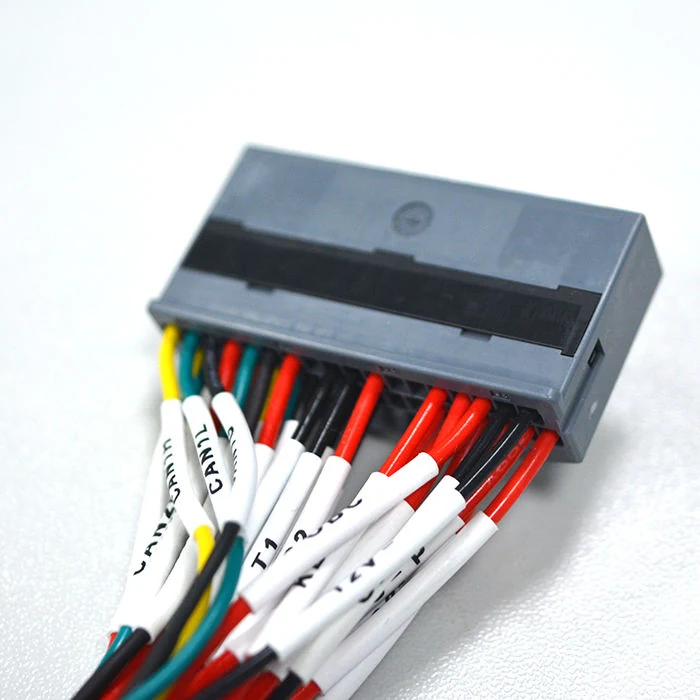

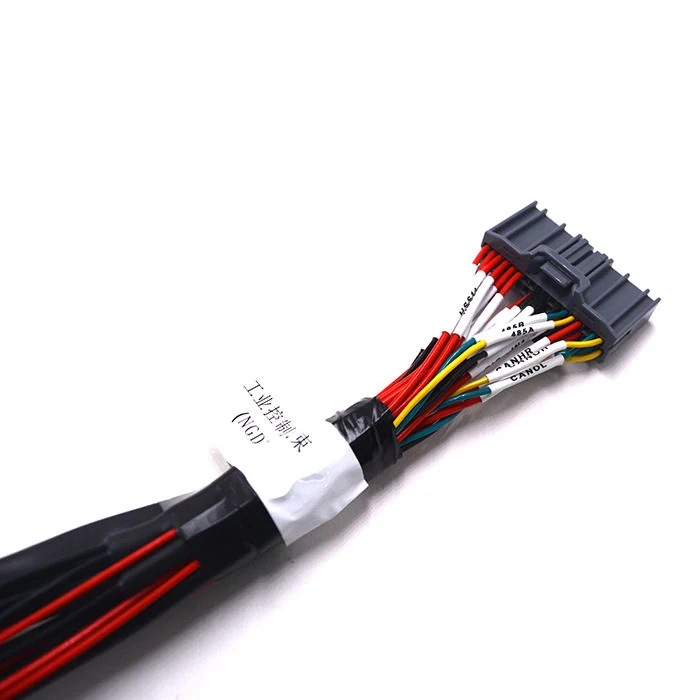

JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 2JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 3JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 4JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 5JAE 36 Pin Industrial Control Cable With PVC Insulation - Garfour view 6
Process Equipment Wiring Harness

JAE 36 Pin Industrial Control Cable With PVC Insulation

A 36-circuit control cable terminated on JAE connectors with PVC insulation, used for internal electronic communication inside new energy and industrial control equipment. High circuit count in one loom keeps signal routing organised where dozens of discrete wires would otherwise share a duct.

  • 36 circuits pre-terminated in one loom instead of dozens of loose leads
  • UL2514 cable with 24AWG conductors suits dense signal routing
  • 800mm standard length covers cabinet-internal runs
  • PVC insulation keeps the build cost sensible for enclosed indoor equipment
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Loose signal wires inside a cabinet are hard to trace and slow to service
  • Manual assembly of 36 circuits invites pin-map mistakes
  • Unlabelled looms cost hours during commissioning

Who It Is For

  • New energy equipment builders
  • Industrial control cabinet integrators
  • Electronics OEMs with high circuit-count backplanes

Application Scenarios

  • Internal communication between control boards in new energy cabinets
  • Industrial control panels with high signal-count backplanes
  • Equipment where sensor and status lines are gathered to one controller

Technical Features

  • JAE connector interface
  • UL2514 cable
  • 24AWG conductors
  • 800mm standard length
  • 36 circuits

Specifications

ConnectorJAE 36 pin
CableUL2514
Wire Gauge24AWG
Length800mm
InsulationPVC
MOQ1000PCS
Sample Lead Time5 days
Bulk Lead Time21 days
Product CertificatesUL, RoHS, REACH

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Discrete signal wires

A 36-circuit loom is installed and continuity-tested as a single part

Ribbon cable

Individual conductors route around obstacles that a flat ribbon cannot clear

Use Guide

  • Confirm the pin map against your controller drawing before first power-up
  • Keep the loom clear of high-current cabling to limit induced noise
  • Label both ends at install so field service can trace circuits quickly
Related Products

Other Assemblies In Process Equipment Wiring Harness

DB25 Male To Male RS232 Serial Cable 10 Feet - Garfour view 1 Process Equipment Wiring Harness DB25 Male To Male RS232 Serial Cable 10 Feet26AWG tinned copper D-Sub 25 pin serial cable for legacy control and instrument links View Specifications Microfit 3.0mm MX3.0 22 Pin Male Harness Wire - Garfour view 1 Process Equipment Wiring Harness Microfit 3.0mm MX3.0 22 Pin Male Harness Wire22-circuit Microfit 3.0mm harness for robots, storage systems and medical electronics View Specifications Molex KK 396 and JST XH 3.96mm Pitch Cable Assembly - Garfour view 1 Process Equipment Wiring Harness Molex KK 396 and JST XH 3.96mm Pitch Cable Assembly2, 3 and 4 pin VH3.96 housing assemblies for electronics power and control View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Material Guide

Choosing Between UL2464 UL2514 And UL1007 Cable

Three cable constructions that cover most harness work, and how to tell which one your application needs.

JAE 36 Pin Industrial Control Cable With PVC Insulation FAQ

Can the circuit count be reduced?

Yes. We build the JAE interface to the circuit count on your drawing.

Is shielded cable available instead of PVC-jacketed UL2514?

Send the noise requirement and we quote a shielded construction on the sample run.

Is a sample confirmed before mass production of JAE 36 Pin Industrial Control Cable With PVC Insulation?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Can JAE 36 Pin Industrial Control Cable With PVC Insulation be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.

Get A Price On JAE 36 Pin Industrial Control Cable With PVC Insulation

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
