Triangle Teeth Iron Clinch Ring/Hoops/staples for Airway Buffs

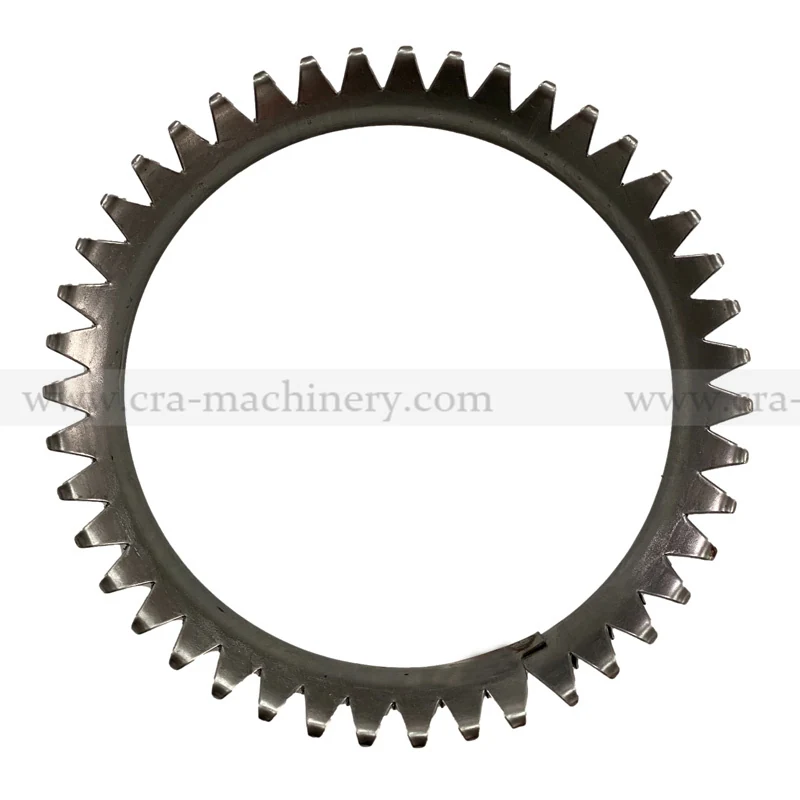

Triangle teeth iron clench rings are made from 1.2 mm thick strong steel plate through 5 to 8 pressing and moulding processes. They are used as center rings for various buffing and polishing wheels including sisal, cotton, and airway wheels. Available in standard diameters of 5 inch (127 mm) and 7...
Product Overview
Triangle teeth iron clench rings are made from 1.2 mm thick strong steel plate through 5 to 8 pressing and moulding processes. They are used as center rings for various buffing and polishing wheels including sisal, cotton, and airway wheels. Available in standard diameters of 5 inch (127 mm) and 7 inch (180 mm), with custom sizes and tooth counts also supported. The rings provide a secure mechanical hold for the wheel body during operation and are designed to withstand high rotational forces.
Key Benefits
- 1.2 mm thick steel plate ensures durability under high-speed rotation
- Triangle teeth design grips fabric and sisal tightly to prevent slippage
- 5 to 8 pressing and moulding steps ensure consistent shape and strength
- Available in 5 inch (127 mm) and 7 inch (180 mm) standard sizes
- Custom diameters and tooth counts available upon request
- Used across sisal, cotton, and airway buffing wheels with consistent performance
Application Scenarios
- A buffing wheel manufacturer replacing hand-assembled or low-strength center rings with a more durable mechanical solution
- A workshop producing airway wheels that need reliable center rings for high-speed polishing applications
- A factory adding custom-sized wheels to its product line and needing matching clench rings
- A supplier sourcing consistent, repeatable iron rings to maintain quality across production batches
Who It Is For
- Buffing and polishing wheel manufacturers
- Abrasive product makers producing airway, sisal, or cotton wheels
- Metal finishing shops using high-volume polishing wheels
- Distributors of buffing wheel components needing consistent raw materials
Problems It Solves
- Manual or low-strength center rings fail under high-speed operation, causing wheel disintegration
- Inconsistent ring dimensions lead to uneven wheel balance and vibration during use
- Lack of standardized clench rings increases setup time and reduces production repeatability
- Custom wheel sizes require custom ring production, which is slow without a dedicated supplier
Technical Features
- Made from 1.2 mm thick strong steel plate
- Formed through 5 to 8 pressing and moulding processes
- Triangle teeth design for secure grip on fabric and sisal
- Standard diameters: 5 inch (127 mm), 7 inch (180 mm)
- Tooth count: 43 pieces per ring, customizable upon request
- Designed for use in sisal, cotton, and airway buffing wheels
Specifications
| Material | 1.2 mm thick strong steel plate |
|---|---|
| Processes | 5 to 8 pressing and moulding steps |
| Tooth Design | Triangle teeth |
| Standard Diameter | 5 inch (127 mm), 7 inch (180 mm) |
| Custom Diameter | Available from 3 inch to 8 inch and other sizes |
| Tooth Count | 43 pieces, customizable |
| Application | Sisal, cotton, and airway buffing wheels |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- 1.2 mm thick strong steel plate
- Finished iron clench rings for buffing wheel centres
Manufacturing And Process
Step 1
Steel plate is cut to size for the ring blank
Step 2
Blank undergoes 5 to 8 pressing and moulding operations to form the ring and teeth
Step 3
Final shaping ensures consistent diameter and tooth alignment
Step 4
Rings are inspected for dimensional accuracy and tooth integrity
Step 5
Rings are packaged and shipped to the buyer for use in wheel assembly
Quality Control
- Each ring is checked for consistent diameter and tooth alignment
- Sample rings tested for strength and tooth grip before shipment
- Custom orders verified against the buyer’s drawing or specification
- All rings produced in the same batch follow the same pressing and moulding sequence
Customization Options
- Custom diameters available from 3 inch to 8 inch and other sizes
- Custom tooth count and tooth shape available upon request
- Custom packaging or labeling available for bulk orders
- Rings can be supplied with or without surface treatment based on buyer requirement
Compared With The Alternatives
| Plastic or low-grade metal center rings | Plastic rings deform under heat and pressure; low-grade metal rings wear faster and may crack during high-speed operation |
|---|---|
| Hand-formed iron rings | Hand-formed rings lack consistent diameter and tooth spacing, leading to unbalanced wheels and shorter lifespan |
| Standard round metal rings without teeth | Round rings without teeth do not grip fabric or sisal securely, leading to slippage during high-load polishing |
Use Guide
- Ensure the ring diameter matches the wheel body's inner diameter before assembly
- Inspect each ring for bent teeth or misalignment before use
- Use only with fabric or sisal that is properly tensioned during wheel formation
- Do not reuse rings that show visible deformation or wear
- Store rings in a dry, flat location to prevent warping or corrosion
Triangle Teeth Iron Clinch Ring/Hoops/staples for Airway Buffs FAQ
What diameters are available?
Standard diameters are 5 inch (127 mm) and 7 inch (180 mm). Custom sizes from 3 inch to 8 inch and other sizes are available.
How many teeth are on each ring?
Each ring has 43 teeth. Custom tooth counts are available upon request.
What material is used to make the rings?
The rings are made from 1.2 mm thick strong steel plate.
Can you make custom sizes and tooth counts?
Yes, custom diameters from 3 inch to 8 inch and custom tooth counts are available.
What is the lead time?
5 to 15 workdays for standard sizes in stock. Custom orders take 15 to 60 workdays depending on complexity and quantity.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Do you offer free sample testing?
Yes, free sample testing is available. You cover freight and supply the specific material for testing.
