Poplin Cotton Fabric for Airway Buffing Wheel
Poplin Cotton Fabric for Airway Buffing Wheel is a plain weave fabric used as the base material in forming ventilated airway buffing wheels. It features crosswise ribs that create a corded surface, providing strength, cutting force, and absorption. This fabric is suitable for mirror finish...
Product Overview

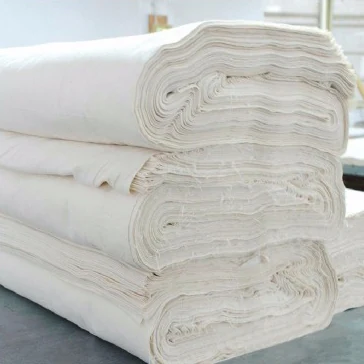

Poplin Cotton Fabric for Airway Buffing Wheel is a plain weave fabric used as the base material in forming ventilated airway buffing wheels. It features crosswise ribs that create a corded surface, providing strength, cutting force, and absorption. This fabric is suitable for mirror finish polishing applications and is available in rolls of 1.3 m or 1.6 m width, 200 meters per roll. It is one of three types offered: Cotton down Rain Proof Fabric, Poplin Cotton Fabric, and Blue Color Treated Fabric.
Key Benefits
- Provides strong structure and consistent ply density in airway buffing wheels
- Offers good absorption and cutting force for mirror finish polishing
- Plain weave construction ensures even folding and stacking during forming
- Available in 1.3 m or 1.6 m width rolls, 200 meters per roll for continuous production
- Used in both soft and resin treated wheel builds, compatible with CRA-800 forming machine
- Reduces material waste during forming due to stable edge and consistent weave
Application Scenarios
- A buffing wheel manufacturer switching from hand-cut fabric to machine-ready rolls for consistent wheel formation
- A polishing line adding mirror finish wheels that require high absorption and controlled cutting force
- A factory using the CRA-800 forming machine and needing a reliable, repeatable fabric input
- A workshop producing airway wheels in volume and seeking a fabric that maintains shape through pressing and trimming
Who It Is For
- Buffing and polishing wheel manufacturers
- Metal finishing shops producing high-precision mirror finish wheels
- Jewellery and sanitary ware polishing workshops requiring consistent material
- Distributors of buffing wheels looking to source raw materials in bulk
Problems It Solves
- Manual fabric handling leads to inconsistent ply alignment and uneven wheel density
- Low absorption or weak fabric causes poor polishing performance and early wear
- Inconsistent fabric width or roll length disrupts machine feeding and increases downtime
- Lack of a stable weave structure results in fraying or delamination during forming and pressing
- Using non-corded fabric reduces cutting force and finish quality on stainless steel and chrome surfaces
Technical Features
- Plain weave construction with crosswise ribs for a corded surface
- Available in 1.3 m or 1.6 m width, 200 meters per roll
- Suitable for both soft and resin treated fabric applications
- Strong warp and weft construction supports high ply counts in airway wheels
- Ribs run from selvage to selvage, ensuring consistent folding during forming
- No chemical coating or treatment unless specified as Blue Color Treated Fabric
Specifications
| Material Type | Poplin Cotton Fabric |
|---|---|
| Weave | Plain weave with crosswise ribs |
| Width | 1.3 m or 1.6 m |
| Length per Roll | 200 meters |
| Fiber Content | Cotton or cotton blend |
| Surface | Corded, ridged structure |
| Use Case | Base material for airway buffing wheels |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Poplin Cotton Fabric (plain weave, corded surface)
- Cotton down Rain Proof Fabric
- Blue Color Treated Fabric
- Resin treated versions of the above (if specified)
- Iron claw or iron plate centres for wheel assembly
Manufacturing And Process
Step 1
Receive Poplin Cotton Fabric in 1.3 m or 1.6 m width rolls, 200 meters per roll
Step 2
Feed the roll into a CRA-500 bias cutting and rolling machine to prepare bias-cut strips
Step 3
Use the bias-cut fabric in a CRA-800 forming machine to fold and clamp into a wheel body
Step 4
Transfer the formed body to a CRA-600 press for moulding and densification
Step 5
Trim the edge on a CRA-700 machine to define the running face
Step 6
Assemble the finished wheel with an iron claw or iron plate centre
Quality Control
- Fabric roll width and length verified before shipment
- Sample fabric tested for tensile strength and weave consistency
- Free sample testing available on buyer's own fabric before purchase
- Rolls inspected for edge fraying, width deviation, and weave uniformity
- Documentation provided on fabric type and intended use for each batch
Customization Options
- Available in 1.3 m or 1.6 m width based on buyer's forming machine input
- Can be supplied as plain, rain-proof treated, or blue color treated variant
- Roll length can be adjusted if required for specific production runs
- Packaging tailored to shipping and storage needs (e.g., cardboard core, plastic wrap)
Compared With The Alternatives
| Cotton down Rain Proof Fabric | Offers water resistance but may have lower absorption than plain poplin; use when moisture exposure is expected |
|---|---|
| Blue Color Treated Fabric | Colored for identification; may have slight resin treatment affecting absorption; use for traceability or branding |
| Standard T-shirt cotton | Less structured and weaker in tension; not suitable for high-precision airway wheel forming |
Use Guide
- Confirm fabric is cut on the bias before feeding into the CRA-800 forming machine
- Use the 1.3 m or 1.6 m width roll to match the input width of the forming machine
- Avoid over-tensioning the roll during feeding to prevent edge distortion
- Store rolls in a dry, flat area to prevent creasing or warping
- Test a sample roll with the forming machine before full production to verify feeding stability
Poplin Cotton Fabric for Airway Buffing Wheel FAQ
What is the width and length of each roll?
Available in 1.3 m or 1.6 m width, 200 meters per roll.
Is this fabric suitable for mirror finish polishing?
Yes, its strong structure and absorption make it ideal for mirror finish airway wheels.
Can I use this fabric with resin treatment?
Yes, it is compatible with resin treated versions; contact us for treated fabric options.
What are the differences between the three types?
Cotton down Rain Proof Fabric has water resistance; Poplin Cotton is standard; Blue Color Treated Fabric is dyed for identification.
How is the fabric packaged?
Each roll is wrapped in plastic and placed on a cardboard core for shipping and storage.
Can I get a sample before ordering?
Yes, free sample testing is available. You cover freight and send your specific material for testing.
Is this fabric used with any specific machine?
Yes, it is used in the CRA-800 forming machine as the base material for airway buffing wheels.
Get A Price On The Poplin Cotton Fabric for Airway Buffing Wheel
Send the quantity, the diameters and the material you run. We answer with price, lead time and packing within 24 hours.
