Iron Plate/Steel Ring for Making Airway Buffing Wheel
The Iron Plate/Steel Ring is a centre component for airway buffing wheels, made from strong steel plate through 5 to 8 pressing and moulding processes. It is used in sisal, cotton and airway buffing wheels. The ring has a diameter range of 3 to 8 inches and features 43 teeth, with options for round...
Product Overview

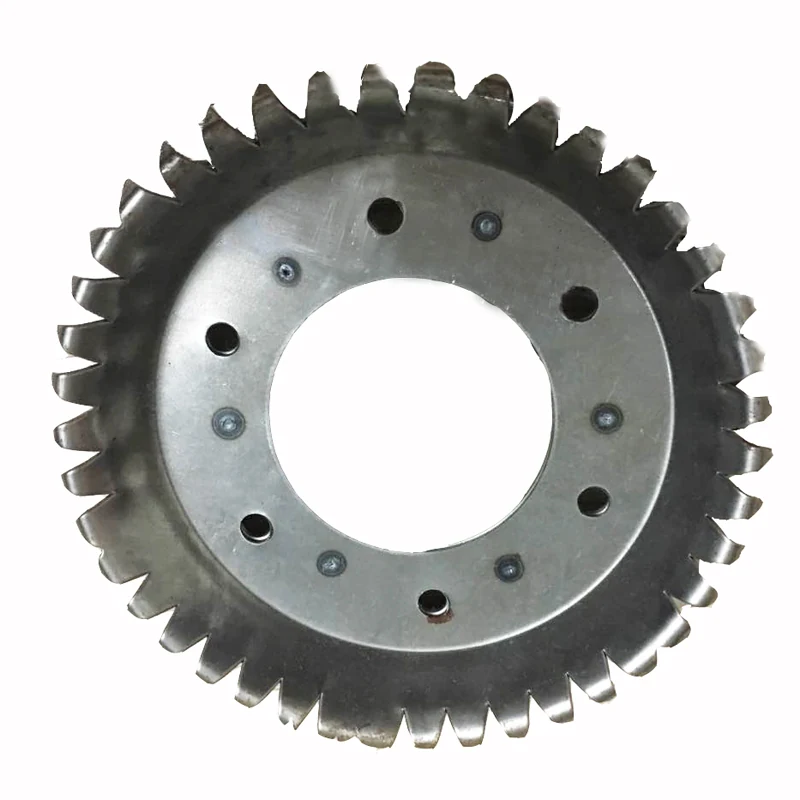

The Iron Plate/Steel Ring is a centre component for airway buffing wheels, made from strong steel plate through 5 to 8 pressing and moulding processes. It is used in sisal, cotton and airway buffing wheels. The ring has a diameter range of 3 to 8 inches and features 43 teeth, with options for round or hexagon holes in 2.5 inch and 3 inch sizes. It is designed to work with the CRA-500, CRA-800, CRA-600 and CRA-700 machines in a complete buffing wheel production line.
Key Benefits
- Provides a consistent, durable centre for airway buffing wheels across multiple production runs
- Supports 3 to 8 inch wheel diameters, covering most standard buffing wheel sizes
- Compatible with round and hexagon hole centres, including 2.5 inch and 3 inch options
- Can be fitted with wood, paper or plastic plates to reduce the effective hole size
- Made through 5 to 8 pressing and moulding steps for structural integrity
- Reduces manual handling and variation in wheel centre alignment during forming
Application Scenarios
- A buffing wheel manufacturer replacing hand-fitted centres with precision steel rings
- A workshop producing custom-sized airway wheels needing consistent centre geometry
- A factory integrating a CRA-800 forming machine and requiring matching steel ring tooling
- A distributor sourcing raw materials in bulk for in-house wheel production
Who It Is For
- Buffing and polishing wheel manufacturers
- Metal finishing shops producing their own wheels in volume
- Distributors supplying buffing wheel components to regional markets
- Wood and board plants using steel rings as part of their internal tooling
Problems It Solves
- Manual centre insertion leads to misalignment and inconsistent wheel balance
- Inconsistent centre dimensions cause variation in ply spacing during forming
- Lack of standardised steel rings increases setup time and tooling costs
- Using mismatched or low-strength centres results in wheel deformation under pressure
- No standard hole size across suppliers complicates machine compatibility
Technical Features
- Made from strong steel plate through 5 to 8 pressing and moulding processes
- 43 teeth standard, with custom tooth count available
- Diameter range: 3 inch to 8 inch, with custom sizes possible
- Hole types: round hole, hexagon hole, 2.5 inch and 3 inch standard
- Can be fitted with wood, paper or plastic plates to reduce hole size
- Designed to interface directly with CRA-800, CRA-600, CRA-500 and CRA-700 machines
Specifications
| Model | Iron Plate/Steel Ring for Airway Buffing Wheel |
|---|---|
| Diameter Range | 3 inch to 8 inch |
| Standard Teeth | 43 PCS |
| Hole Type | Round, Hexagon |
| Standard Hole Sizes | 2.5 inch, 3 inch |
| Material | Strong steel plate |
| Manufacturing Process | 5 to 8 pressing and moulding steps |
| Customization | Available for diameter, teeth, hole size |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Strong steel plate
- Wood plate (for hole size reduction)
- Paper plate (for hole size reduction)
- Plastic plate (for hole size reduction)
Manufacturing And Process
Step 1
Steel plate is pressed and moulded through 5 to 8 stages to form the ring
Step 2
Teeth are formed and holes are punched to match standard or custom sizes
Step 3
Ring is fitted with a wood, paper or plastic plate if a smaller hole is required
Step 4
Ring is loaded into the CRA-500 bias cutter or CRA-800 forming machine
Step 5
The ring acts as the centre during folding and indexing on the CRA-800
Step 6
After forming, the wheel is pressed on the CRA-600 and trimmed on the CRA-700
Quality Control
- Each ring is checked for consistent diameter, hole size and tooth alignment
- Sample rings tested before shipment to verify fit with CRA-800 and CRA-600 machines
- Free sample testing available on buyer’s own fabric or sisal before purchase
- Production batches inspected for uniformity in thickness and edge finish
Customization Options
- Custom diameters outside 3 to 8 inch range available
- Custom tooth count available upon request
- Custom hole size and shape available
- Custom plate material (wood, paper, plastic) for hole reduction
- Can be supplied with or without additional plate material
Compared With The Alternatives
| Iron Claw Centres | Iron claws are used in smaller wheels and are not interchangeable with steel rings; steel rings are better suited for larger 3 to 8 inch wheels |
|---|---|
| Plastic Centres | Plastic centres are lighter and cheaper but less durable under high pressure; steel rings maintain shape during pressing and forming |
| Hand-Fitted Metal Rings | Hand-fitted rings vary in size and alignment; this steel ring is precision formed and repeatable across batches |
Use Guide
- Confirm the ring diameter matches the target wheel size before forming
- Use wood, paper or plastic plates only if reducing the hole size is required
- Ensure the hole type (round or hexagon) matches the machine’s clamping system
- Inspect the ring for burrs or deformation before loading into the CRA-800
- Keep a spare set of rings on hand for quick changeover between wheel sizes
Iron Plate/Steel Ring for Making Airway Buffing Wheel FAQ
What is the MOQ for the Iron Plate/Steel Ring?
500 pieces per model.
How long is your delivery time?
5 to 15 workdays if in stock; 15 to 60 workdays if not in stock, depending on quantity and model.
Do you test samples for free?
Yes, sample testing is free. You cover freight and provide the specific material to be used.
What is your terms of payment?
Payment up to 10000 USD is 100% in advance. Above 10000 USD is 30% T/T deposit with balance before shipment.
What is your after-sales service?
Training on installation and operation, lifetime free consulting, and response within 0-24 hours.
What is your pre-sales service?
Inquiry support, sample testing, technology solution, and factory visit for customer verification.
How long is your after-sales feedback time?
Within 0 to 24 hours.
Get A Price On The Iron Plate/Steel Ring for Making Airway Buffing Wheel
Send the quantity, the diameters and the material you run. We answer with price, lead time and packing within 24 hours.
