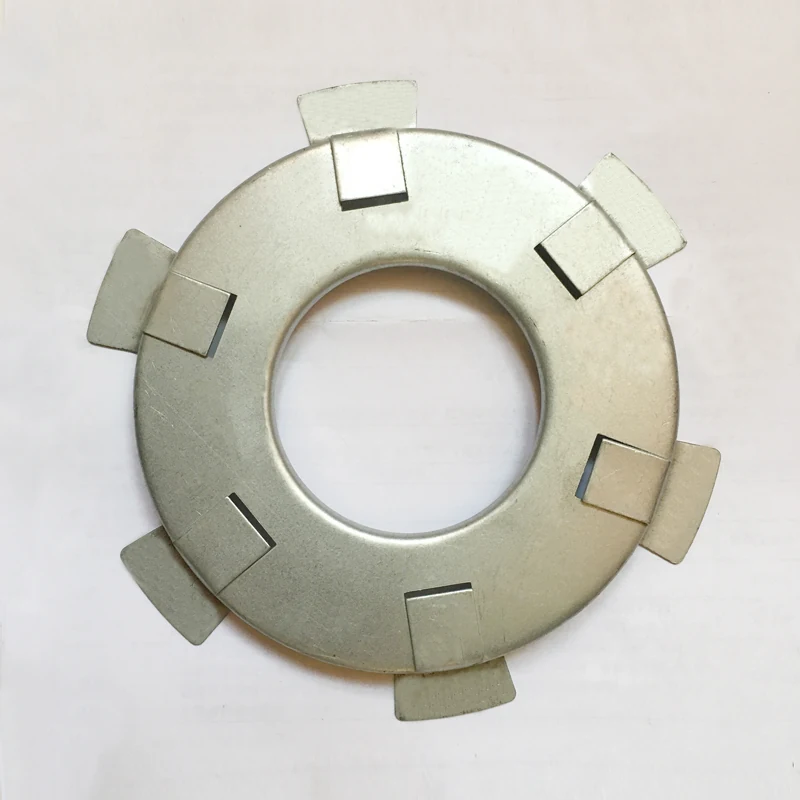

Iron Plate for Airway Polishing Wheel
The Iron Plate For Airway Polishing Wheel is a steel centre ring made through 5 to 8 pressing and moulding processes. It fits as the core for sisal, cotton, and airway buffing wheels. Available in outer diameters from 3 inches to 9 inches, with inner holes of 1/2 inch, 1 inch, 2 inch, or custom...
Product Overview
The Iron Plate For Airway Polishing Wheel is a steel centre ring made through 5 to 8 pressing and moulding processes. It fits as the core for sisal, cotton, and airway buffing wheels. Available in outer diameters from 3 inches to 9 inches, with inner holes of 1/2 inch, 1 inch, 2 inch, or custom sizes. It is used in the CRA-800 forming, CRA-600 pressing, CRA-500 cutting, and CRA-700 trimming machines as part of a full buffing wheel production line.
Key Benefits
- Provides a durable, consistent centre for airway, sisal and cotton buffing wheels
- Supports multiple wheel sizes from 3 to 9 inches outer diameter
- Matches standard iron claw and plate centres used in CRA-800 and CRA-600 machines
- Made through 5 to 8 pressing and moulding steps for structural stability
- Reduces wheel core failure during high-speed polishing operations
- Enables repeatable wheel assembly when used with automated forming and pressing machines
Application Scenarios
- A buffing wheel factory replacing hand-fitted or low-quality cores with consistent steel plates
- A manufacturer adding airway or sisal wheels to their product range and needing reliable centres
- A workshop upgrading from manual wheel assembly to a mechanised line using CRA-800 and CRA-600
- A distributor sourcing core components in bulk to support their own buffing wheel production
Who It Is For
- Buffing and polishing wheel manufacturers
- Abrasive product makers producing ventilated airway wheels
- Metal finishing shops that produce their own polishing wheels
- Distributors building in-house wheel production to reduce import dependency
Problems It Solves
- Hand-made or low-grade cores cause wheel imbalance and early failure during use
- Inconsistent core dimensions lead to misalignment in forming and pressing machines
- Manual core fitting slows down production and increases labour cost
- Lack of standardised cores makes it hard to scale production across shifts or operators
- Poor core strength leads to wheel disintegration under high pressure or speed
Technical Features
- Made from strong steel plate using 5 to 8 pressing and moulding processes
- Outer diameter range from 3 inches to 9 inches, custom sizes available
- Inner hole options: 1/2 inch, 1 inch, 2 inch, or custom dimensions
- Designed to fit iron claw or iron plate tooling used in CRA-800 and CRA-600 machines
- Flat, smooth surface for even pressure distribution during pressing
- No sharp edges or burrs that could damage fabric or cause wear during assembly
Specifications
| Material | Strong steel plate |
|---|---|
| Processes | 5 to 8 pressing and moulding steps |
| Outer Diameter Range | 3" to 9" |
| Inner Hole Options | 1/2", 1", 2", or custom |
| MOQ | 500 pieces per model |
| Delivery Time | 5–15 workdays (in stock), 15–60 workdays (not in stock) |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Strong steel plate
- Custom outer diameter and inner hole sizes
Manufacturing And Process
Step 1
Steel plate is cut to size and fed into a series of pressing and moulding machines
Step 2
The plate is shaped into the final ring form with consistent outer diameter and inner hole
Step 3
Final inspection ensures no burrs or dimensional deviations
Step 4
The finished iron plate is loaded into the CRA-800 forming machine for wheel assembly
Step 5
The wheel body is folded onto the plate and then pressed on the CRA-600
Step 6
Final edge trimming on the CRA-700 gives the wheel its running face
Quality Control
- Each iron plate is checked for dimensional accuracy after the final moulding step
- Sample plates tested before shipment to verify fit with CRA-800 and CRA-600 tooling
- Free sample testing available using buyer's own fabric or sisal
- Inspection ensures no burrs or warping that could affect wheel assembly
Customization Options
- Custom outer diameters from 3 to 9 inches, or beyond with approval
- Custom inner hole sizes including round or hexagon shapes
- Special surface treatments available upon request
- Packaging tailored to shipping volume and destination
Compared With The Alternatives
| Iron Claw Centres | Iron plates offer a flat, stable base for high-pressure pressing; claws are used in some models but are not interchangeable with plate tooling |
|---|---|
| Plastic or Aluminium Cores | Steel plates are stronger and more durable under high-speed polishing; plastic or aluminium cores may deform or fail under repeated pressure |
| Hand-Forged or Reused Cores | Hand-made cores vary in thickness and roundness, leading to inconsistent wheel performance; steel plates ensure repeatable geometry across batches |
Use Guide
- Confirm the iron plate outer diameter matches the target wheel size before forming
- Ensure the inner hole matches the tooling used in the CRA-800 or CRA-600 machine
- Inspect each plate for burrs or warping before loading into the forming machine
- Store plates in a dry, flat area to prevent deformation during handling
- Contact us on WhatsApp for the English operation video if the operator is new to wheel assembly
Iron Plate for Airway Polishing Wheel FAQ
What is the MOQ for this iron plate?
MOQ is 500 pieces per model.
How long is your delivery time?
Generally 5 to 15 workdays if in stock. Otherwise 15 to 60 workdays depending on quantity and model.
Do you test sample for free?
Yes, we test samples for free. You cover freight and provide the specific materials.
What is your terms of payment?
Payment up to 10000 USD is 100% in advance. Above 10000 USD is 30% T/T deposit with balance before shipment.
What is your after-sales service?
Training on installation and operation, lifetime free consulting, and response within 0–24 hours.
What is your pre-sales service?
Inquiry support, sample testing, technology solution, and factory visit for customer evaluation.
How long is your after-sale feedback time?
Within 0 to 24 hours.
Get A Price On The Iron Plate for Airway Polishing Wheel
Send the quantity, the diameters and the material you run. We answer with price, lead time and packing within 24 hours.
