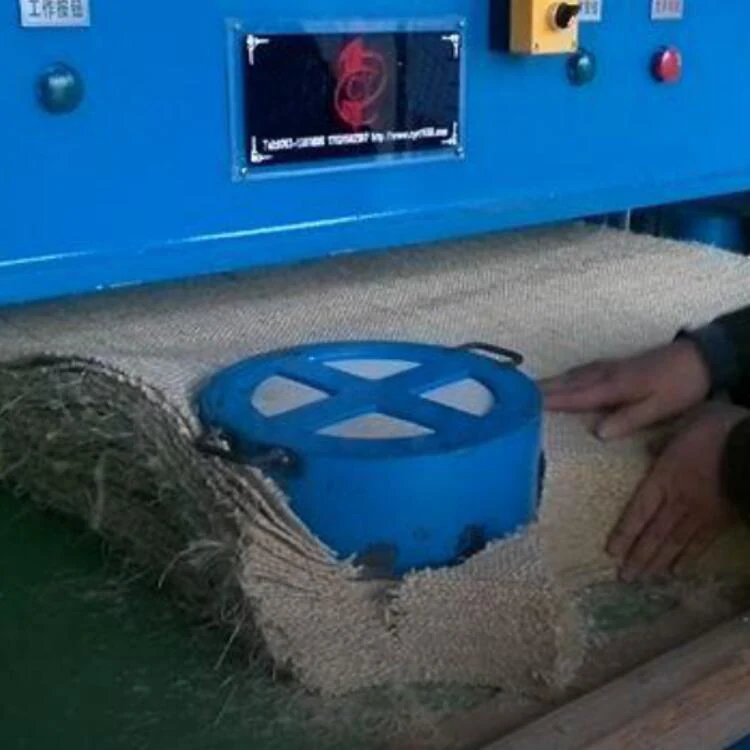

Four-column Hydraulic Press Sisal Cloth Cutting Machine XLJP3-350
The XLJP3-350 is a four-column hydraulic press designed for cutting raw materials used in sisal buffing wheels, including sisal cloth and sisal rolls. It supports up to 30 layers of material and handles diameters up to 550 mm. The working bench feeds and retreats automatically, reducing manual...
Product Overview
The XLJP3-350 is a four-column hydraulic press designed for cutting raw materials used in sisal buffing wheels, including sisal cloth and sisal rolls. It supports up to 30 layers of material and handles diameters up to 550 mm. The working bench feeds and retreats automatically, reducing manual handling. It uses interchangeable cutting molds for different shapes and sizes. This machine is part of the buffing wheel production line, following bias fabric preparation and preceding forming and pressing steps.
Key Benefits
- Automated feeding and retreating of the working bench reduces labor and cycle time
- Supports up to 30 layers of sisal cloth in a single cut, improving material throughput
- Handles raw material diameters up to 550 mm, suitable for large buffing wheel production
- Interchangeable cutting molds allow quick changeover between different wheel shapes and sizes
- Hydraulic pressure adjustable from 20T to 100T for consistent cutting across material types
- High accuracy and efficiency in raw material preparation for sisal buffing wheels
Application Scenarios
- A buffing wheel factory upgrading from manual cutting to automated raw material preparation
- A workshop producing large sisal wheels needing consistent, repeatable cuts across multiple layers
- A manufacturer adding a new range of sisal buffing wheels and needing a reliable cutting step
- A production line integrating with the CRA-500 bias cutter and CRA-800 forming machine, requiring a precise cutting stage
Who It Is For
- Buffing and polishing wheel manufacturers
- Sisal buffing wheel raw material preparers
- Metal finishing shops producing their own sisal buffs in volume
- Wood and board plants using sisal for industrial applications
Problems It Solves
- Manual cutting of sisal cloth layers leads to inconsistent thickness and alignment between cuts
- Hand feeding and pressing increases cycle time and operator fatigue
- Lack of pressure control causes incomplete or uneven cuts on thick or layered material
- Changing shapes or sizes requires custom jigs or retooling, slowing down production changes
Technical Features
- Four-column hydraulic structure ensures even pressure distribution across the cutting surface
- Adjustable stroke range of 100 mm allows control over cut depth for different material thicknesses
- Interchangeable cutting molds support various wheel shapes and sizes
- Automatic feeding and retreating of the working bench reduces manual handling
- Top press board to bench distance of 300 mm allows clearance for large material stacks
- Punching table size of 1500 mm x 600 mm x 1500 mm provides stable base for large cuts
Specifications
| Model | XLJP3-350 |
|---|---|
| Cutting Pressure | 20T to 100T |
| Maximum Cutting Diameter | 550 mm |
| Max Layers of Sisal Cloth | 30 PCS |
| Power | 2.2 kW |
| Working Bench Size | 55 mm to 150 mm |
| Top Press Board to Bench | 300 mm |
| Stroke Adjusting Range | 100 mm |
| Punching Table Size | 1500 mm x 600 mm x 1500 mm |
| Feeding Bench Size | 6500 mm x 1700 mm x 1000 mm |
| Net Weight | 2500 kg |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Sisal cloth in rolls or sheets
- Sisal rolls with varying thickness and density
- Prepared bias-cut fabric for sisal buffing wheels
- Interchangeable cutting molds for different wheel shapes
Manufacturing And Process
Step 1
Prepare sisal cloth or rolls to the required size and stack up to 30 layers
Step 2
Select and install the appropriate cutting mold for the target wheel shape
Step 3
Position the stack on the working bench and align with the mold
Step 4
Engage the hydraulic press to lower the top plate and cut through all layers
Step 5
Automatically retract the bench to remove the cut piece and prepare for next cycle
Step 6
Send the cut pieces to the forming machine (CRA-800 or CRA-300) for wheel assembly
Quality Control
- Hydraulic pressure maintained between 20T and 100T ensures consistent cut quality
- Sample cuts tested before shipment to verify alignment and edge sharpness
- Free sample testing available using the buyer's own sisal material
- Installation and operation training provided to ensure correct mold setup and pressure calibration
Customization Options
- Cutting molds supplied in different sizes and shapes based on the buyer's wheel designs
- Voltage and phase configured for the destination market
- Feeding bench length can be adjusted for larger material handling needs
- Machine can be quoted as part of a full production line including CRA-500, CRA-800, CRA-600, and CRA-700
Compared With The Alternatives
| Manual Sisal Cloth Cutting | Manual cutting requires multiple workers, lacks pressure consistency, and cannot handle 30 layers efficiently |
|---|---|
| Single-column Hydraulic Press | Single-column presses lack stability and even pressure distribution across large cutting areas |
| CRA-500 Bias Cutting and Rolling Machine | The CRA-500 prepares bias-cut fabric; the XLJP3-350 cuts pre-cut rolls into usable shapes for forming |
Use Guide
- Ensure the sisal cloth stack does not exceed 30 layers to maintain cut quality
- Use the correct cutting mold for the target wheel shape and size before starting production
- Set hydraulic pressure according to material thickness—higher pressure for dense or thick layers
- Keep the feeding bench clear of debris to prevent misalignment during automatic feeding
- Contact us on WhatsApp for the English operation video if the operator is new to hydraulic presses
Four-column Hydraulic Press Sisal Cloth Cutting Machine XLJP3-350 FAQ
What is the maximum diameter of sisal cloth this machine can cut?
Up to 550 mm outer diameter.
How many layers of sisal cloth can it cut at once?
Up to 30 layers in a single press cycle.
What is the cutting pressure range?
Adjustable from 20 tons to 100 tons.
Can I use this machine for materials other than sisal?
It is designed for sisal cloth and sisal rolls; other materials may require mold and pressure adjustments.
What is the lead time for delivery?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Can you test my own sisal material before I buy?
Yes, free sample testing is available. You cover freight and send the specific material you plan to use.
