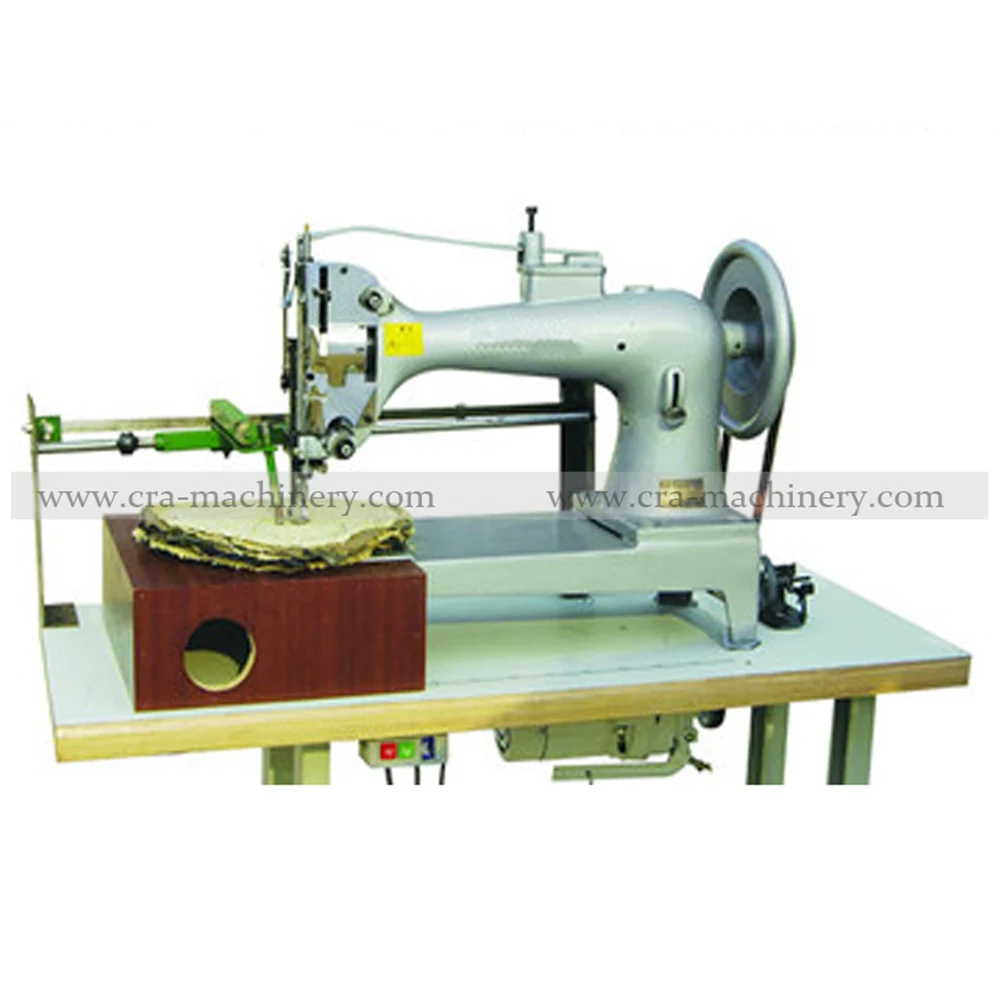

SG01M Buffing Wheel Spiral Stitch Sewing Machine with Low Cost
The SG01M is a semi-automated spiral stitch sewing machine designed for buffing and polishing wheel manufacturers. It handles thick, medium, and thin sisal and fabric materials with consistent stitch quality. The machine uses a single-needle, oscillating shuttle system with synchronized upper and...
Product Overview
The SG01M is a semi-automated spiral stitch sewing machine designed for buffing and polishing wheel manufacturers. It handles thick, medium, and thin sisal and fabric materials with consistent stitch quality. The machine uses a single-needle, oscillating shuttle system with synchronized upper and lower feeding to form a 2-thread lock stitch. It is built for low cost and high efficiency, supporting the 'One-Worker-Multiple-Machine' concept. It is used in the sewing step of buffing wheel production, following fabric or sisal preparation and preceding pressing or trimming.
Key Benefits
- Reduces labor cost by enabling one operator to manage multiple machines
- Sews thick, medium, and thin materials without skipping stitches or puckering
- Maintains alignment between upper and lower layers during long or viscous sewing runs
- Adjustable needle position and three-part tooling for dust-proof strip sewing
- Lifting feeding tooth and alternation presser keep material stable during sewing
- Connecting-bar take-up mechanism improves arm shaft speed and reduces noise
Application Scenarios
- A buffing wheel factory replacing manual sewing benches with semi-automated machines
- A manufacturer adding spiral-stitch wheels to their product line without high capital outlay
- A workshop with limited space needing a compact, low-cost sewing solution
- A production line upgrading from hand sewing to machine-assisted sewing for consistency
Who It Is For
- Buffing and polishing wheel manufacturers
- Small to mid-sized abrasive product makers
- Workshops producing custom or low-volume buffing wheels
- Factories aiming to reduce labor cost in the sewing stage
Problems It Solves
- Manual sewing leads to inconsistent stitch quality and high labor cost
- Hand sewing cannot keep layer alignment during long or viscous runs
- Sewing thick material causes skipped stitches; thin material causes puckering
- Lack of machine support limits production scalability and repeatable output
- High-cost machines are not viable for low-margin production environments
Technical Features
- Single-needle, oscillating shuttle with 2-thread lock stitch
- Upper and lower synchronized feeding system
- Lifting feeding tooth and alternation presser for material stability
- Manual presser can be moved forward, backward, left, and right for positioning
- Adjustable needle position for dust-proof strip and three-part sewing
- Connecting-bar take-up mechanism for faster arm shaft speed and quieter operation
Specifications
| Model | SG01M Buffing Wheel Spiral Stitch Sewing Machine |
|---|---|
| Sewing Speed | 800 stitches per minute |
| Needling Distance | Standard 5 mm, customizable |
| Electric Motor Power | 550 W, 1400 rpm |
| Presser Lifting Range | 18 to 25 mm |
| Operating Space | 200 mm x 420 mm |
| Needle Model | 7CM (200/230/300 NM) |
| Net Weight of Head Section | 78 kg |
| Needle Pole Travel | 58 mm |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Thick sisal fabric
- Medium thickness fabric for buffing wheels
- Thin fabric for lighter wheels
- Dust-proof strips for packaging
- Sisal and fabric combinations used in buffing wheel construction
Manufacturing And Process
Step 1
Prepare the fabric or sisal stack for sewing, following bias cutting or rolling
Step 2
Load the material into the machine and position the presser foot
Step 3
Set the needle position and adjust the feeding mechanism for the material thickness
Step 4
Engage the clutch motor and begin sewing with the connecting-bar take-up mechanism
Step 5
Use manual presser movement to reposition material during long or complex runs
Step 6
Complete the spiral stitch and remove the sewn wheel for pressing or trimming
Quality Control
- Stitch consistency checked during sample runs before shipment
- Free sample testing available on buyer's own material
- Clutch motor ensures smooth start and stop without thread breakage
- Lifting feeding tooth and alternation presser tested for alignment stability
- Noise and vibration levels monitored during operation to ensure long-term reliability
Customization Options
- Needling distance can be customized beyond the standard 5 mm
- Needle model and position adjusted for specific material thickness
- Power supply voltage configured for destination market (e.g. 220 V or 380 V)
- Machine can be quoted as part of a full production line including CRA-500, CRA-800, CRA-600, CRA-700
Compared With The Alternatives
| Fully Automated Sewing Machine | The SG01M is semi-automated and lower cost; choose it for budget-conscious production, not for high-speed, fully automated lines |
|---|---|
| Manual Sewing by Hand | Hand sewing is slower, inconsistent, and requires more labor; the SG01M reduces labor cost and improves stitch uniformity |
| CRA-900 High-Speed Sewing Machine | The CRA-900 is fully automated and faster; the SG01M is a low-cost alternative for smaller or mid-sized operations |
Use Guide
- Ensure the fabric or sisal is properly aligned before starting the sewing process
- Adjust the needle position and presser foot for the material thickness to avoid puckering or skipping
- Use the manual presser movement to reposition the material during long or curved stitches
- Keep the clutch motor engaged for smooth start and stop during continuous runs
- Contact us on WhatsApp for the English operation video if the operator is new to spiral stitching
SG01M Buffing Wheel Spiral Stitch Sewing Machine with Low Cost FAQ
What is the sewing speed of the SG01M?
800 stitches per minute.
Can it sew thick and thin materials?
Yes, it handles thick, medium, and thin sisal and fabric without skipping stitches or puckering.
Is the machine fully automatic?
No, it is semi-automated. One operator manages the feeding and positioning, but the stitching is machine-driven.
What is the power supply?
Standard 220 V, 50 Hz. Customizable for other voltages.
Can I test my own material before buying?
Yes, free sample testing is available. You cover freight and send the material you plan to use.
What is the lead time?
5 to 15 workdays if in stock; 15 to 60 workdays for made to order, depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD is 30% T/T deposit with balance before shipment.
