3 AXLES of ALUMINUM ALLOY OIL TANKER SEMI TRAILER for SALES

A 3-axle aluminum alloy oil tanker semi-trailer with a 12000mm x 2500mm x 3900mm tank body, built for transporting liquids such as crude oil, fuel, and chemicals. The tank is constructed from Q235A steel (5mm) with aluminum alloy end plates (6mm) and ball-shaped design. It features three FUWA brand 13T axles, mechanical suspension with 6 sets of 90mm x 13mm leaf springs, and 12R22.5 double star brand super single tires. Equipped with a WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks, and a 3.5" bolt-in kingpin, it is designed for reliable long-haul transport in demanding environments.

Use TruckTrailer
Size 12000mm*2500mm*3900mm
Suspension MechanicalsuspensionCh
Material Aluminum/Alloy
Certification CCC,ISO9001,BV

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10627

Front three-quarter view of a 3-axle aluminum alloy oil tanker semi-trailer with white tank body and FUWA brand axles

Key Benefits

What This Unit Does Well

Aluminum alloy end plates reduce weight while maintaining structural integrity for better payload efficiency
FUWA brand 13T axles and mechanical suspension provide durability on rough terrain and heavy loads
12R22.5 super single tires reduce rolling resistance and improve fuel economy over long hauls
WABCO braking system ensures consistent stopping power under full load and high-speed operation
3.5" bolt-in kingpin allows quick coupling and reliable connection to tractor heads
CCC, ISO9001, and BV certifications support compliance with international transport and safety standards

Application Scenarios

Where It Is Used

Transport of crude oil between inland storage depots and coastal export terminals on unpaved and gravel roads
Chemical transport across desert routes where high ambient temperatures and dust affect equipment
Fuel delivery to remote construction sites with limited access and poor road surfaces
Long-distance liquid transport where consistent braking performance and axle load distribution are critical

Fit

Who It Is For

Fleet operators sourcing heavy-duty liquid transport trailers for oil and chemical logistics
Contractors requiring trailers that meet international safety and certification standards
Machinery dealers stocking semi-trailers for resale in Middle Eastern and African markets
Government procurement teams importing tankers for national fuel or chemical distribution networks

Buyer Pain

Problems It Solves

High corrosion risk during sea transport due to saltwater exposure, solved by wax spray process
Inconsistent axle performance and suspension failure on rough roads, solved by using FUWA brand axles and leaf spring sets
Lack of spare parts availability for foreign-branded trailers, solved by using standardized components like WABCO and FUWA
Uncertainty in delivery timelines, solved by fixed 20 workday delivery after 30% down payment
Difficulty in matching trailer specs to local registration or road weight limits, solved by clear payload and dimension data

Engineering

Technical Features

Tank body made of Q235A steel 5mm thick with ball-shaped aluminum alloy end plates 6mm thick
3 axle FUWA brand 13T axles with mechanical suspension and 6 sets of 90mm x 13mm leaf springs
12R22.5 double star brand super single tires, 12 pieces total
3.5" bolt-in kingpin with FUWA brand mounting
WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks for braking system
4" disc valve with 6 sets, 4" seamless steel discharge pipe, 1 bottom valve
FUWA brand two-speed manual landing gear, heavy duty, 2 units
8 side lights, 2 rear lights, 2 width lamps, 4mm light LED shifting board
Complete chassis treatment: sand blasting, 1 coat anticorrosive primer, 2 coats final paint

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 AXLES of ALUMINUM ALLOY OIL TANKER SEMI TRAILER for SALES
Use	TruckTrailer
Size	12000mm2500mm3900mm
Suspension	MechanicalsuspensionChinafamousbrand
Material	Aluminum/Alloy
Certification	CCC,ISO9001,BV
Axle	3axleFUWAbrand13T
Type	Semi-Trailer
Trailer Model	Aluminum Alloy Oil Tanker Semi-Trailer
Dimensions L x W x H	12000 mm x 2500 mm x 3900 mm
Axles	3 axle FUWA brand 13T
Leaf Spring	6 sets, 90 mm x 13 mm
Tire Size	12R22.5 double star brand (super single)
Tire Count	12 pcs
Wheel Rim	9.0-22.5 China brand
Discharge Valve	4" disc valve, 6 sets
Discharge Pipe	4" seamless steel tube
Bottom Valve	1 set
Kingpin	FUWA brand 3.5" bolt-in
Landing Gear	FUWA brand two-speed, manual, heavy duty, 2 units
Braking System	WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks
Lighting	4mm light LED, 8 side lights, 2 rear lights, 2 width lamps
Painting	Chassis sand blasted, 1 coat anticorrosive primer, 2 coats final paint
Manhole Cover	500mm with breath valve, 2 sets
Max Payload	40-60 Ton
Place of Origin	Shandong, China (Mainland)
Certifications	CCC, ISO9001, BV

Materials

Materials and Build

Q235A steel for tank body (5mm thickness)
Aluminum alloy for end plates (6mm thickness, ball shape)
FUWA brand 13T axles with cast steel housing
90mm x 13mm leaf springs made from high-tensile steel
12R22.5 super single tires with reinforced sidewalls
9.0-22.5 steel rims from China brand
4" seamless steel discharge pipe
3.5" bolt-in kingpin with steel mounting bracket
WABCO RE6 relay valve and T30/30 spring brake chamber components
Stainless steel manhole cover with breath valve

Process

How an Order Is Handled

You provide the liquid type, route profile, and load volume you plan to transport
We confirm the trailer configuration matches your payload and road weight limits
You approve the final spec sheet and photos before placing the 30% T/T down payment
We begin fabrication and prepare the chassis for sand blasting and painting
After completion, the trailer is waxed, secured with steel wire, and photographed
We book shipment and issue export documents including commercial invoice and bill of lading

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the approved specification
Brake system pressure test and kingpin fitment are recorded on video before loading
Wax coating and paint finish are inspected for uniformity and coverage
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Tank body material change from Q235A to stainless steel (additional cost and lead time)
Custom tank volume or internal baffle design for specific liquid types
Different tire brand or size if required for local road conditions
Additional lighting or reflective tape for high-visibility operation
Custom paint color or logo application on the tank body

Honest Comparison

How It Compares With the Alternatives

Steel-only tanker trailer	Aluminum alloy end plates reduce overall weight and increase payload, but steel tanks are cheaper and more impact-resistant
2-axle trailer	3-axle configuration allows higher payload and better axle load distribution on uneven roads, but increases fuel consumption and tire wear
Pneumatic suspension	Mechanical suspension is lower cost and easier to maintain in remote areas, but offers less ride comfort on rough terrain

Use Guide

Using It Well

Perform a full brake system check before first use, especially after long transport
Replace the air dryer cartridge every 12 months or sooner in high-humidity environments
Keep the manhole cover seal and breath valve clean to prevent contamination
Use only approved lubricants on the kingpin and landing gear to avoid premature wear

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view showing the 12000mm length, 12R22.5 super single tires, and mechanical suspension system

Rear view with the 3.5" bolt-in kingpin, landing gear, and 40L air tanks visible

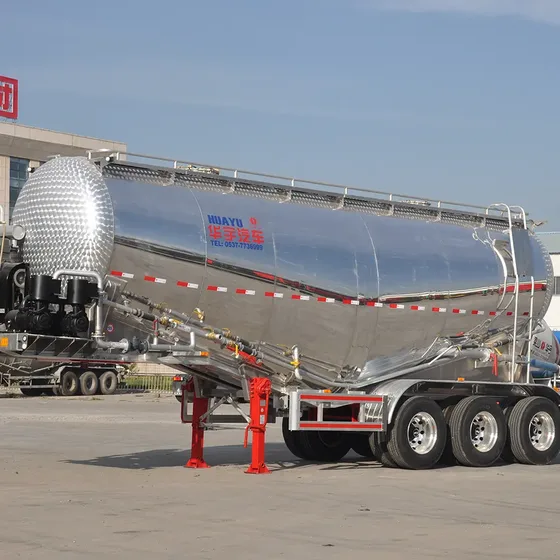

Close-up of the tank body with ball-shaped end plates, manhole cover, and discharge valve

Source Specification

Manufacturer Text We Hold for This Listing

3 AXLES OF ALUMINUM ALLOY OIL TANKER SEMI TRAILER FOR SALES DIMENSIONS Tank body Q235A/ 5 mm Aluminum Alloy End plate Q235A/6mm.ball shape Aluminum Alloy Axle 3 axle FUWA brand 13T Suspension Mechanical suspension China famous brand Leaf spring Leaf spring 6 sets 90 mm *13mm Manhole cover 500mm manhole cover with breath valve. 2 sets Tire 12R22.5 double star brand (super single type) 12 pcs Wheel rim 9.0-22.5 China brand 12 pcs Discharge valve 4" disc valve 6sets Discharge pipe 4" seamless steel tube Bottom valve 1 sets Kingpin FUWA brand 3.5 " bolt-in king pin Landing gear FUWA brand two-speed, manual operating,heavy duty landing gear 2 8 T Compartment Single Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks Shifting Board 4mm Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust,1coat of anticorrosive p

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
