Tank Trailers

3 Axle 45cbm Dry Silo Cement Bulker Tank Trailer Truck Semi Trailer Use for Cargo Transportation

A 3-axle, 45cbm dry silo cement bulker tank trailer designed for bulk material transport. It is suitable for flour, cement, fly ash, limestone, ore powder and other particles. The trailer has a tare weight of 11000kg and dimensions of 13000x2500x3990mm. Options include FUWA, HJ or BPW axles and Linglong, Doublestar or Triangle tyres. It is shipped naked packed by bulk carrier, RoRo or 40/45 HQ container.

Use TruckTrailer
Size 13000*2500*3990mm
Color Optional
Material Steel
Axle FUWA/HJ/BPWbrandoption

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10595

Silver 3-axle 45cbm cement bulker trailer, side view

Key Benefits

What This Unit Does Well

45cbm capacity reduces the number of trips for bulk material transport
FUWA, HJ or BPW axle options provide a choice of durability and cost
Optional tyre brands (Linglong, Doublestar, Triangle) offer flexibility in budget and performance
Q235A/Q345 steel tank body offers a balance of strength and weight
ISO9001:2008 and CCC certification demonstrates adherence to quality standards

Application Scenarios

Where It Is Used

Transporting cement from the quarry to a ready-mix concrete plant
Hauling fly ash from a power station to a construction site
Moving limestone from a mine to a processing facility
Delivering flour to a bakery or food processing plant
Transporting ore powder to a steel mill

Fit

Who It Is For

Construction companies needing to move bulk materials to job sites
Cement plants and quarries requiring a cost-effective transport solution
Agricultural businesses transporting grain or other bulk commodities
Mining operations needing to move ore and minerals
Logistics companies specializing in bulk material transport

Buyer Pain

Problems It Solves

Inefficient transport of bulk materials with smaller capacity trailers
Damage to materials during transport due to inadequate containment
High maintenance costs associated with lower quality trailers
Difficulty sourcing spare parts for non-standard trailers
Compliance issues with local regulations and safety standards

Engineering

Technical Features

Q235A/Q345 steel tank body with a capacity of 45cbm
FUWA, HJ or BPW axles with a load capacity of 13-16T
12R22.5 Linglong, Doublestar or Triangle tyres
Mechanical suspension with 10pcs x 90 x 13mm leaf springs
4'' discharge valve and 4'' seamless steel tube
WABCO brand braking system (optional)

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle 45cbm Dry Silo Cement Bulker Tank Trailer Truck Semi Trailer Use for Cargo Transportation
Use	TruckTrailer
Size	1300025003990mm
Color	Optional
Material	Steel
Axle	FUWA/HJ/BPWbrandoptional
Tire	12R22.5linglong,Doublestar,Triangleoptional
Function	Transportbulkcement,flour,flyash,orepowder,etcparticles
Type	Semi-Trailer
Packing	nakedpacking
Certificate	ISO9001:2008,CCC
Trailer Type	Semi-Trailer
Capacity	45cbm
Dimensions (L x W x H)	13000x2500x3990mm
Tare Weight	11000KG
Tank Material	Q235A/Q345 steel
Tyre	12R22.5 linglong, Doublestar, Triangle optional
Suspension	Mechanical
Braking System	WABCO (optional)
King Pin	2"/3.5" JOST
Landing Gear	JOST two-speed
Max Payload	60T
Place of Origin	Shandong, China (Mainland)
Brand Name	HYD
CCC Brake System	WABCO
Brand Optional King Pin	2"/ 3.5"
JOST Landing Gear	JOST Brand Two-speed

Materials

Materials and Build

Q235A/Q345 steel for the tank body
Steel for the chassis and frame
FUWA, HJ or BPW axles
Linglong, Doublestar or Triangle tyres
JOST king pin and landing gear

Process

How an Order Is Handled

You specify the material to be transported and any required modifications
We confirm the trailer specification and availability
You confirm the final specification sheet and place a deposit
The trailer is prepared, photographed and video recorded
We arrange shipment by bulk carrier, RoRo or container

Quality Control

Checks Before Loading

Chassis and component serial numbers are recorded against your order
Welds are visually inspected for defects
Brake system functionality is tested before loading
Tyre pressure and wheel nut torque are checked
Loading and lashing are supervised to prevent damage

Customisation

What Can Be Changed

Tank volume between 25m3 and 115m3
Choice of axle brand (FUWA, HJ, BPW)
Tyre brand and tread pattern
Painting in a custom colour
Addition of accessories such as ladders or toolboxes

Honest Comparison

How It Compares With the Alternatives

Smaller capacity silo trailer	A 45cbm trailer reduces the number of trips required, lowering transport costs
Trailer with air suspension	Mechanical suspension is more robust and requires less maintenance in rough terrain
Trailer without WABCO braking system	WABCO provides superior braking performance and safety, but increases the initial cost

Use Guide

Using It Well

Inspect the tyres and suspension before each trip
Check the discharge valve for leaks or damage
Lubricate the moving parts regularly
Avoid overloading the trailer
Follow the manufacturer's recommendations for maintenance

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

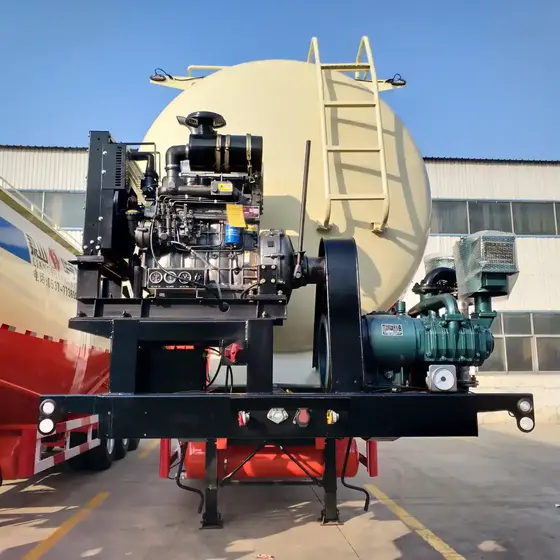

Rear view of the cement bulker trailer showing the discharge valve

Close-up of the trailer's tyres and suspension

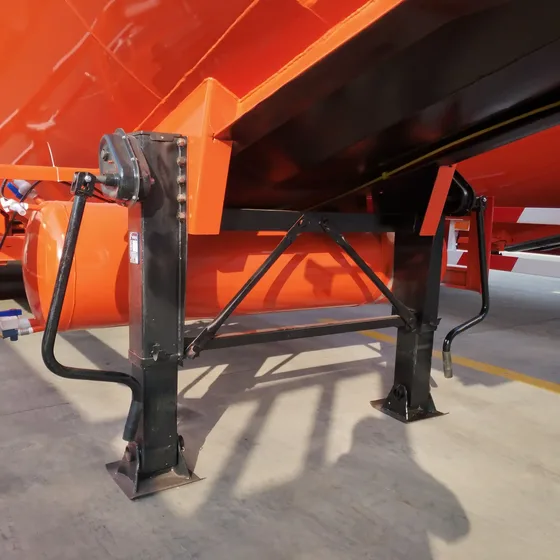

Front view of the trailer with the kingpin and landing gear

Source Specification

Manufacturer Text We Hold for This Listing

3 Axle 45cbm Dry Silo Cement Bulker Tank Trailer Truck Semi Trailer Use for Cargo Transportation Powder material semi trailer is used for large quantities of dust materials transport of special vehicles, it's suitable for the transportation of flour, cement, fly ash, limestone, ore powder and other particles. Product Description BULK CEMENT SEMI TRAILER Tare weight 11000KG Size According to your request Color Customized Volume 25m3-115m3 Tank body Q235A/Q345 3.5mm-5mm steel sheet V type End plate Q235A/Q345 6mm ball shape Axle 2/3/4 axle FUWA/BPW /HJ brand optional 13T-16T Tire 11.00R20/12.00R20/11R22.5/12R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5 optional Wheelbase 6380+1310+1310 Suspension Mechanical suspension Leaf spring 10pcs*90*13mm ABS 4S/2M KEMI Brand Manhole cover 500mm manhole cover 2 sets Discharge valve 4'' discharge value Discharge pipe 4'' seamless steel

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
