Tank Trailers

3 Axles 60T Engine Compressor Bulk Cement Truck Powder Trailer/Semi Trailer

A 3-axle semi-trailer designed for bulk transport of dry particulate materials, with a 60-ton payload capacity and a 25m3 to 115m3 tank volume. The unit features a Q235A/Q345 steel tank body, 3.5mm to 5mm thickness, and a V-type end plate with 6mm thickness. It is powered by a 37kW diesel engine and air compressor system, with optional FUWA, HJ, or BPW axles and 12R22.5 tyres. The trailer is built for long-haul transport of cement, fly ash, flour, and ore powder across challenging terrain.

Use TruckTrailer
Size 13000*2500*3990mm
Color Optional
Material Steel
Axle FUWA/HJ/BPWbrandoption

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10597

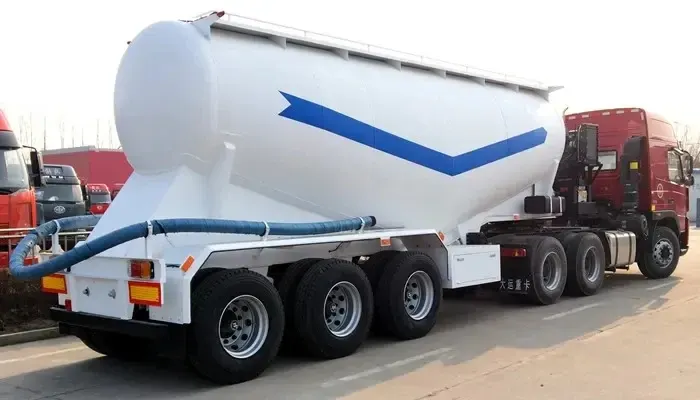

3-axle semi-trailer with 13000mm length, steel tank, and 12R22.5 tyres, parked on a yard

Key Benefits

What This Unit Does Well

60-ton payload capacity supports high-volume bulk transport without exceeding legal GVW limits
37kW diesel engine and 0.2MPa air compressor ensure consistent pressure for powder discharge
V-type end plate with 6mm steel resists deformation under high internal pressure
Optional FUWA/HJ/BPW axles allow matching local axle availability and service networks
12R22.5 tyres with Linglong, Doublestar, or Triangle brands offer local spare part access
Naked packing reduces shipping cost and simplifies port handling for bulk cargo

Application Scenarios

Where It Is Used

Transport of bulk cement from a quarry to a port in Southeast Asia with unpaved access roads
Delivery of fly ash from a power plant to a construction site in Africa with limited infrastructure
Moving flour from a processing plant to a distribution hub in the Middle East using a 40HQ container
Long-haul haulage of ore powder across Russia's vast distances where reliable service support is sparse

Fit

Who It Is For

Fleet operators managing bulk material transport in emerging markets with limited spare parts availability
Contractors sourcing reliable, high-capacity trailers for large-scale infrastructure projects
Importers in Africa and Southeast Asia needing a trailer that matches local axle and tyre standards
Logistics companies requiring a trailer with a proven discharge system for dry powder materials

Buyer Pain

Problems It Solves

Lack of local spare parts for foreign-branded trailers in remote or underdeveloped regions
Inconsistent discharge pressure due to underpowered or poorly maintained air systems
Overloading risks from trailers with insufficient structural strength for high-density powders
Uncertainty over axle and tyre fitment when importing into countries with strict vehicle registration rules
Delays caused by non-standard packaging or improper shipping preparation

Engineering

Technical Features

3-axle semi-trailer with 6380+1310+1310mm wheelbase and mechanical suspension with 10pcs*90*13mm leaf springs
Tank body made from Q235A/Q345 steel, 3.5mm to 5mm thickness, V-type end plate 6mm thick
37kW diesel engine (WEICHAI brand) driving a 0.2MPa, 1000r/min air compressor
4'' discharge valve and 4'' seamless steel discharge pipe for reliable powder flow
JOST 2"/3.5" bolt-in kingpin and JOST two-speed landing gear rated for 28T
ABS 4S/2M KEMI brand braking system with 2'' main hole, 2'' check valve, 1.5'' safety valve, 0.4MPa gauge
Quadratic blow 1'' diameter check valve and air-charging system with 2'' main hole and 1.5'' safety valve
500mm manhole cover with two sets for access and maintenance

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axles 60T Engine Compressor Bulk Cement Truck Powder Trailer/Semi Trailer
Use	TruckTrailer
Size	1300025003990mm
Color	Optional
Material	Steel
Axle	FUWA/HJ/BPWbrandoptional
Tire	12R22.5linglong,Doublestar,Triangleoptional
Function	Transportbulkcement,flour,flyash,orepowder,etcparticles
Type	Semi-Trailer
Packing	nakedpacking
Certificate	ISO9001:2008,CCC
Trailer Type	Semi-Trailer
Axles	3 Axles
Max Payload	60 T
Tare Weight	11000 kg
Dimensions L x W x H	13000 x 2500 x 3990 mm
Tank Volume	25m3 - 115m3
Tank Material	Q235A/Q345 Steel
Tank Thickness	3.5mm - 5mm
End Plate Thickness	6mm
Engine	37kW Diesel, WEICHAI Brand
Air Compressor	37kW, 0.2MPa, 1000r/min
Discharge Valve	4''
Discharge Pipe	4'' Seamless Steel Tube
Kingpin	JOST 2" / 3.5" Bolt-in
Landing Gear	JOST Two-speed, 28T
Suspension	Mechanical, Leaf Spring 10pcs9013mm

Materials

Materials and Build

Q235A/Q345 steel for tank body and V-type end plate
Cast steel for axle housings (FUWA/HJ/BPW brand)
Seamless steel tube for discharge pipe
Steel leaf springs with 10pcs*90*13mm dimensions
Steel wheel rims with 8.5-20 to 9.0-22.5 size options
Rubber seals and gaskets in valve and manhole connections

Process

How an Order Is Handled

You provide the material type, volume, and route profile for the trailer
We confirm axle brand (FUWA/HJ/BPW), tyre size, and discharge system based on your region
You approve the final specification sheet including colour, tank volume, and packing method
Unit is prepared, photographed, and video recorded before loading
We book bulk cargo carrier, RoRo, or 40/45 HQ shipment and issue export documents

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the approved specification
Air compressor and engine start-up are recorded on video before loading
Tank welds and paint finish are inspected for transport damage at the yard
Loading and lashing photos are sent before vessel departure

Customisation

What Can Be Changed

Tank volume between 25m3 and 115m3 based on your load requirement
Optional axle brand: FUWA, HJ, or BPW
Tyre brand and size: Linglong, Doublestar, Triangle, or standard size
Cab colour or trailer paint colour (optional)
Additional manhole cover or discharge pipe length
Custom tool box or spare tire carrier configuration

Honest Comparison

How It Compares With the Alternatives

2-axle trailer	The 3-axle unit supports higher payload and better weight distribution on soft or uneven roads, but costs more in fuel and maintenance
Non-compressed trailer	The engine-driven air compressor ensures consistent discharge pressure, but adds weight and requires diesel fuel
Fully welded tank	The V-type end plate allows easier cleaning and reduces stress at corners, but is more complex to fabricate than flat plates

Use Guide

Using It Well

Run the first 500km at reduced load and check all bolted joints and tyre pressure
Inspect the air compressor belt and oil level before each long haul
Use only approved tyre brands and sizes to maintain axle load rating and safety
Check the manhole cover seal and gasket before each loading cycle

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

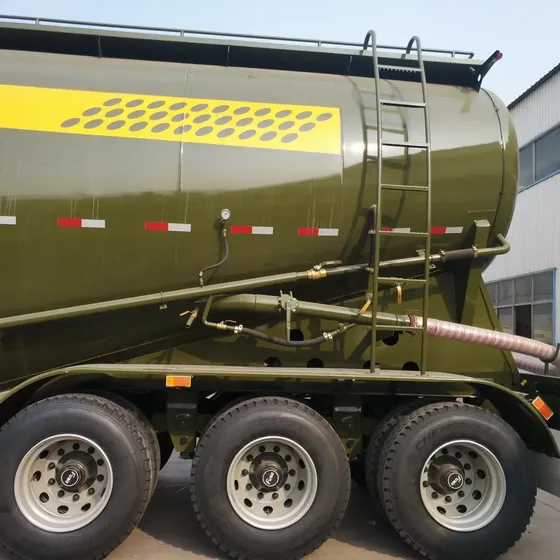

Side view of the trailer showing the 6380+1310+1310mm wheelbase and mechanical suspension

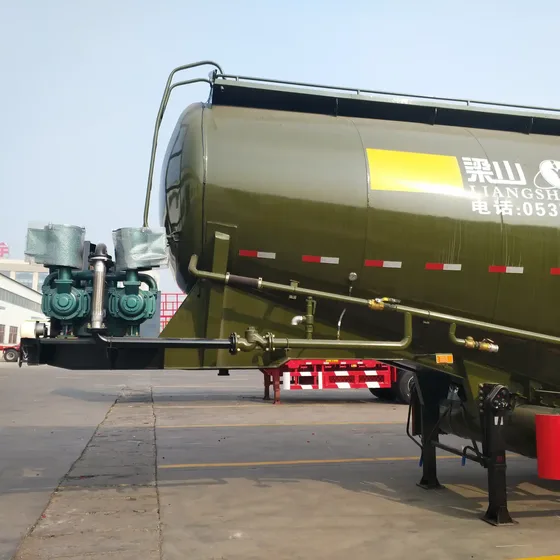

Rear view with JOST kingpin, landing gear, and 4'' discharge valve

Front view with V-type end plate, manhole cover, and air compressor unit

Source Specification

Manufacturer Text We Hold for This Listing

3 Axles 60T Engine Compressor Bulk Cement Truck Powder Trailer/Semi Trailer Powder material semi trailer is used for large quantities of dust materials transport of special vehicles, it's suitable for the transportation of flour, cement, fly ash, limestone, ore powder and other particles. Product Description BULK CEMENT SEMI TRAILER Tare weight 11000KG Size According to your request Color Customized Volume 25m3-115m3 Tank body Q235A/Q345 3.5mm-5mm steel sheet V type End plate Q235A/Q345 6mm ball shape Axle 2/3/4 axle FUWA/BPW /HJ brand optional 13T-16T Tire 11.00R20/12.00R20/11R22.5/12R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5 optional Wheelbase 6380+1310+1310 Suspension Mechanical suspension Leaf spring 10pcs*90*13mm ABS 4S/2M KEMI Brand Manhole cover 500mm manhole cover 2 sets Discharge valve 4'' discharge value Discharge pipe 4'' seamless steel tube Air compressor

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
