Tank Trailers

3 Axle Bulk Powder Cement Tank/Tanker Semi Trailer for Sale

A 3-axle bulk powder cement tank semi-trailer with a 25m3 to 100m3 capacity, built on a 12310 x 2500 x 4000mm chassis, featuring a Q235A/Q345 steel tank body, 3 axles with optional FUWA/BPW/HJ brands, and a 12R22.5 tire configuration. It includes a 37kW diesel air compressor, JOST kingpin and landing gear, and is designed for transporting dry bulk cement and powder over long distances in construction and mining operations.

Use TruckTrailer
Size 12310*2500*4000mm
Color Optional
Suspension MechanicalSuspension
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10594

3-axle cement tank semi-trailer parked on a yard, front three-quarter view showing the tank and front axle

Key Benefits

What This Unit Does Well

3-axle configuration with 13T-16T axles provides stable load distribution for heavy cement payloads
Q235A/Q345 steel tank body with 3.5mm-5mm thickness resists deformation under high internal pressure
Optional FUWA/BPW/HJ axles allow matching to local maintenance networks and spare parts availability
12R22.5 tires with optional Double Star/Triangle/Linglong brands support high-speed transport on rough roads
37kW diesel air compressor ensures consistent pressure for efficient powder discharge
JOST kingpin and two-speed landing gear offer reliable coupling and stability during loading

Application Scenarios

Where It Is Used

Transport of bulk cement from a quarry to a construction site on unpaved access roads
Long-haul delivery of cement powder between port terminals and inland storage depots
Operation in mining zones where frequent loading and unloading require durable discharge systems
Use in regions with high humidity where corrosion resistance is critical during sea transport

Fit

Who It Is For

Construction companies needing reliable cement transport for large-scale infrastructure projects
Cement producers exporting bulk powder to markets in Africa, Southeast Asia, and the Middle East
Logistics operators managing bulk material fleets across mixed terrain and poor road conditions
Contractors sourcing a semi-trailer that can be customized to match existing fleet specifications

Buyer Pain

Problems It Solves

High risk of tank deformation under heavy loads due to thin or low-grade steel in cheaper trailers
Inconsistent axle availability leading to long delays in repairs when using non-standard brands
Lack of spare parts for air compressors and discharge valves in remote or underdeveloped regions
Corrosion damage during sea transport due to inadequate pre-shipment protection
Inflexible trailer dimensions that do not match existing loading or unloading infrastructure

Engineering

Technical Features

3-axle mechanical suspension with leaf spring 10pcs*90*13mm for stable load handling
Q235A/Q345 steel tank body with 3.5mm-5mm thickness and V-type end plate with 6mm thickness
4S/2M KEMI ABS system for improved braking safety on loaded runs
500mm manhole cover with 2 sets for internal inspection and maintenance
4'' discharge valve and 4'' seamless steel discharge pipe for efficient powder flow
37kW diesel engine (WEICHAI brand) with 0.2Mpa pressure and 1000r/min for air compression
JOST 2" or 3.5" bolt-in kingpin for secure coupling with tractor heads
JOST two-speed landing gear rated for 28T with manual and automatic lowering
Air-charging system with 2'' main hole, 2'' check valve, 1.5'' safety valve, and 0.4Mpa pressure gauge
Quadratic blow valve with 1'' diameter for pressure relief during loading

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle Bulk Powder Cement Tank/Tanker Semi Trailer for Sale
Use	TruckTrailer
Size	1231025004000mm
Color	Optional
Suspension	MechanicalSuspension
Material	Steel
Axle	FUWA/HJ/BPWBrandoptional
Tire	12R22.5Triangle,Doublestar,Linglongoptional
Function	TransportBulkCementPowder
Type	Semi-Trailer
Packing	nakedpacking
Certificate	ISO9001:2008,CCC
Trailer Type	Semi-Trailer
Wheelbase	6380+1310+1310 mm
Tank Material	Q235A/Q345 Steel
Tank Thickness	3.5mm-5mm
End Plate Thickness	6mm
Volume Capacity	25m3-100m3
Tare Weight	11000 kg
Max Payload	60 T
Size L x W x H	12310 x 2500 x 4000 mm
Air Compressor	37kW, 0.2Mpa, 1000r/min
Engine	Diesel, WEICHAI brand, 4102 model
Kingpin	JOST 2" or 3.5" bolt-in
Landing Gear	JOST two-speed, 28T
Discharge Valve	4''
Discharge Pipe	4'' seamless steel tube

Materials

Materials and Build

Q235A/Q345 steel for tank body and end plates
Cast steel for axle housings and kingpin components
Seamless steel for discharge pipe and pressure lines
Galvanized steel for wheel rims and structural brackets
Rubber seals for manhole covers and discharge valve joints

Process

How an Order Is Handled

You send the required volume, payload, axle brand preference, and destination country
We confirm available chassis dimensions, axle options, and tire brands based on current stock
You approve the technical drawing and final specification before deposit
Unit is built, tested for air pressure and structural integrity, and photographed
We apply wax coating and prepare for shipment via bulk carrier, RoRo, or 40/45 HQ container

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the approved specification
Air pressure test is recorded on video to verify system integrity before shipment
Tank welds and structural joints are inspected for leaks and deformation
Paint finish and corrosion protection are checked before waxing and loading
Loading and lashing photos are sent before departure, and third-party inspection is available

Customisation

What Can Be Changed

Tank volume between 25m3 and 100m3 based on your load requirements
Axle brand: FUWA, BPW, or HJ as per local availability and service network
Tire brand: Double Star, Triangle, or Linglong with 12R22.5 size
Kingpin size: 2" (50mm) or 3.5" (90mm) bolt-in type
Color: Custom paint color upon request
Additional tool box, spare tire carrier, or side lights as needed

Honest Comparison

How It Compares With the Alternatives

2-axle cement trailer	The 3-axle unit handles heavier payloads and distributes weight better on poor roads, but has higher purchase and fuel cost
Hydraulic suspension trailer	Mechanical suspension is simpler to maintain and more reliable in dusty or high-temperature environments
Aluminum tank trailer	Steel construction is more impact-resistant and lower in cost, but heavier than aluminum alternatives

Use Guide

Using It Well

Inspect all welds and seals before first use after transport to prevent leaks
Run the air compressor for 10 minutes before each loading to ensure full pressure
Use the quadratic blow valve to release pressure after unloading to prevent over-pressurization
Check and lubricate the kingpin and landing gear every 500 hours of operation
Replace the air dryer cartridge annually in high-humidity environments

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

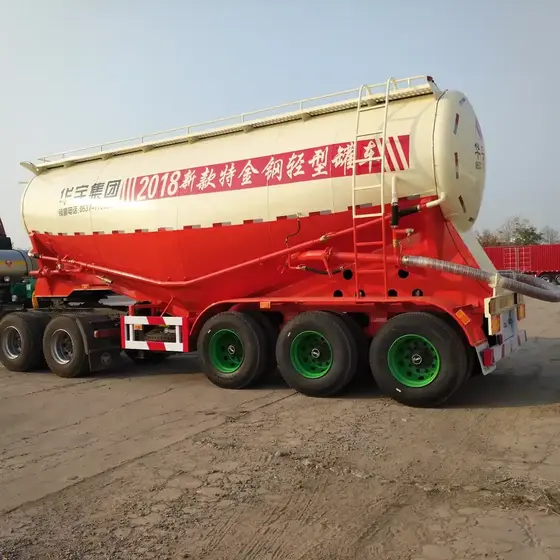

Side view of the trailer highlighting the 6380+1310+1310 mm wheelbase and 12R22.5 tires

Rear view showing the 4'' discharge valve, air compressor, and landing gear

Cab interior with sleeper bunk and air conditioning controls

Fifth wheel plate and air lines on the chassis rear deck

Source Specification

Manufacturer Text We Hold for This Listing

3 Axle Bulk Powder Cement Tank/Tanker Semi Trailer for Sale We are manufacturer, all specifications and designs of trailers can be customized, and we can provide you with technical drawings. Please kindly contact with me for details. Product Description BULK CEMENT SEMI TRAILER Tare weight 11000KG Size According to your request Color Customized Volume 25m3-100m3 Tank body Q235A/Q345 3.5mm-5mm steel sheet V type End plate Q235A/Q345 6mm ball shape Axle 3 Axle FUWA/BPW /HJ brand optional 13T-16T Tire 12R22.5 Double star/Triangle/Linglong Tire brand optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional Wheelbase 6380+1310+1310 Suspension Mechanical suspension Leaf spring 10pcs*90*13mm ABS 4S/2M KEMI Brand Manhole cover 500mm manhole cover 2 sets Discharge valve 4'' discharge value Discharge pipe 4'' seamless steel tube Air compressor 37KW, 0.2Mpa, 1000r/Min Engine Diesel engine

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
