3 Axle 38cbm Edible Oil Tank Semi Trailer Edible Oil Transport Semi Trailer

The unit features a 304/5mm tank body, 304/6mm end plates, FUWA brand axles and suspension, Triangle brand tyres, and a 2-inch bolt-in kingpin. The trailer is designed for long-haul food-grade liquid transport where corrosion resistance and cleanability are critical.

Use TruckTrailer
Size 10700*2500*3600mm
Color Optinal
Suspension FUWAbrand
Material stainlesssteel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10598

Front view of the trailer with 2-inch bolt-in kingpin, landing gear, and 500mm manhole cover

Key Benefits

What This Unit Does Well

304 stainless steel tank body and end plates resist corrosion and meet food-grade transport standards
304/5mm tank thickness ensures structural integrity under full liquid load and pressure
FUWA brand axles and mechanical leaf spring suspension provide reliable load support on rough roads
12R22.5 or 11R22.5 tyres offer good load capacity and durability for long-haul routes
Single compartment design simplifies cleaning and reduces cross-contamination risk
WABCO RE6 relay valve and T30/30 spring brake chamber ensure consistent braking performance
2-inch bolt-in kingpin allows quick coupling and disconnection at loading sites
Optional thermal insulation layer can be added for temperature-sensitive oil transport

Application Scenarios

Where It Is Used

Transport of edible oil from a refinery to a packaging plant on unpaved rural roads
Long-haul movement of vegetable oil between ports and inland distribution hubs in Southeast Asia
Cross-border delivery of food-grade oil where hygiene and material certification are inspected
Fleet operations requiring consistent tank material and cleaning protocols across multiple trailers

Fit

Who It Is For

Food and beverage logistics operators sourcing compliant tank trailers for edible oil
Contractors transporting bulk edible oils in regions with high humidity and corrosion risk
Importers in Africa and the Middle East needing CCC, BV, and ISO-certified trailers
Distributors who require a single-compartment design to avoid contamination between batches

Buyer Pain

Problems It Solves

Corrosion in carbon steel tanks that can contaminate edible oil and fail inspection
Inconsistent axle and suspension brands across trailers leading to uneven wear and maintenance
Lack of certification (CCC, BV, ISO) that delays customs clearance in regulated markets
Multiple compartments that increase cleaning time and risk of cross-contamination
Braking systems that fail under full load due to undersized air tanks or valves
Uncertainty over tank material thickness and weld quality in low-cost trailers

Engineering

Technical Features

Single compartment tank body made from 304 stainless steel, 5mm thickness
End plates constructed from 304 stainless steel, 6mm thickness
Three FUWA brand axles with mechanical leaf spring suspension
10-piece leaf springs per axle for load distribution and durability
2-inch bolt-in kingpin for quick coupling and standard tractor compatibility
FUWA brand two-speed, manual landing gear rated for 28 tonnes
4" seamless steel discharge pipe with bottom valve (4 sets)
WABCO RE6 relay valve and T30/30 spring brake chamber for reliable braking
40L air tanks with dual air lines for consistent brake pressure
500mm manhole cover with four breather valves for pressure equalisation
Optional thermal insulation layer for temperature-sensitive oil transport
Complete chassis sandblasted, primed and painted with two coats of final paint

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle 38cbm Edible Oil Tank Semi Trailer Edible Oil Transport Semi Trailer
Use	TruckTrailer
Size	1070025003600mm
Color	Optinal
Suspension	FUWAbrand
Material	stainlesssteel
Certification	CCCBVISO
Axle	FUWABrand
Tire	TriangleBrand
Campartment	single
Type	Semi-Trailer
Volume	38000L
Trailer Type	Semi-Trailer
Axle Number	3
Capacity	13 T
Max Payload	30 T
Tare Weight	8400 kg
Overall Length	10700 mm
Overall Width	2500 mm
Overall Height	3600 mm
Tank Material	Stainless Steel 304
Tank Thickness	5 mm
End Plate Thickness	6 mm
Axle Brand	FUWA
Tyre Size	12R22.5 / 11R22.5 / 12.00R20 / 11.00R20 / 825R20
Tyre Brand	Triangle
Kingpin	2 inch, bolt-in

Materials

Materials and Build

304 stainless steel tank body, 5mm thickness
304 stainless steel end plates, 6mm thickness
High tensile steel Q345B main beams welded by automatic submerged-arc process
FUWA brand axles and suspension components
Triangle brand tyres in 12R22.5, 11R22.5, 12.00R20, 11.00R20, or 825R20 sizes
2-inch bolt-in kingpin with steel housing
4-inch seamless steel discharge pipe
WABCO RE6 relay valve and T30/30 spring brake chamber
40L air tanks with dual air lines
500mm manhole cover with four breather valves
Sandblasted and primed chassis with two coats of final paint

Process

How an Order Is Handled

You confirm the required volume, axle count, tyre size, and optional insulation
We match the available stock or schedule production based on the plant calendar
You approve the final specification sheet including colour, tyre brand, and valve layout
Unit is built, inspected, and photographed before loading
We book RoRo or container shipment and issue export documents for customs clearance

Quality Control

Checks Before Loading

Tank welds are inspected visually and with pressure testing before painting
Axle and suspension components are checked for correct brand and fitment
Brake system pressure and air line connections are tested before loading
Paint finish and cab trim are checked for damage during transport preparation
Loading and lashing photos are sent before vessel departure

Customisation

What Can Be Changed

Tank colour other than standard white
Optional thermal insulation layer for temperature-sensitive oils
Tyre brand and size selection from available options
Additional tool box or mounting brackets for accessories
Custom valve layout or discharge pipe length
Landing gear with different speed ratio or manual override type

Honest Comparison

How It Compares With the Alternatives

Carbon steel tank trailer	Stainless steel resists corrosion and avoids contamination in edible oil, but costs more upfront and is heavier
2-axle trailer	3-axle design supports higher payload and better weight distribution on long hauls, but requires more space for turning
Multi-compartment trailer	Single compartment simplifies cleaning and reduces contamination risk, but limits batch flexibility

Use Guide

Using It Well

Inspect tank interior and valves before first use to confirm no debris or residue from transport
Flush the tank with water and food-safe cleaning agent before loading edible oil
Check air brake system pressure and valve function before each trip
Monitor tyre pressure weekly, especially in hot climates or long-distance runs
Clean the tank and valves after each delivery to prevent residue build-up
Store the trailer with landing gear lowered and kingpin secured to prevent damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Rear view showing the 4-inch seamless steel discharge pipe, bottom valves, and air brake components

Close-up of the tank body with 304 stainless steel finish and 5mm thickness markings

Interior view of the single compartment tank with clean stainless steel surface and valve access points

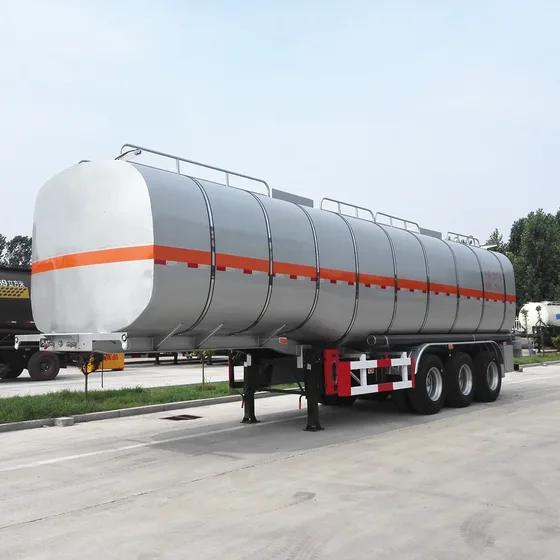

3 Axle 38cbm Edible Oil Tank Semi Trailer Edible Oil Transport Semi Trailer - photo 5

Source Specification

Manufacturer Text We Hold for This Listing

3 axle 38cbm Edible oil tank semi trailer Edible oil transport semi trailer Product Description 3 axle 38cbm Edible oil tank semi trailer Edible oil transport semi trailer DIMENSIONS Tare weight 8400kg Volume 38m3 Overall length 10700mm Overall width 2500mm Overall height 3600mm SPECIFICATION Tank body 304/5mm steel End plate 304/6mm steel sheet Axle Number 3 Brand FUWA Capacity 13T Suspension Mechanical suspension Leaf spring Leaf spring 10pcs Manhole cover 500mm manhole cover.4 sets with 4 breather valve. Tire 12R22.5 11R22.5 12.00R20 11.00R20 825R20 optional Discharge pipe 4"seamless steel tube Kingpin 2" bolt-in king pin Landing gear FUWA two-speed, manual operating,heavy duty landing gear 28t Bottom valve 4 set of bottom valve Thermal insulation layer optional Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks Painting Complete chassis sand blasting to cl

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
