2 Axle 24000L 7 Compartment Fuel Oil Tank Semi Trailer for Sale 2 Axle Fuel Tank Trailer

A 2-axle 24000L 7-compartment fuel oil tank semi trailer with a Q235/5mm steel tank body, FUWA brand axles and suspension, TriangleBrand tyres, and a 13-ton payload capacity. Built for transporting fuel oil in bulk across regions with limited infrastructure, it features a 28-ton heavy-duty landing gear, WABCO RE6 relay valve braking system, and a 4-inch seamless steel discharge pipe. The trailer is designed for export with CCC, BV, and ISO certification and is available in standard dimensions of 11120 x 2500 x 3060mm.

Use TruckTrailer
Size 9000*2500*3600mm
Color Optinal
Suspension FUWAbrand
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10614

Side view of a 2-axle 24000L 7-compartment fuel oil tank semi trailer with FUWA axles and TriangleBrand tyres

Key Benefits

What This Unit Does Well

7 independent compartments allow for segregated fuel transport, reducing contamination risk during delivery
FUWA brand axles and mechanical leaf spring suspension provide reliable load support on uneven roads
12R22.5 or 11R22.5 tyres offer good load capacity and durability on long hauls
4-inch seamless steel discharge pipe ensures smooth and safe fuel transfer without leaks
28-ton landing gear supports safe coupling and uncoupling in remote or low-traffic areas
WABCO RE6 relay valve and T30/30 spring brake chamber ensure consistent braking performance under load

Application Scenarios

Where It Is Used

Transporting diesel and fuel oil between remote oil depots and fuel stations in African and Middle Eastern regions
Delivering multiple fuel grades to construction sites where compartment separation is required
Moving fuel supplies across unpaved roads and rough terrain in Southeast Asia and South America
Supporting oil and gas field operations where multiple fuel types must be delivered in one trip

Fit

Who It Is For

Fleet operators managing fuel delivery routes with multiple stops and fuel types
Oil and gas contractors needing compartmentalised transport for different fuel grades
Government procurement teams sourcing reliable tank trailers for rural or remote infrastructure projects
Logistics companies importing tank trailers for resale in markets with limited local manufacturing

Buyer Pain

Problems It Solves

Multiple fuel types being mixed during transport due to single-compartment trailers
Braking failure or axle damage on rough terrain due to weak suspension or under-rated landing gear
Long delivery delays caused by lack of spare parts for foreign-branded trailers
Export customs rejection due to missing CCC, BV, or ISO documentation for heavy transport equipment

Engineering

Technical Features

7 independent compartments with Q235/5mm steel tank body and Q235/6mm end plates
FUWA brand 2-axle system with mechanical leaf spring suspension, 10 leaf springs per axle
TriangleBrand tyres in sizes 12R22.5, 11R22.5, 12.00R20, 11.00R20, or 825R20
2-inch bolt-in kingpin for secure coupling with tractor heads
28-ton heavy-duty manual landing gear with two-speed operation
WABCO RE6 relay valve, T30/30 spring brake chamber, and 40L air tanks for braking
4-inch seamless steel discharge pipe with 5 sets of bottom valves
500mm manhole cover with 5 breather valves for safe pressure release
Complete chassis sandblasted, primed, and painted with two coats of final paint
Standard tool box and high tensile steel Q345B main beams welded by automatic submerged-arc process

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 2 Axle 24000L 7 Compartment Fuel Oil Tank Semi Trailer for Sale 2 Axle Fuel Tank Trailer
Use	TruckTrailer
Size	900025003600mm
Color	Optinal
Suspension	FUWAbrand
Material	Steel
Certification	CCCBVISO
Axle	FUWABrand
Tire	TriangleBrand
Type	Semi-Trailer
Volume	24000L
Capacity	24CBM
Trailer Type	Semi-Trailer
Axles	2
Max Payload	30 T
Tare Weight	7400 kg
Overall Length	11120 mm
Overall Width	2500 mm
Overall Height	3060 mm
Tank Material	Q235/5mm steel
End Plate Material	Q235/6mm steel
Axle Brand	FUWA
Tire Brand	Triangle
Tire Size	12R22.5 / 11R22.5 / 12.00R20 / 11.00R20 / 825R20
Kingpin	2-inch bolt-in
Landing Gear	FUWA two-speed, manual, 28-ton
Braking System	WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks

Materials

Materials and Build

Q235/5mm steel for tank body and internal baffles
Q235/6mm steel for end plates and structural reinforcements
FUWA brand axles and suspension components made from forged steel
TriangleBrand radial tyres on steel rims
High tensile Q345B steel for main beams, welded with automatic submerged-arc process
Seamless steel 4-inch discharge pipe
Cast steel kingpin and landing gear components

Process

How an Order Is Handled

You provide the fuel type, route profile, and required compartment configuration
We confirm availability of the 2-axle 24000L 7-compartment trailer with FUWA axles and TriangleBrand tyres
You approve the final specification sheet including colour, tyre size, and insulation option
We prepare the trailer, photograph and video record the chassis, axles, and tank interior
We book RoRo or container shipment and issue export documents including commercial invoice and certificate of origin

Quality Control

Checks Before Loading

Chassis number and axle serials are photographed and matched to the approved specification
Brake system pressure test and kingpin fit are recorded on video before loading
Tank interior and welds are inspected for leaks and structural integrity at the yard
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Tank colour other than standard white or grey
Optional thermal insulation layer for temperature-sensitive fuels
Change in tyre size from standard 12R22.5 to 11R22.5 or 12.00R20
Additional tool box or side-mounted equipment rack
Custom compartment layout or number of compartments (if within structural limits)

Honest Comparison

How It Compares With the Alternatives

Single-compartment fuel trailer	7 compartments allow for multiple fuel grades in one trip, reducing the need for multiple vehicles
3-axle fuel trailer	2-axle model has lower tare weight and better fuel efficiency on paved roads, but less load capacity on rough terrain
Non-branded trailer	FUWA and WABCO components ensure better reliability and spare parts availability in export markets

Use Guide

Using It Well

Inspect all bottom valves and discharge pipe connections before each fuel transfer
Check tyre pressure and suspension condition before long hauls on unpaved roads
Use the 28-ton landing gear with care - ensure it is fully lowered and locked before coupling
Clean the manhole cover and breather valves monthly to prevent clogging in dusty environments
Store the trailer with the tank empty and valves closed when not in use to prevent corrosion

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer showing the 28-ton landing gear and 2-inch kingpin

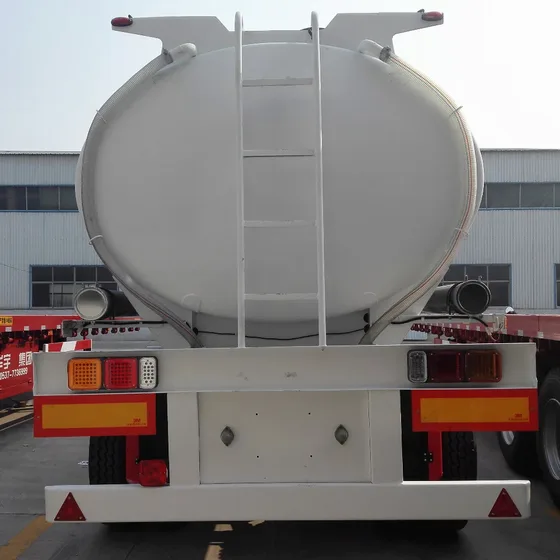

Rear view with the 4-inch seamless steel discharge pipe and bottom valves

Interior view of the 7 compartments with Q235 steel tank body and manhole covers

Source Specification

Manufacturer Text We Hold for This Listing

2 axle 24000L 7 compartment fuel oil tank semi trailer for sale 2 axle fuel tank trailer Product Description 2 axle 24000L 7 compartment fuel oil tank semi trailer for sale 2 axle fuel tank trailer DIMENSIONS Tare weight 7400kg Volume 24m3 Overall length 11120mm Overall width 2500mm Overall height 3060mm SPECIFICATION Tank body Q235/5mm steel End plate Q235/6mm steel sheet Axle Number 2 Brand FUWA Capacity 13T Suspension Mechanical suspension Leaf spring Leaf spring 10pcs Manhole cover 500mm manhole cover.5 sets with 5 breather valve. Tire 12R22.5 11R22.5 12.00R20 11.00R20 825R20 optional Discharge pipe 4"seamless steel tube Kingpin 2" bolt-in king pin Landing gear FUWA two-speed, manual operating,heavy duty landing gear 28t Bottom valve 5 set of bottom valve Thermal insulation layer optional Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks Painting Complete

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
