Stainless Steel and Engineering Plastics Motor Body
A stainless steel motor body with engineering plastics end caps, for boats that live in salt water and for shafts whose oil seal needs changing in the field.
What It Is

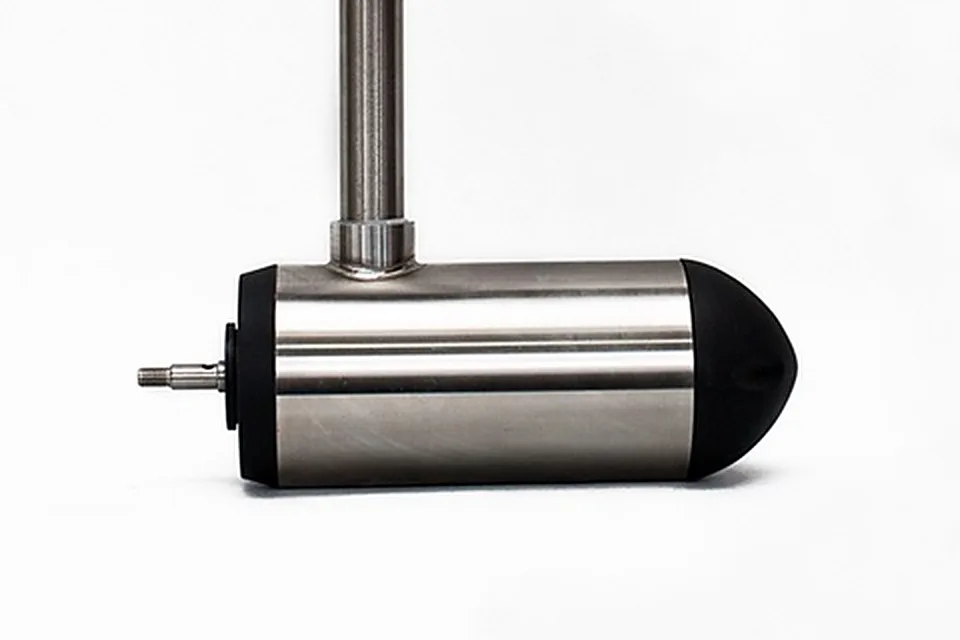

This is a body option rather than a separate drive. The housing is stainless steel with engineering plastics caps, specified by Caroute for high-corrosive and high-salt environments — the service most likely to eat an aluminium housing over a season.
The second change is serviceability: the propeller shaft's oil sealer is designed to be changed more easily on this body than on the standard one. The body is listed as applicable to the Caroute N, W, S and E platforms.
Why It Is Specified
- Built for salt
Caroute specifies this body for high-corrosive and high-salt environments.
- Shaft oil seal changes more easily
The propeller shaft's oil sealer can be changed more easily on this body.
- Fits four platforms
Applicable to the Caroute N, W, S and E platforms.
- Engineering plastics caps
Plastic end caps in place of metal at the two ends of the housing.
Application Scenarios
- Saltwater fishing and charter boats.
- Coastal workboats and harbour tenders that never leave brackish water.
- Owners who keep a boat moored rather than trailered.
What It Fixes
- Aluminium housings corrode in salt service
A stainless steel body is specified for exactly this environment.
- Seal replacement means returning the drive
The oil sealer on the propeller shaft is designed to be changed more easily.
- A body change usually means a new motor
This body is offered across the N, W, S and E platforms rather than on one model.
Published Technical Data
Every figure below is published by Caroute. Anything not published is marked TBC rather than estimated.
What Is In the Box
- Stainless steel housing.
- Engineering plastics end caps.
- Propeller shaft oil sealer designed for easier replacement.
- Applicable to the Caroute N, W, S and E platforms.
What Can Be Changed
- Specified against any N, W, S or E platform drive at order.
- Combine with the external controller box where the control board is moved out of the housing.
How It Compares Within the Range
| Option | What is different | Best suited to |
|---|---|---|
| Stainless steel body | Stainless housing, plastics caps | High-salt and high-corrosion water |
| Standard body | Standard housing | Fresh water and general use |
How to Specify and Fit It
Specify the body with the platform and thrust rating when you enquire.
Rinse after saltwater use as you would any drive, then check the shaft seal at the end of the season.
Order a spare oil sealer with the motor if the boat is far from service.
