S Platform Brushless Electric Boat Motor for DIY Builds
The drive on its own: five thrust ratings, four shaft lengths and no fixed mounting, so the installer decides how it attaches to the boat.
What It Is
The S platform strips the drive back to the parts that generate thrust. Mount and power switch are both listed as options rather than fitted equipment, which is what makes it the platform of choice for a builder integrating propulsion into their own hull, frame or steering arrangement.
Shaft choice is wider here than on any other platform: 10", 24", 32", 42" (standard) and 52". The 10" shaft in particular exists for installations where the drive sits in a well or a purpose-built bracket rather than hanging off a transom.
Why It Is Specified
- No mounting decided for you
Aluminium transom mount and power switch are accessory options, so the installation can be designed around the boat.
- Shaft from 10" to 52"
Five lengths, the widest range Caroute offers, covering well-mounted and transom-mounted builds.
- Same thrust ladder as the finished platforms
80 LB to 180 LB with identical voltage, amp and rpm figures to the N and W platforms.
- Stainless steel body available
The stainless and engineering-plastics body option fits the S platform for high-salt service.
Application Scenarios
- Boat builders and OEMs specifying electric propulsion into their own hull.
- Workshops converting an existing hull from petrol to electric drive.
- Experimenters and research users who need a known-output drive to build a rig around.
What It Fixes
- Off-the-shelf motors force a mounting you do not want
The S platform leaves mount and switch out of the base product.
- Standard shafts are too long for a well or pod
A 10" shaft option exists specifically for short installations.
- Integration work is wasted if the drive is later discontinued
The S platform shares its thrust ladder, voltages and propeller speeds with the rest of the range, so a design carries across platforms.
Published Technical Data
Every figure below is published by Caroute. Anything not published is marked TBC rather than estimated.
| Model | Thrust | Mount* | Speeds | Stainless steel shaft length* | Volts | Max amp | Max propeller speed (rpm) |
|---|---|---|---|---|---|---|---|
| S100 | 80 LB | Option | Variable | 42" | 12/24 | 60/30 | 1,100 |
| S150 | 100 LB | Option | Variable | 42" | 24 | 45 | 1,200 |
| S200 | 120 LB | Option | Variable | 42" | 24 | 60/30 | 1,350 |
| S300 | 160 LB | Option | Variable | 42" | 24/48 | 80/43 | 1,500 |
| S400 | 180 LB | Option | Variable | 42" | 48 | 56 | 1,800 |
Standard shaft length is 42". 10" / 24" / 32" / 52" are available.
Aluminum transom mount and power switch are accessory options.

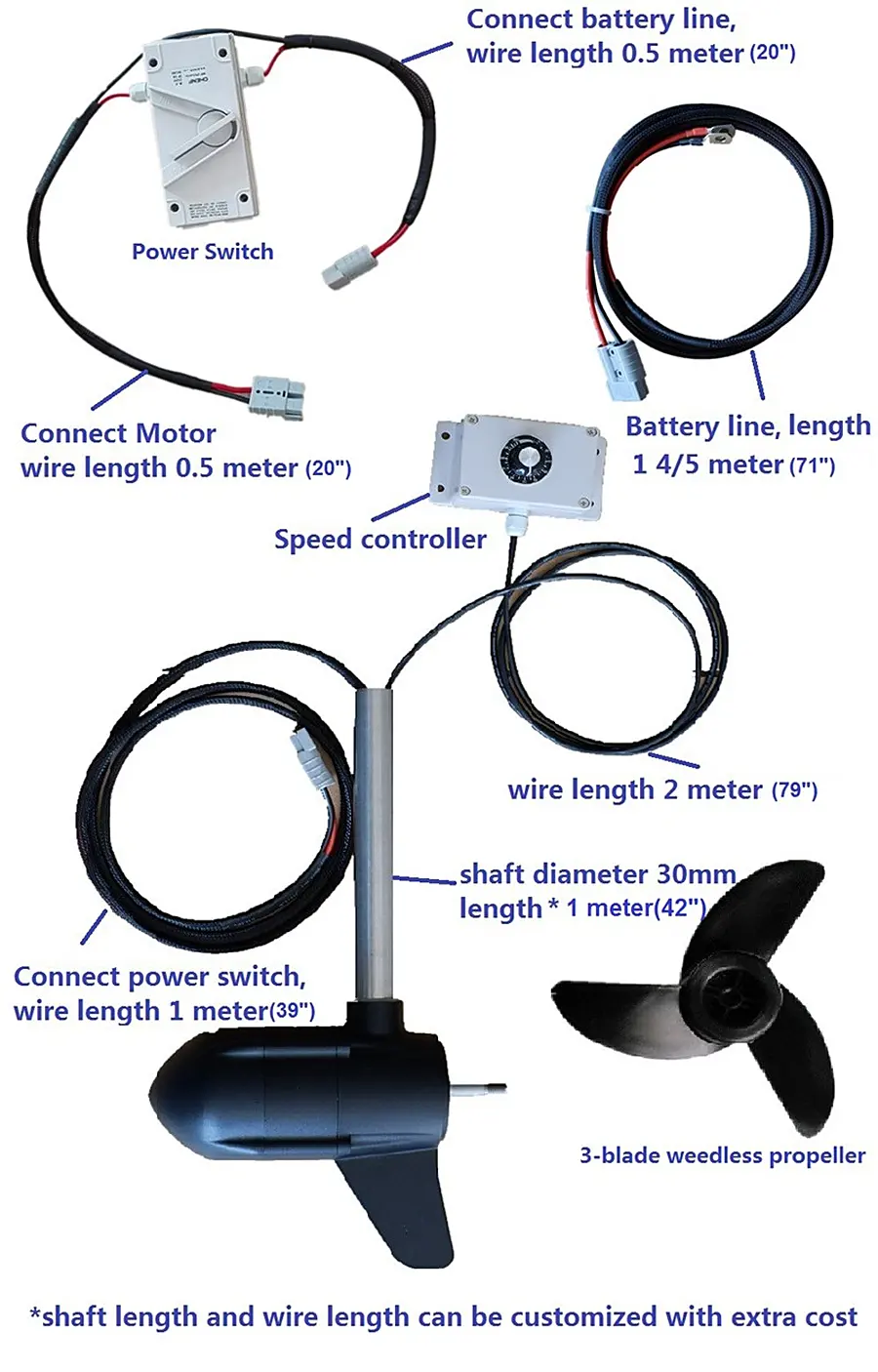

What Is In the Box
- Brushless motor unit with internal, water-cooled control board.
- Stainless steel shaft in 10", 24", 32", 42" or 52".
- Variable speed, forward and reverse.
- Three-blade weedless propeller.
- Accepts the external controller box for 24 V or 48 V.

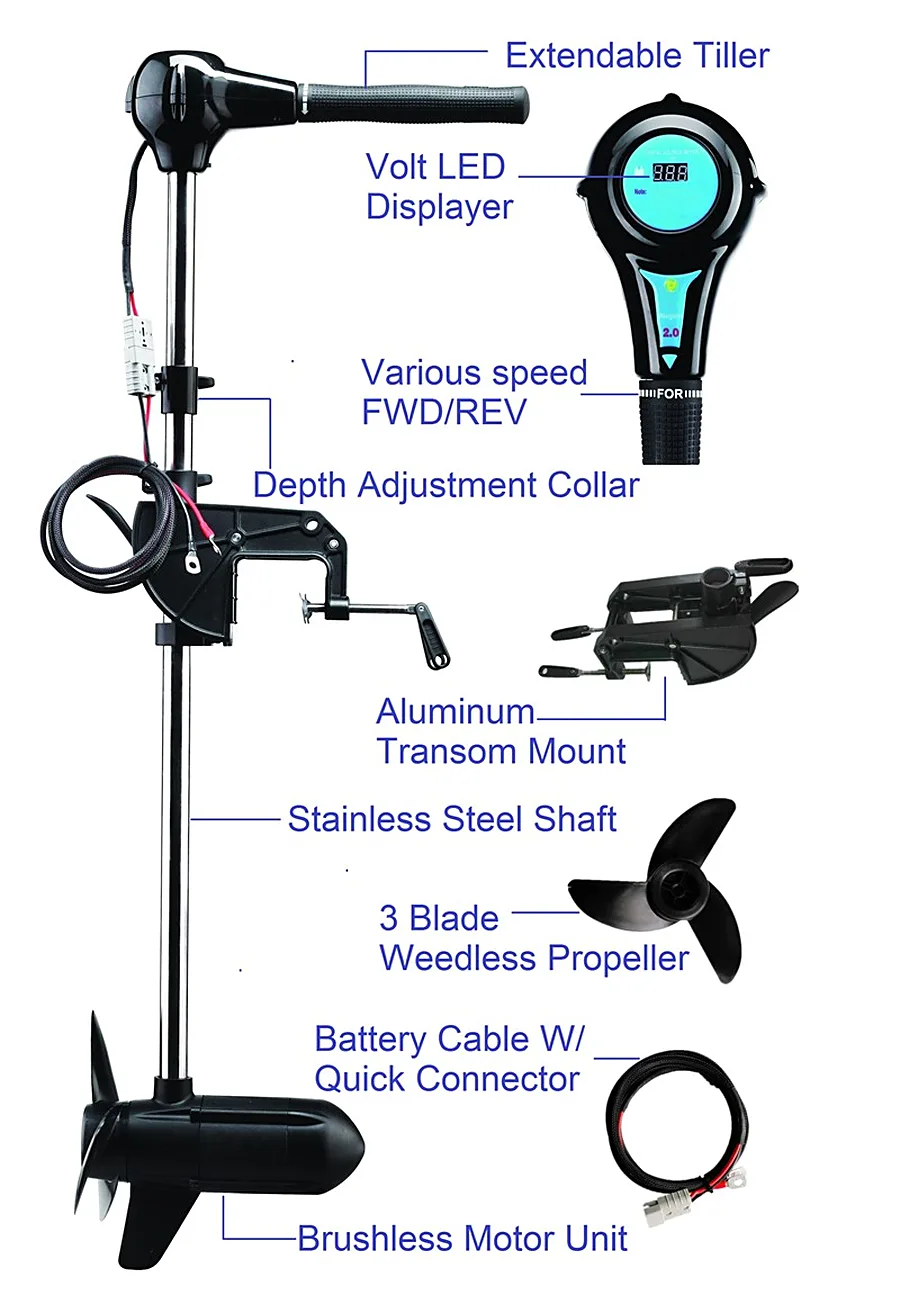

What Can Be Changed
- Aluminium transom mount added or omitted.
- Power switch added or omitted.
- Stainless steel body with engineering plastics caps.
- PWM signal control or PWM with wireless control.
- Two-blade high-pitch propeller.
How It Compares Within the Range
| Option | What is different | Best suited to |
|---|---|---|
| S platform | No mount fitted, five shaft lengths | DIY and OEM integration |
| N platform | Tiller and transom mount fitted | Ready-to-run tender use |
| E platform | Engine-mount bracket fitted | Repowering an existing boat |
| W platform | Wheel and cable steering | Console boats |
How to Specify and Fit It
Decide the mounting first — transom, well or custom bracket — then pick the shaft length to suit.
Specify the mount and power switch as options if you are not fabricating your own.
Match battery voltage to the model: 12/24 V on the S100, 24 V on the S150 and S200, 24/48 V on the S300, 48 V on the S400.
If the control board will sit outside the drive, order the external controller box in the matching voltage.
Often Specified Together
Stainless Steel Brushless Motor Body
A stainless steel motor body with engineering plastics end caps, for boats that live in salt…
View details
External Controller Box
Moves the controller out of the motor housing and raises maximum amp by 25% over the internal…
View details
N Platform Brushless Electric Boat Motor
Five tiller-controlled models from 80 LB to 180 LB of thrust, all built on the same brushless…
View details
Handle Throttle Speed Controller
A hand lever that sets speed on a Caroute drive — the throttle for E, S and W platform…
View detailsArticles Behind the Numbers
How Brushless Motors Are Classified
Three ways brushless motors are classified: by phase angle, by speed, and by whether a…
Read article
Why a Brushless DC Motor Is More Efficient Than a Brushed One
Eight published advantages of the permanent magnet brushless DC motor, from a 5-12%…
Read article
Permanent Magnet Brushless DC Motor Advantages in Short
Eight short points comparing a permanent magnet brushless DC traction motor with…
Read articleQuestions About the S Platform Brushless Electric Boat Motor for DIY
Does the S platform include a mount?
What is the shortest shaft available?
Can I use the external controller box?
Is the stainless body available on the S platform?
Do the specifications match the N platform?
Quote the S Platform Brushless Electric Boat Motor for DIY
Send the boat details, the thrust rating and any option you need changed. You will get a specification back, not a brochure.
