N Platform Brushless Electric Boat Motor With Extendable Tiller
Five tiller-controlled models from 80 LB to 180 LB of thrust, all built on the same brushless drive and all steered from an extendable tiller with a volt LED screen in the head.
What It Is
The N platform is the tiller version of the Caroute drive. The helmsman sits with the motor, turns the whole unit by hand and reads remaining battery voltage off an LED screen built into the tiller head, so there is no separate gauge to wire into the boat.
Every model shares one aluminium transom mount and one 42" stainless steel shaft as standard, with 24", 32" and 52" shafts available when transom height or draft calls for it. Speed is infinitely variable rather than stepped, which matters when you are holding station against a current rather than running a transit.
Why It Is Specified
- Does the work of a 3 HP to 9 HP petrol outboard
Caroute states the N platform covers the same duty as a 3 HP–9 HP petrol outboard while staying quieter, lighter and cleaner.
- 30%–60% more range from the same battery
Higher efficiency means the same bank carries the boat further, or a smaller bank reaches the same range.
- Infinitely variable speed, 5–8 mph
Linear speed-up across the range instead of fixed steps, up to 5–8 miles per hour.
- Volt LED screen on the tiller head
Battery state is read where your hand already is, with no extra panel to cut into the console.
Application Scenarios
- Tender and dinghy owners who need a motor one person can lift onto a transom and steer without a console.
- Sailboat owners up to roughly 4 tons displacement looking for auxiliary propulsion and manoeuvring in a marina.
- Rental and club fleets where a maintenance-free drive removes the seasonal carbon-brush and gearbox service.
What It Fixes
- Brushed trolling motors fail in the middle of a season
There is no sliding carbon brush to wear out, so the usual failure and the annual service that follows it are gone — Caroute quotes five times the service life of a conventional electric motor.
- Battery capacity runs out before the day does
A 30%–60% efficiency gain converts directly into range: the N100 covers 50–75 km at slow speed on one 12V / 200Ah bank.
- Petrol outboards are banned or unwelcome on the water you use
The N platform gives comparable duty to a small petrol outboard with no exhaust and far less noise.
Published Technical Data
Every figure below is published by Caroute. Anything not published is marked TBC rather than estimated.
| Model | Thrust | Mount | Speeds | Stainless steel shaft length* | Steering style | Volts | Max amp | Max propeller speed (rpm) | Volt LED screen on head |
|---|---|---|---|---|---|---|---|---|---|
| N100 | 80 LB | Aluminum transom mount | Variable | 42" | Extendable tiller | 12/24 | 60/30 | 1,100 | Yes |
| N150 | 100 LB | Aluminum transom mount | Variable | 42" | Extendable tiller | 24 | 45 | 1,200 | Yes |
| N200 | 120 LB | Aluminum transom mount | Variable | 42" | Extendable tiller | 24 | 60/30 | 1,350 | Yes |
| N300 | 160 LB | Aluminum transom mount | Variable | 42" | Extendable tiller | 24/48 | 80/43 | 1,500 | Yes |
| N400 | 180 LB | Aluminum transom mount | Variable | 42" | Extendable tiller | 48 | 56 | 1,800 | Yes |
Standard shaft length is 42". 24" / 32" / 52" are available.
| Throttle setting | Speed (km/h) | Range (km) | Runtime (h) |
|---|---|---|---|
| Slow speed | 2.0 – 3.0 | 50.0 – 75.0 | 25:00 |
| Half throttle | 5.0 – 6.5 | 29.0 – 37.0 | 5:50 |
| Full throttle | 7.0 – 9.0 | 19.0 – 25.0 | 2:50 |
| Throttle setting | Speed (km/h) | Range (km) | Runtime (h) |
|---|---|---|---|
| Slow speed | 2.0 – 3.0 | 60.0 – 90.0 | 30:00 |
| Half throttle | 5.5 – 7.0 | 28.0 – 36.0 | 5:10 |
| Full throttle | 7.5 – 9.5 | 17.0 – 22.0 | 2:20 |
| Throttle setting | Speed (km/h) | Range (km) | Runtime (h) |
|---|---|---|---|
| Slow speed | 2.0 – 3.0 | 90.0 – 135.0 | 45:00 |
| Half throttle | 6.0 – 7.5 | 36.0 – 45.0 | 6:00 |
| Full throttle | 8.0 – 10.0 | 20.0 – 25.0 | 2:30 |
| Throttle setting | Speed (km/h) | Range (km) | Runtime (h) |
|---|---|---|---|
| Slow speed | 2.0 – 3.0 | 100.0 – 150.0 | 50:00 |
| Half throttle | 7.0 – 8.5 | 28.0 – 34.0 | 4:00 |
| Full throttle | 9.0 – 11.0 | 18.0 – 22.0 | 2:00 |
| Throttle setting | Speed (km/h) | Range (km) | Runtime (h) |
|---|---|---|---|
| Slow speed | 2.0 – 3.0 | 120.0 – 160.0 | 40:00 |
| Half throttle | 8.0 – 9.0 | 22.0 – 36.0 | 4:00 |
| Full throttle | 10.0 – 12.0 | 20.0 – 24.0 | 2:00 |

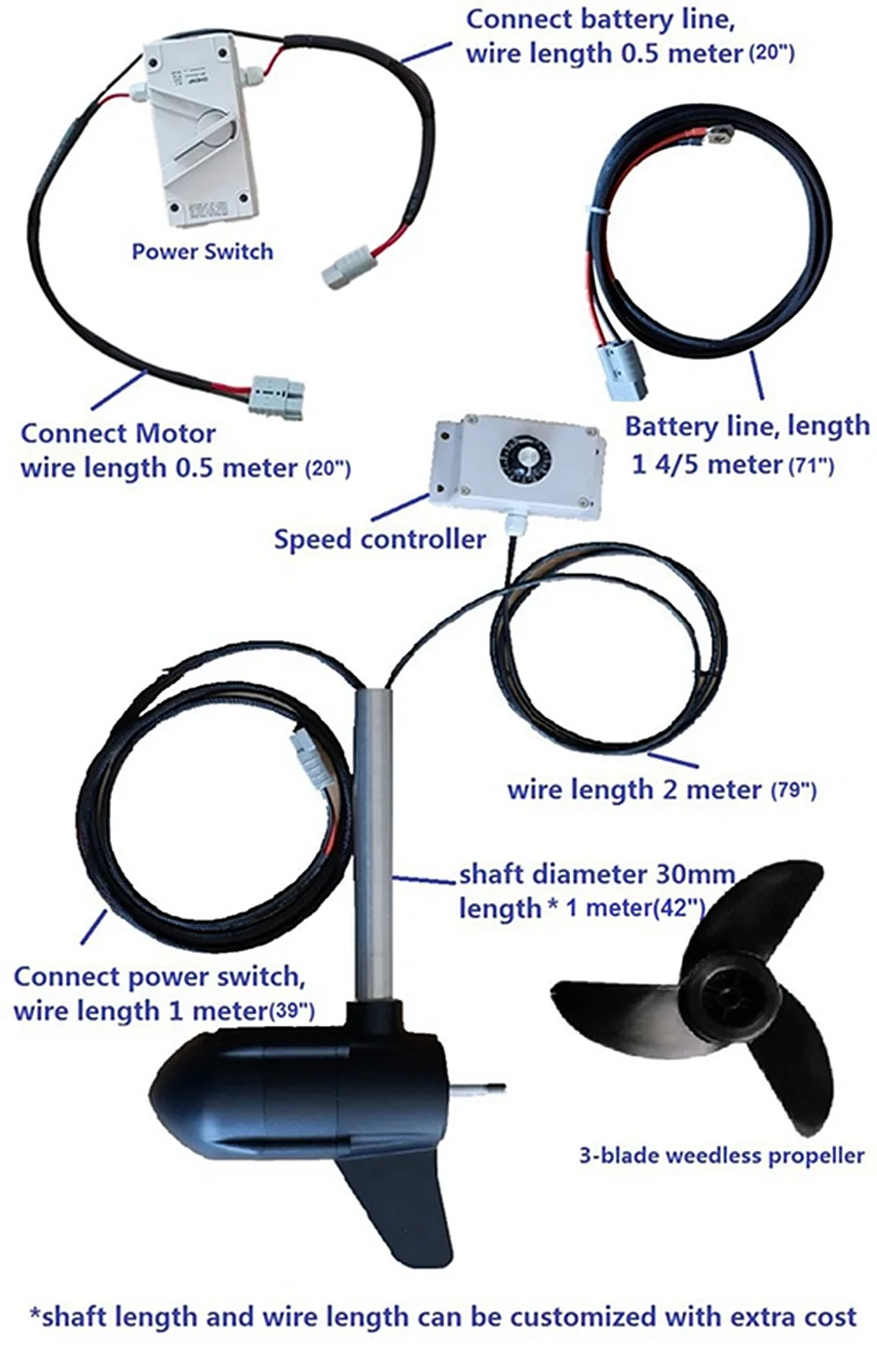

What Is In the Box
- Stainless steel shaft, stainless fasteners and aluminium mount throughout.
- Brushless motor unit with the control board inside the housing, cooled by the surrounding water.
- Three-blade weedless propeller as standard.
- Battery cable with quick connector; depth adjustment collar on the shaft.
- 12 V, 24 V and 48 V versions depending on model.
What Can Be Changed
- Shaft length: 24", 32", 42" (standard) or 52".
- PWM signal control or PWM with wireless control can be specified in place of the standard voltage-signal control.
- Stainless steel body with engineering plastics caps for high-salt service.
- Two-blade high-pitch propeller in place of the standard three-blade.
How It Compares Within the Range
| Option | What is different | Best suited to |
|---|---|---|
| N platform | Extendable tiller, steered by hand at the motor | Tenders, dinghies, small sailboats |
| W platform | Steering wheel and cable from a console | Boats already fitted with a helm station |
| E platform | Engine-mount bracket, no tiller | Repowering a boat that keeps its existing controls |
| S platform | Bare drive, mount supplied as an option | DIY and OEM installations |
How to Specify and Fit It
Pick thrust by displacement: Caroute publishes operating data up to 1.0 t for the N100 and up to 4.0 t for the N400.
Match the battery bank to the model — the published figures assume 12V / 100Ah to 12V / 200Ah blocks wired to the motor's voltage.
Check transom height before choosing shaft length; 42" is standard and three other lengths are available.
Fit the aluminium transom mount, set the depth adjustment collar so the propeller stays submerged under way, then connect the battery cable at the quick connector.
