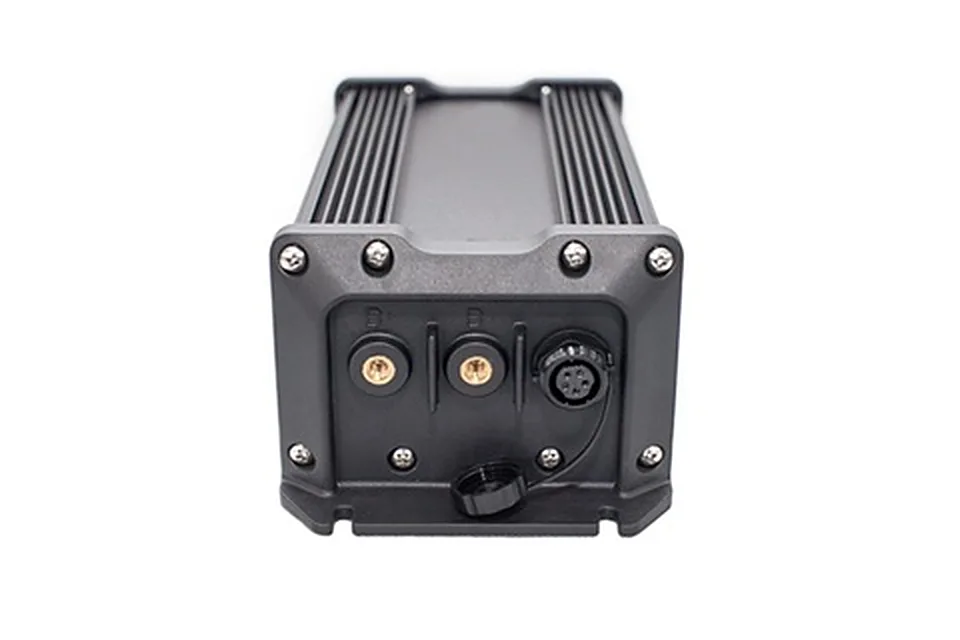

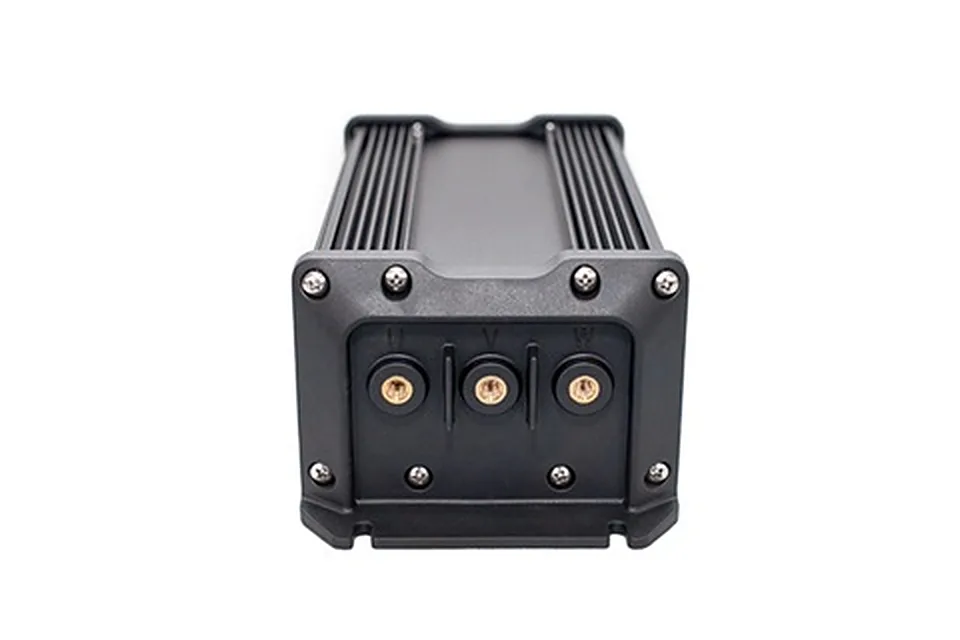

External Controller Box for Caroute Brushless Motors
Moves the controller out of the motor housing and raises maximum amp by 25% over the internal board — two voltage versions, 24 V and 48 V.
What It Is
The external controller box does the same job as the control board built into a Caroute drive, using the same voltage-signal control method, but it sits outside the motor. That matters in two situations: when there is no room in the housing for the control you want, and when the boat draws more current than the internal board is rated for.
Compared with the Caroute internal controller, maximum amp is 25% higher. Two versions exist and they are not interchangeable: DC24V rated at a maximum 2.4 kW, and DC48V rated at a maximum 3.3 kW. A dimensional drawing is published for installers.
Why It Is Specified
- 25% more maximum amp
Measured against the Caroute internal controller.
- Same control method
Standard control is voltage signal, the same as the internal controller PCB, so throttles carry over.
- Optional PWM on both versions
PWM control can be specified for the 24 V and the 48 V box.
- Optional kill switch
A kill switch function is available as an option.
Application Scenarios
- Installers fitting a Caroute drive into a console boat with space for a mounted box.
- Operators running long, continuous duty where amp headroom matters.
- Builders integrating a kill switch or PWM control into their own console.
What It Fixes
- The internal board limits current
The external box raises maximum amp by 25%.
- A kill switch has nowhere to terminate
The box offers a kill switch as an optional function.
- Control electronics are hard to reach inside the drive
Mounting the controller outside makes it accessible without pulling the motor.
Published Technical Data
Every figure below is published by Caroute. Anything not published is marked TBC rather than estimated.
- DC24V version
- Maximum 2.4 kW
- DC48V version
- Maximum 3.3 kW
- Control method
- Voltage signal control, the same as the internal controller PCB
- Maximum amp
- 25% higher than the Caroute internal controller
- PWM control
- Optional on both the 24 V and 48 V versions
- Kill switch
- Optional function
- Applicable platforms
- Caroute W, S and E
What Is In the Box
- Two voltage versions, DC24V and DC48V, supplied separately.
- Voltage signal control as standard.
- Optional PWM control.
- Optional kill switch function.
- Published installation dimensions in millimetres.
What Can Be Changed
- DC24V or DC48V.
- PWM control added.
- Kill switch function added.
How It Compares Within the Range
| Option | What is different | Best suited to |
|---|---|---|
| External controller box | Mounted outside the drive, 25% more maximum amp | High-current and console installations |
| Internal controller PCB | Built into the motor housing, water cooled | Standard installations |
How to Specify and Fit It
Pick the voltage version to match the battery bank — 24 V and 48 V boxes are different products.
Use the published dimension drawing to lay out the mounting before wiring.
Keep the standard voltage-signal throttle, or specify PWM at order.
Confirm the platform: the box is listed for the W, S and E platforms.
Often Specified Together
W Platform Brushless Electric Boat Motor
The same brushless drive as the N platform, turned from a helm station instead of a tiller —…
View details
E Platform Brushless Electric Boat Motor
An engine-mount drive for boats being repowered: the bracket takes the place of an outboard,…
View details
S Platform Brushless Electric Boat Motor for DIY
The drive on its own: five thrust ratings, four shaft lengths and no fixed mounting, so the…
View details
Side Mount Throttle
A console-side throttle with a black nylon body and a 10K waterproof potentiometer — and a…
View detailsArticles Behind the Numbers
Why a Brushless DC Motor Is More Efficient Than a Brushed One
Eight published advantages of the permanent magnet brushless DC motor, from a 5-12%…
Read article
Permanent Magnet Brushless DC Motor Advantages in Short
Eight short points comparing a permanent magnet brushless DC traction motor with…
Read article
How Brushless Motors Are Classified
Three ways brushless motors are classified: by phase angle, by speed, and by whether a…
Read articleQuestions About the External Controller Box
Can I use a 24 V box on a 48 V motor?
How much more current does it handle?
Does it change how I control the motor?
Which platforms is it for?
Is a mounting drawing available?
Quote the External Controller Box
Send the boat details, the thrust rating and any option you need changed. You will get a specification back, not a brochure.
