hydraulic pendant control

Name: hydraulic pendant control
Brand: Acontrol Remote

Product Overview

What The hydraulic pendant control Is For

The XAC-A8913 is a compact hydraulic pendant control station with a double speed push button system, designed for overhead cranes, hoists, winches and mobile lifting equipment. It features six function buttons plus open and emergency stop, all mounted on a rugged ABS plastic housing with IP54 protection. The unit is built for single-hand operation and includes mechanical interlock for safety. It is part of the XAC series and supports both single and double speed control systems with button counts from 2 to 12.

Key Benefits

What You Get From This Unit

Single-hand operation allows the operator to control the machine while keeping the other hand free for safety or signalling
Mechanical interlock prevents conflicting button presses, reducing risk of accidental motion
IP54 rated housing resists dust and splashing water, suitable for indoor workshop and outdoor yard use
Double speed control on all functions enables fast travel and slow approach without extra hardware
6+1 button layout with emergency stop provides clear, intuitive control for common crane motions

Photos

hydraulic pendant control As Supplied

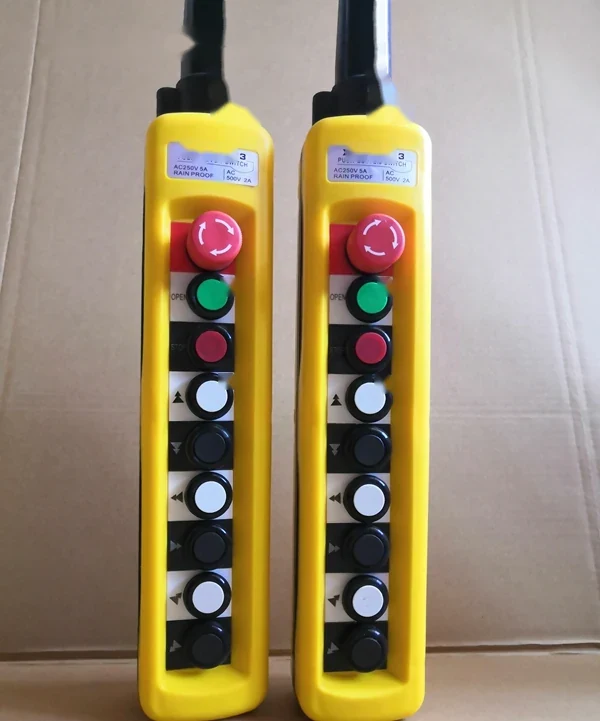

Two yellow industrial pendant control stations with red emergency stop buttons and push buttons

Application Scenarios

Where This Model Is Used

Hoists and winches used in construction, mining, and material handling where space is limited
Mobile lifting equipment such as tiller trucks, garden equipment, and electric carts
Maintenance or retrofit of existing pendant-controlled machines without changing the control panel
Applications requiring reliable, durable control in dusty or wet environments

Who It Is For

Buyers This Model Suits

Crane and hoist OEMs integrating a control station into new machine builds
Equipment dealers stocking a versatile pendant control for multiple crane types
Maintenance contractors replacing a failed or worn-out pendant station
Traders sourcing a low MOQ control unit from China with fast delivery
Operators needing a compact, reliable control for one-handed use in tight spaces

Problems It Solves

What Goes Wrong Without It

Existing pendant cable is too short, heavy or prone to snagging on structures
Operator must use two hands to operate the control, increasing fatigue and risk
Control fails in dusty or wet environments due to inadequate protection
Single speed control limits precision during load positioning
No mechanical interlock leads to accidental simultaneous operation of conflicting motions

Technical Features

How The Unit Is Built

6 function buttons plus open and emergency stop, with double speed control
Push button type with combination of arrow tips and custom text
Normally open contact type rated at 10A at 500VAC
Rotary start button for power on/off with clear visual feedback
Housing made of sturdy ABS plastic with impact resistance
IP54 protection rating against dust and water splashes
100g shock resistant design for use on vibrating equipment
Single hand operation allows safe control even in tight or busy work zones

Specifications

Data From The Original Product Sheet

Model	XAC-A8913
Button Count	6 + Open + Stop
Speed	Double
Contact Type	Normally open
Rated Current	10 A
Working Voltage	500 V
Housing Material	Sturdy ABS plastic
Housing Color	Yellow
Button Color	White, Black, Red, Green, Emergency Stop
IP Rating	IP54
Working Temperature	-45 C to +55 C
Shock Resistance	100g
Start Type	Rotary
Button Type	Combination
Button Text	Arrow tip standard, custom text available
Warranty	12 months

Materials

What The Housing And Contacts Are Made Of

Sturdy ABS plastic housing for impact resistance in industrial environments
High-grade contacts rated 10A at 500VAC for reliable switching under load
Mechanical interlock mechanism to prevent conflicting button operation

Manufacturing Process

How This Unit Is Made

Step 1

Raw materials inspected before production begins

Step 2

Buttons and contacts assembled with mechanical interlock mechanism

Step 3

Housing injection moulded from ABS plastic with consistent quality

Step 4

Final assembly includes functional testing of all buttons and contacts

Step 5

Each unit is checked for correct button layout, colour, and mechanical interlock before packing

Quality Control

What Is Checked Before It Ships

Step-by-step inspection from raw material to finished product
Each unit tested under simulated operating conditions before shipment
Mechanical interlock verified on every unit to prevent accidental operation
Production process follows ISO9001:2008 standards

Customization Options

What Can Be Changed On Your Order

Button text can be changed from arrow tips to custom English labels
Button count available from 2 to 12, single or double speed
Button colours available in black, white, red, green, and emergency stop
OEM branding and label printing accepted on bulk orders
Can be built to match existing control systems with same button layout and function

Comparison

How It Compares With The Alternatives

Wired pendant control with no interlock	Mechanical interlock prevents conflicting motions but adds complexity; a basic pendant is cheaper and simpler to maintain
XAC-A8912 with 5 buttons	The 8913 adds one more function button and includes an open button; if the machine only needs five motions, the 8912 is sufficient and lower cost
F24 series radio remote	Pendant offers direct mechanical control and no batteries to replace; radio adds range but requires pairing and receiver installation

Use Guide

Getting It Onto The Machine

Confirm the required number of functions and speed type (single or double) before ordering
Check the existing control panel for voltage and contact rating to ensure compatibility
Mount the pendant securely on the crane or equipment with the cable routed away from moving parts
Use the rotary start button to power on; verify all buttons respond correctly before operation
Record the model and button layout for future replacement or spare ordering
