The F23-A++ is a single speed radio remote control set for overhead and bridge cranes, hoists, winches, and mobile lifting equipment, supplied as a matched transmitter and receiver pair. Eight function buttons control up to nine m
What The Crane Remote Control Manufacturers Is For
The F23-A++ is a single speed radio remote control set for overhead and bridge cranes, hoists, winches, and mobile lifting equipment, supplied as a matched transmitter and receiver pair. Eight function buttons control up to nine motions, including start and stop, with a working range of up to 100 metres. The system operates across 80 channels in the 310.0325–331.165 MHz frequency band, and both units are rated IP65 for use in wet or dusty environments. Receiver power is selectable from AC380V, AC220V, AC110V, AC48V, AC36V, DC24V, or DC12V to match existing control panels.
What You Get From This Unit
- Operator can control the crane from the floor or a safe distance without being inside the cab
- Single speed operation simplifies training and reduces programming complexity
- IP65 protection allows use in outdoor yards, wash-down areas, and dusty workshops
- Receiver voltage built to order avoids the need for a control transformer
- 80 channels with unique ID codes prevent interference between nearby cranes

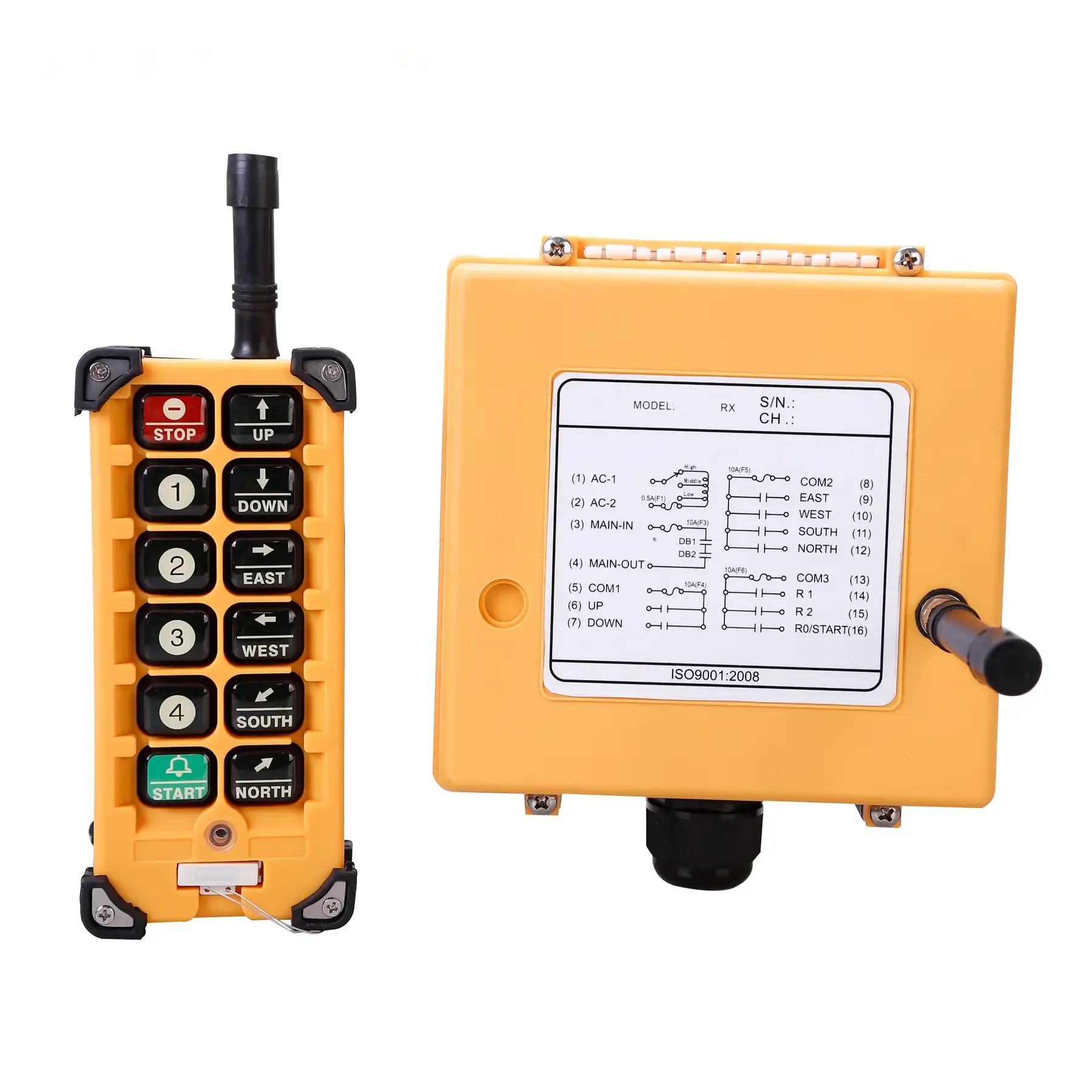

Crane Remote Control Manufacturers As Supplied
Where This Model Is Used
- Overhead and bridge cranes in fabrication and assembly shops
- Mobile lifting equipment where the operator needs to be near the load
- Hoists and winches in outdoor or wet environments
- Retrofit of an existing crane with a pendant control to a wireless system
- Single operator control of a crane where cab visibility is limited
Buyers This Model Suits
- Crane and hoist OEMs integrating wireless control into new machines
- Maintenance teams replacing a failed or damaged pendant station
- Equipment dealers stocking a control unit that fits multiple voltages
- Traders sourcing a radio control set from China with low MOQ
- Operators needing a safe, hands-free way to control lifting equipment
What Goes Wrong Without It
- Operator must stay in the cab with limited view of the hook and load
- Pendant cable snags on structures or gets damaged in high-traffic areas
- Existing panel runs AC110V and a standard 24V receiver would require a transformer
- Two cranes in the same bay respond to the same transmitter signal
- Cable and plug fail repeatedly in wet or dusty conditions
How The Unit Is Built
- 10 push buttons: 8 single speed function buttons, 1 start, 1 stop
- 9 control motions from the eight function buttons plus start/stop
- Transmitter LED flashes green when power is sufficient and red when low
- Glass fibre-reinforced nylon housing on both transmitter and receiver
- Earthquake-reduction design to resist damage from sudden shock or drop
Data From The Original Product Sheet
| Model | F23-A++ |
|---|---|
| Configuration | 1 transmitter with 1 receiver |
| Speed | Single speed |
| Function buttons | 8 |
| Control distance | Up to 100 m |
| Operating frequency | 310.0325-331.165 MHz |
| Channels | 80 |
| Control motions | 9 |
| Enclosure protection | IP65 |
| Working temperature | -35 C to +85 C |
| Transmitter size | 16.4 x 7.5 x 4.5 cm |
| Transmitter voltage | DC3V |
| Receiver power | AC380V / AC220V / AC110V / AC48V / AC36V / DC24V / DC12V |
| Housing material | Glass fibre-reinforced nylon |
| Colour | Yellow |
| Warranty | 1 year |
What The Housing And Contacts Are Made Of
- Glass fibre-reinforced nylon housing for impact resistance on industrial floors
- Sealed relay contacts rated 5 A to switch contactor coils directly without external relays
How This Unit Is Made
Step 1
Boards are populated on the SMT line and soldered on the automatic wave soldering machine
Step 2
Transmitter and receiver are paired to a unique ID code and channel before assembly
Step 3
Each set is function tested against the ordered receiver voltage before packing
Step 4
S/N and channel are printed on the back of both units so a replacement can be matched later
What Is Checked Before It Ships
- Raw material through finished product is inspected step by step on the production line
- Working process follows ISO9001:2008
- Every set is powered up and each motion is checked before it leaves the line
- 12 month warranty from delivery
What Can Be Changed On Your Order
- Receiver voltage selected from the listed range at order time
- Button text supplied as arrow tips or as your own English labels
- Two transmitters paired to one receiver, or a spare transmitter added to the set
- Own brand and label printing accepted on OEM orders
How It Compares With The Alternatives
| Wired pendant control station | Radio removes the trailing cable but adds batteries to change and a receiver to wire in; a pendant is cheaper and never needs pairing |
|---|---|
| F24-8D with double speed buttons | The F23-A++ is single speed and simpler to operate; if you need fast and slow travel on the same motion, double speed is required |
| Joystick sets such as F24-60 | Push buttons are faster to train an operator on; a joystick gives proportional control that push buttons cannot |
Getting It Onto The Machine
- Confirm the control voltage on the existing crane panel before ordering the receiver
- Count the motions the machine actually needs, then choose the button count with one spare
- Mount the receiver inside the panel with the 1 m cable running to the contactor terminals
- Watch the transmitter LED: slow red flashing means change the two batteries
- Record the S/N and channel from the back of both units so a lost transmitter can be replaced without changing the receiver
Other Models In This Series
Industries Cases And Guides For This Model
Overhead and Bridge Cranes
Industry application
Electric Hoists and Winches
Industry application
Construction Equipment
Industry application
DC24V F24-12S Truck Wireless Remote Control For An Australian Buyer
Case study
F21-2S Up and Down Remote Control For Chain Hoists
Case study
Four Advantages Of Using A Wireless Controller
Technical guide
How To Choose The Receiver Voltage For A Crane Radio Control
Technical guide
What Does IP65 Mean On A Crane Remote Control
Technical guide
Retrofit A Pendant Crane To Radio Control
Solution
Replace A Lost Or Broken Transmitter
Solution
Catalogue And Datasheets
Download center
Frequently Asked Questions
What is the minimum order quantity?
One set. A single sample is available so you can test it on the machine before committing to volume.
How long is delivery?
Around 2-4 days for a sample order and about 7 days for a small volume order, then 3-8 days by FedEx or DHL.
Which receiver voltage should I order?
Match the control voltage on the crane panel. The receiver is built for AC380V, AC220V, AC110V, AC48V, AC36V, DC24V, or DC12V, so tell us the panel voltage with the order.
Can I get a replacement transmitter only?
Yes. Send the S/N and CH printed on the back of your receiver and we build a new transmitter on the same channel, so the receiver stays in place.
Will two cranes in the same bay interfere?
Each set is coded with one of over 4.3 billion unique ID codes and runs on 80 channels, so a transmitter only answers its own paired receiver.
Can the button text be changed?
Yes. Arrow tips are standard and your own English button text and brand can be printed on OEM orders.
How is it packed?
One set per box at 46 x 24.4 x 14.8 cm, six sets per carton at 76.3 x 49.3 x 33 cm.
