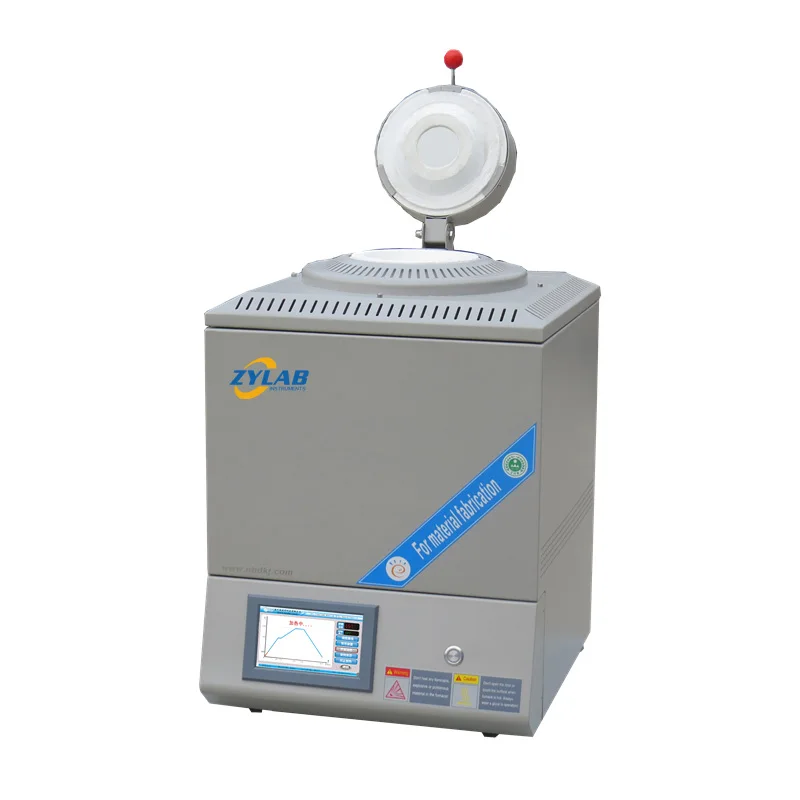

Well Type Lab Sintering Furnace 1600°C
Highlight Intelligent touch screen controller; Top quality high purity MoSi2 heating elements ring distribution; Vacuum formed ceramic fiber furnace chamber; Upward opening door structure. Applications Used for high-temperature sintering, melting, and heat treatment of metal alloys, non-metallic materials, ceramic...
Introduction
The Well Type Lab Sintering Furnace 1600°C is suitable for high or heavy samples, the heating elements are evenly arranged around the furnace cavity make the thermal field uniformity.
It’s suitable for scientific research institutes, university laboratories, enterprises for high-temperature sintering, melting, heat treatment of metals, non-metals, alloys, ceramics and other materials.
Features
1. Max. Temperature 1700C, working temperature 800-1600C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.
6. Heating elements ring distribution, the temperature is more uniform to obtain better effect.
7. Upturn door structure, pick and place materials convenient.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
9. Low power consumable, exquisite structure and light weight, it is the ideal crucible furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This Sintering Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications of the Well Type Lab Sintering Furnace 1600°C
- High-Temperature Sintering of Metals and Alloys: Ensures uniform heating for sintering metals and alloys.
- Ceramic Sintering: Ideal for high-precision ceramic material sintering.
- Non-Metal Melting: Suitable for melting non-metallic materials under high temperatures.
- Heat Treatment: Used for annealing, hardening, and stress relieving metals and alloys.
- Material Development: Supports research and development of advanced materials like composites and superalloys.
- Scientific Research: Used in university labs and research institutes for high-temperature experiments.
- Prototype Production: Suitable for small-scale production and prototype testing of components.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | G1700-12IT |
|---|---|
| Furnace structure | •1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | Dia120*160mm (Optional big size: 300*500mm) |
| Max. temperature | 1700 ℃(<1hours) |
| Working temperature | 800-1600 ℃(1650℃)(continuing) |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. •.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20 ℃ /min(Suggest: 10°C/min) |
| Thermocouple | B type |
| Temperature accuracy | +/- 1 ℃ |
| Heating element | M1800 high purity MoSi2 heating element |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 2.8Kw |
| Dimension | 550(W)*750(H)*500(D)mm |
| Quantity / Net weight | 1set / 90kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
Well Type Lab Sintering Furnace 1600°C In Detail
