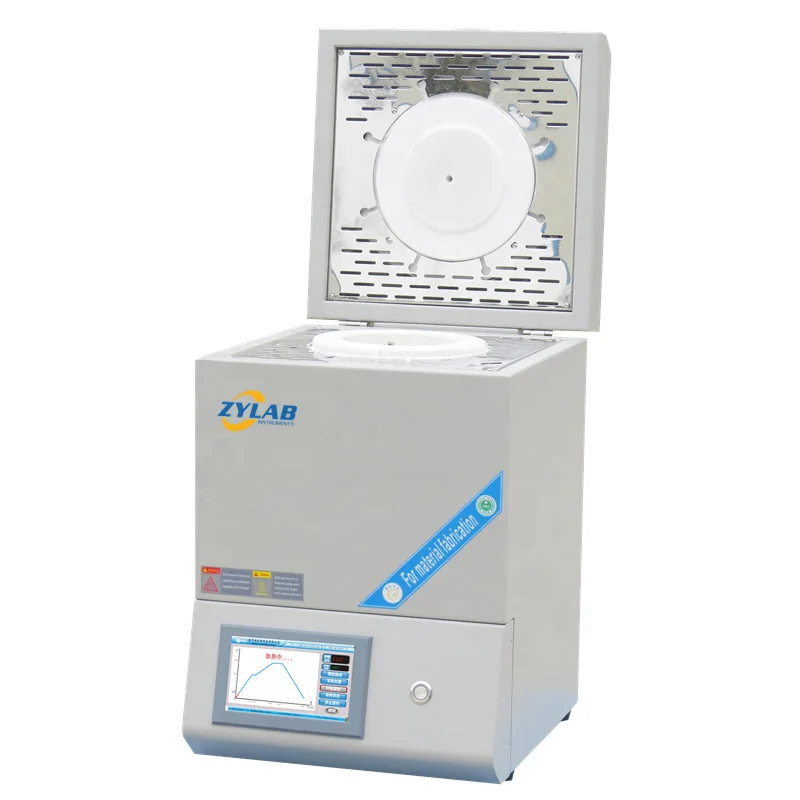

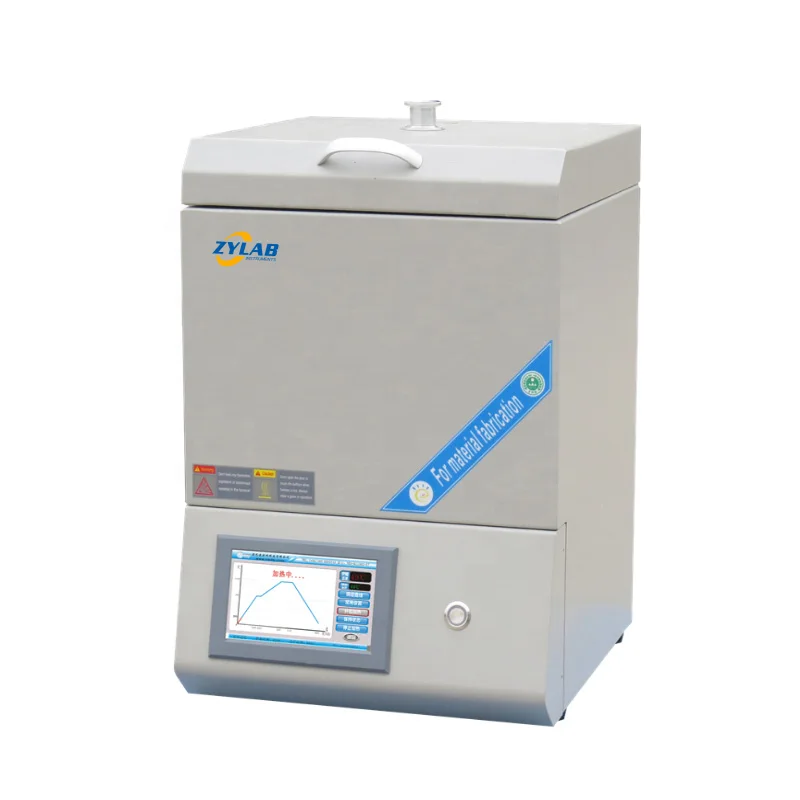

1200.C Crucible Furnace
Highlight Intelligent touch screen controller; Built-in alloy resistance wire ring distribution; Vacuum formed ceramic fiber furnace chamber; Upward opening door structure; Come with vent device. Applications Mainly used for high-temperature sintering, melting, and heat treatment of metal alloys, non-metallic...
1200.C Crucible Furnace
Introduction:
The 1200.C Crucible Furnace be widely used for high temperature sintering, melting and heat treatment of metal alloy, nonmetal material, ceramic material and other materials, ideal electric furnace for university, research institutes.
Adopts ferro – chromium aluminum alloy heating wire element doped with molybdenum.
The integrated shape design, coupled with the minimalist control mode, makes the 1200.C Crucible Furnace has a very high cost performance.
Main Features
1. Max. Temperature 1200C, working temperature RT-1100C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
6. Built-in alloy resistance wire ring distribution, the temperature is more uniform to obtain better effect.
7. Upturn door structure, pick and place materials convenient.
8. Vent hole carefully designed is the perfect solution to the waste gas during material sintering.
9. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
10. Low power consumable, exquisite structure and light weight, it is the ideal crucible furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This 1200.C Crucible Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | G1200-15IT |
|---|---|
| Furnace structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | Dia150*200mm (Optional big size: 240*240mm) |
| Max. temperature | 1200.C(<1hours) |
| Working temperature | RT-1100.C(continuing) |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20.C /min(Suggest: 10.C/min) |
| Thermocouple | K type |
| Temperature accuracy | +/- 1.C |
| Heating element | High quality alloy heating wire with excellent acid and corrosion resistance |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 2.5Kw |
| Dimension | 450(W)*590(H)*400(D)mm |
| Quantity / Net weight | 1set / 40kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
1200.C Crucible Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Well Type Lab Sintering Furnace 1600°C
Split-Type Mini Crucible Furnace for Lab Use
1700.C Crucible Furnace
1500.C Crucible Furnace
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Mini Vacuum Atmosphere Furnace for Glove Box
Laboratory Mini Rotary Oscillating Tube Furnace for Powder & Granular Material Calcination
Ordering 1200.C Crucible Furnace
What is 1200.C Crucible Furnace typically used for?
Highlight Intelligent touch screen controller; Built-in alloy resistance wire ring distribution; Vacuum formed ceramic fiber furnace chamber; Upward opening door structure; Come with vent device. Applications Mainly used for high-temperature sintering, melti
How quickly can 1200.C Crucible Furnace be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship 1200.C Crucible Furnace within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can 1200.C Crucible Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200.C Crucible Furnace?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering 1200.C Crucible Furnace?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For 1200.C Crucible Furnace
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
