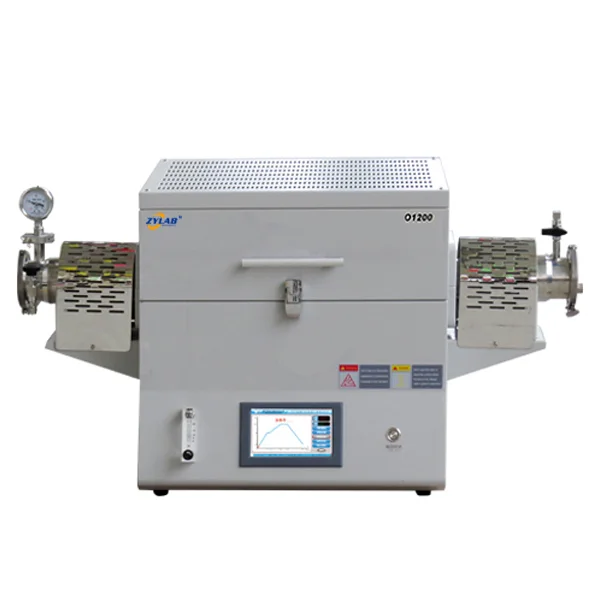

High-Precision Dual Zone Tube Furnace for Advanced Heat Treatment
Highlight 7” colored graphic touch panel; Can store and preset temperature curves; Come with gas flowmeter; Unique flange has a multi-function test hole. Has two temperature zones, each can be independently
Introduction
- Max temperature: 1200.C
- Max heating rate: 20.C/Min
- Chamber size(working space)：60mm x 200mm x 200mm(also supply other sizes)
- Controller：Smart PID
Key Features of Dual Zone Tube Furnace
1. High purity quartz tube as furnace tube, max. temperature 1200.C, continue working temperature Rt –1100.C.
2. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
3. 30 segments programmable and auto control.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6. By using special lining and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
9. Come with gas flowmeter, atmosphere sintering more convenient.
10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Two temperature zones, each can be independently controlled.
12. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs, also used in factory for small production.
Which Kinds of Industry Can Use This Dual Zone Tube Furnace?
Materials Science, Metallurgy, Chemistry, Environmental Science, Energy Research, University Labs, & R&D Centers, etc.
Applications of Dual Zone Tube Furnace
- Thermal Gradient Experiments:
Dual zone tube furnaces are used to create controlled temperature gradients within the sample, which is essential for material research. - Advanced Material Synthesis:
These furnaces are ideal for synthesizing ceramics, nanomaterials, and composite materials that require multi-stage heating processes. - Annealing and Heat Treatment:
Dual zone tube furnaces are suitable for processes requiring precise temperature control at different stages, such as stress relief, recrystallization, and sintering. - Diffusion and Reaction Studies:
They support solid-state diffusion experiments and gas-solid reactions where controlled temperature zones are essential. - Thermochemical Processes:
Widely used in catalytic reactions, oxidation studies, and reduction processes where varying temperatures are required. - Thin Film Deposition:
They assist in chemical vapor deposition (CVD) processes, ensuring uniform film growth across different temperature zones.
Dual zone tube furnaces offer flexibility and precise temperature control, making them highly suitable for research and industrial applications that require distinct temperature environments.
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | O1200-IIT |
|---|---|
| Chamber Model | Open |
| Chamber Material | Imported high quality alumina fiber refraction insulation |
| Heating Element | Imported high quality alloy heating wire |
| Max.temperature | 1200.C(<1hour) |
| Working Temperature | ≤1100.C |
| Heating Rate | ≤20.C/min(advice:10.C/min) |
| Heating Zone | Dual(2 zones) each can be independently controlled. |
| Length of Heating Zone | 200+200mm(optional 300+300mm) |
| Tube Material | High purity quartz tube |
| Tube Size | Φ60×1000(mm) Other optional sizes: Φ50×1000(mm) Φ80×1000(mm) Φ100×1000(mm) Φ60×1200(mm) Φ80×1200(mm) Φ100×1200(mm) Other sizes can be customized. |
| Sealing Mode | High quality stainless steel vacuum flange |
| Gas Tightness | 4.03×10-3Pa |
| Control Mode | Smart PID Control — 7″ intelligent touch screen controller |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve,30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Working Voltage | AC208-240V 50/60HZ |
| Standard Accessories | Quartz Tube, Vacuum Flange, Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
| Certificate | CE, ISO |
| Warranty | 12 months(not including consumable parts, such as quartz tube, heating elements, thermocouple), lifetime support. |

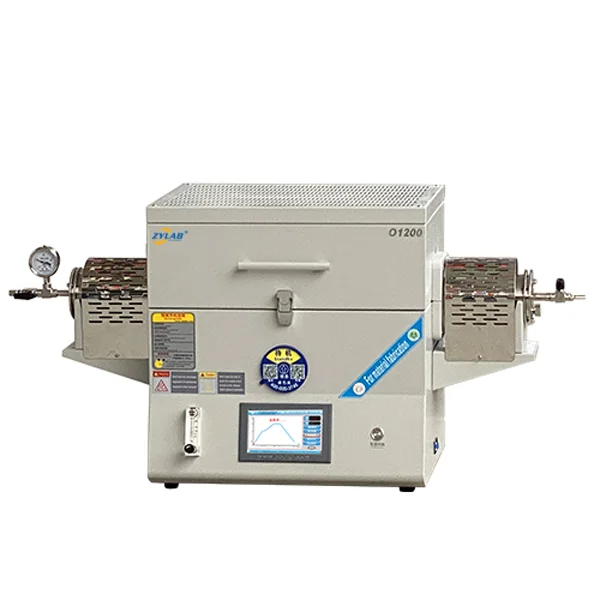

High-Precision Dual Zone Tube Furnace for Advanced Heat Treatment In Detail
