80L Top Loading Pottery Kiln with Full Ring Firing | High-Temperature Ceramic Kiln
A large-capacity, top-loading electric kiln engineered for high-temperature ceramic firing. Featuring full-ring heating, smart control, and durable construction, the ZYLAB 80L kiln is ideal for studios, schools, and ceramic workshops requiring consistent and efficient firing
Introduction
A large-capacity, top-loading electric kiln engineered for high-temperature ceramic firing. Featuring full-ring heating, smart control, and durable construction, the ZYLAB 80L kiln is ideal for studios, schools, and ceramic workshops requiring consistent and efficient firing results.
Key Features
80L Firing Chamber
Spacious chamber allows multiple pieces to be fired in a single batch — for example, up to 85 cups measuring 7 cm in diameter and 10 cm in height can be accommodated at once. With an internal height of 59.5 cm — ideal for medium to large-scale creations.Full Ring Firing Design

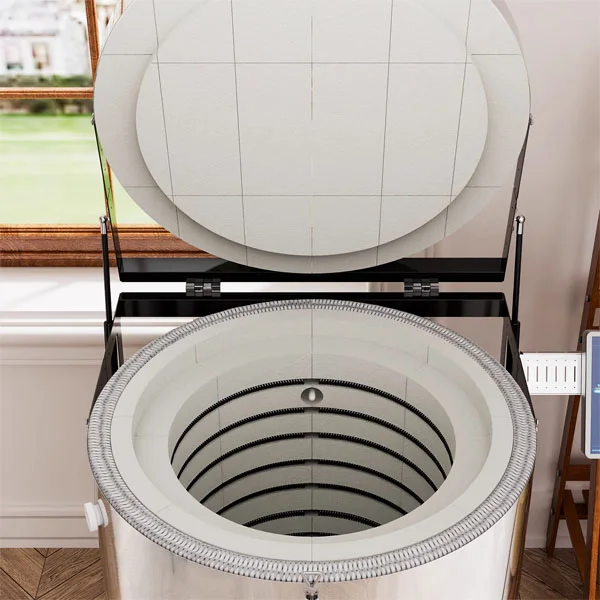

Advanced 360° ring-shaped heating system ensures even temperature distribution, reducing hot spots and improving firing consistency.Compact, Top-Loading Structure
Space-saving top-loading design with a fully circular inner chamber allows easy loading/unloading while maximizing internal space.Smart Control System
Custom-developed intelligent controller with visual menu interface and preset programs. Supports one-touch operation for multiple firing modes.Concealed Thermocouple Placement

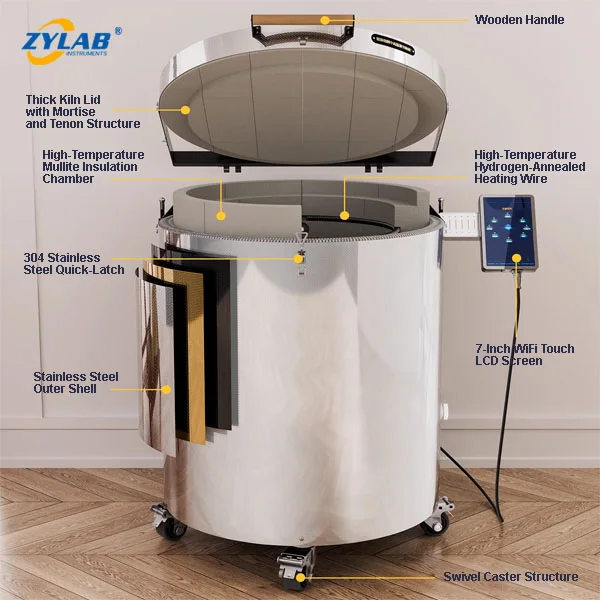

Integrated hidden thermocouple enhances space efficiency and prolongs temperature sensor lifespan.9.5cm Thick Mortise-and-Tenon Lid
Traditional mortise-and-tenon construction with reinforced insulation for superior heat retention and energy savings.- Lid Hover Function
When opened, the lid can stay suspended at multiple angles without falling, making it labor-saving and easy to operate. High-Temperature Hydrogen-Annealed Heating Elements
Durable and oxidation-resistant heater wires ensure long-term stable performance in high-temperature ceramic applications.Dual Language Interface
User-friendly bilingual (English/Chinese) touchscreen makes it easy to operate for both domestic and international users.Insulated rubber swivel casters
Make moving and handling easier, offering greater convenience for home use.
Applications of 80L Top Loading Pottery Kiln
Ceramic Art Studios
Pottery Teaching Labs
Home Pottery Workshops
Educational Institutions & Art Schools
Standard Accessories
Our 80L Top Loading Pottery Kiln comes with a complete set of standard accessories to meet your basic pottery firing needs. With these accessories, you can start firing your ceramics immediately after receiving the kiln.
Standard Accessories Include:
Shelves:
-
4 × 35 cm round kiln shelves
4 × half-round kiln shelves
Kiln Posts:
12 × 1 cm posts
12 × 5 cm posts
12 × 10 cm posts
Safety Equipment:
1 pair of high-temperature gloves
These accessories allow flexible stacking and arrangement of your pottery pieces, ensuring even heating and optimal firing results.
Cooling Tips
Above 1000°C: Open both ventilation holes to accelerate heat dissipation.
Around 300°C: Slightly crack open the kiln lid (5–10 cm gap) for controlled cooling.
Below 200°C: Turn off the power and safely remove your ceramic artworks.
Installation Requirements
63A circuit breaker (without residual current device).
Use copper core wire with a cross-sectional area ≥ 10 mm² (national standard compliant).
Turnkey Solution Are Available:(optional)
Equipment (pottery wheel ,drying oven, glazing machines, air pump, pressing machine, etc.)
Clay
Glaze
Pigments
Tools
Mold
etc.
(Details, pls contact with our expert)
30L Top Loading Pottery Kiln
60L Top Loading Pottery Kiln
-
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | RK-80 |
|---|---|
| Chamber Volume | 80L (0.08 m³) |
| Power Rating | 8.8 kW |
| Voltage | AC 220V / AC 380V |
| Internal Dimensions | Ø420 mm × H595 mm |
| External Dimensions | Height: 965 mm |
| Diameter: 650 mm (855 mm with handles) | |
| Shelf Size | Ø350 mm round shelf plate |
| Weight | Net: ~163 kg |
| Gross: ~217 kg (incl. packaging) | |
| Max Temperature | 1300°C |
| Working Temperature | Up to 1280°C for continuous operation |
| Heating Rate | 7°C/min |
| Heating Element | Ø14 mm hydrogen-annealed alloy wires |
| Insulation Thickness | Side: 120 mm |
| Bottom: 130 mm | |
| Top: 95 mm | |
| Viewing/Exhaust Port | Ø18 mm |
| Power Consumption per Firing | ~54 kWh (empty chamber test) |
| Insulation Resistance | 0.6–2 MΩ |
| Forward Pressure Resistance | >500 kPa |
| Reverse Voltage Resistance | >2 MPa |
| Signal Feedback | >0.5 s/cycle |
| Thermal Conductivity (Curved Surface) | ≤0.2 W/m³ |
