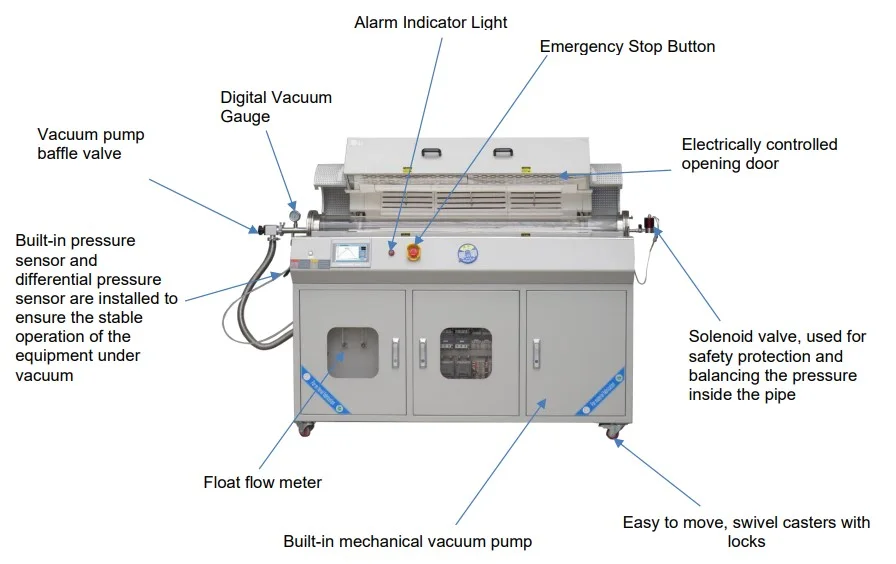

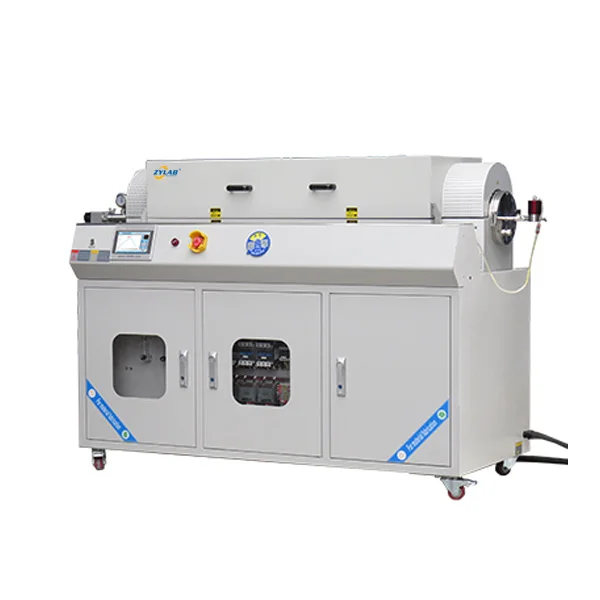

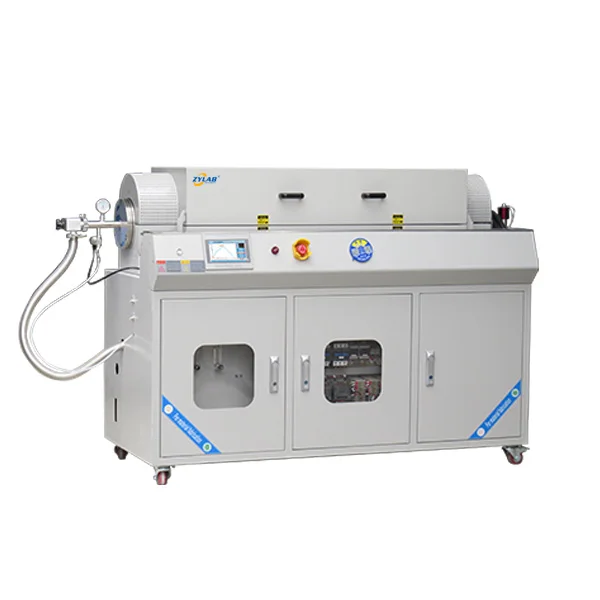

OD120mm 3 Zone Nano CVD Furnace

Introduction

The 3 Zone Nano CVD Furnace is an advanced chemical vapor deposition system, featuring three independent heating zones capable of precisely controlling temperature gradients across different regions, facilitating the synthesis and growth of nano-materials.

The ZYLAB Nano CVD Furnace offers with a flexible operating temperature of up to 1200°C, it integrates multiple temperature zone controllers into an intelligent system, allowing all parameters to be conveniently set via a touchscreen interface. Equipped with built-in gas flow meters, the furnace facilitates convenient atmosphere sintering. Its precision gas delivery system ensures accurate control of the gas phase environment to meet the requirements of nano-material growth. Additionally, real-time monitoring and control systems enable precise regulation of experimental conditions, providing efficient and reliable support for nano-material preparation.

Features and Benefits

1. High purity quartz tube as furnace tube, Max. Temperature 1200.C(<1hour), continue working temperature Rt –1100.C.
2. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
3. 30 segments programmable and auto control.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
9. Come with gas flowmeter, atmosphere sintering more convenient.
10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Three temperature zones, and each temperature zone can operate independently.
12. Can add modules to contol and download data remotely(optional).
13. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs, also used in factory for small production.

Optional

Additional tubes: high purity quartz tube Dia 120*1400mm
Quartz stands: quartz curcible(as requirement)

Applications

MoS2 Growth: Our three-zone CVD furnace enables the vertical or horizontal growth of MoS2 by precisely controlling temperature gradients and gas phase composition across different temperature zones, resulting in MoS2 flakes with desired morphology and crystal structure.

Graphene Growth: It provides suitable gas phase environment and temperature gradients to promote graphene growth. By controlling the growth conditions, the number of layers, lattice structure, and defect density of graphene can be modulated, obtaining graphene materials with desired properties.

hBN Growth: The three-zone CVD furnace can provide appropriate gas phase composition and temperature conditions to achieve high-quality hBN growth. Through precise control, hBN flakes with high uniformity and excellent lattice structure can be obtained.

Carbon Nanotube (CNT) Growth: For one-dimensional materials such as carbon nanotubes, it provides suitable carbon source gas phase and temperature conditions to facilitate the aggregation and growth of carbon atoms on the catalyst surface, thus realizing the preparation of carbon nanotubes. By controlling the growth conditions and catalyst selection, the diameter, length, and structural characteristics of carbon nanotubes can be adjusted to meet various application requirements.
