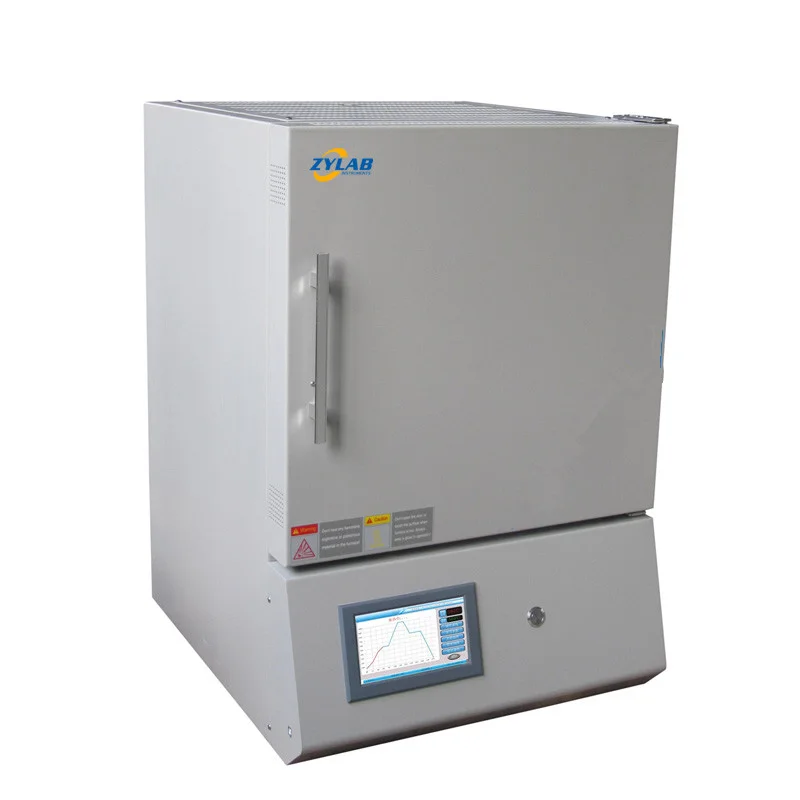

Laboratory Muffle Furnace 1500.C
Highlight Intelligent touch screen controller; Top quality furnace lining and high purity sic heating element； Vacuum formed ceramic fiber furnace chamber; Come with vent
Introduction
The first-class workmanship and using high-quality materials, combined with ease of operation, make the Muffle Furnace 1500.C all-rounders in research and the laboratory, such as sintering, melting, annealing, heating, test, etc heat treatment.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more simple. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.
Main Features of Muffle Furnace 1500.C
1. Max. Temperature 1500C, working temperature RT-1450C.

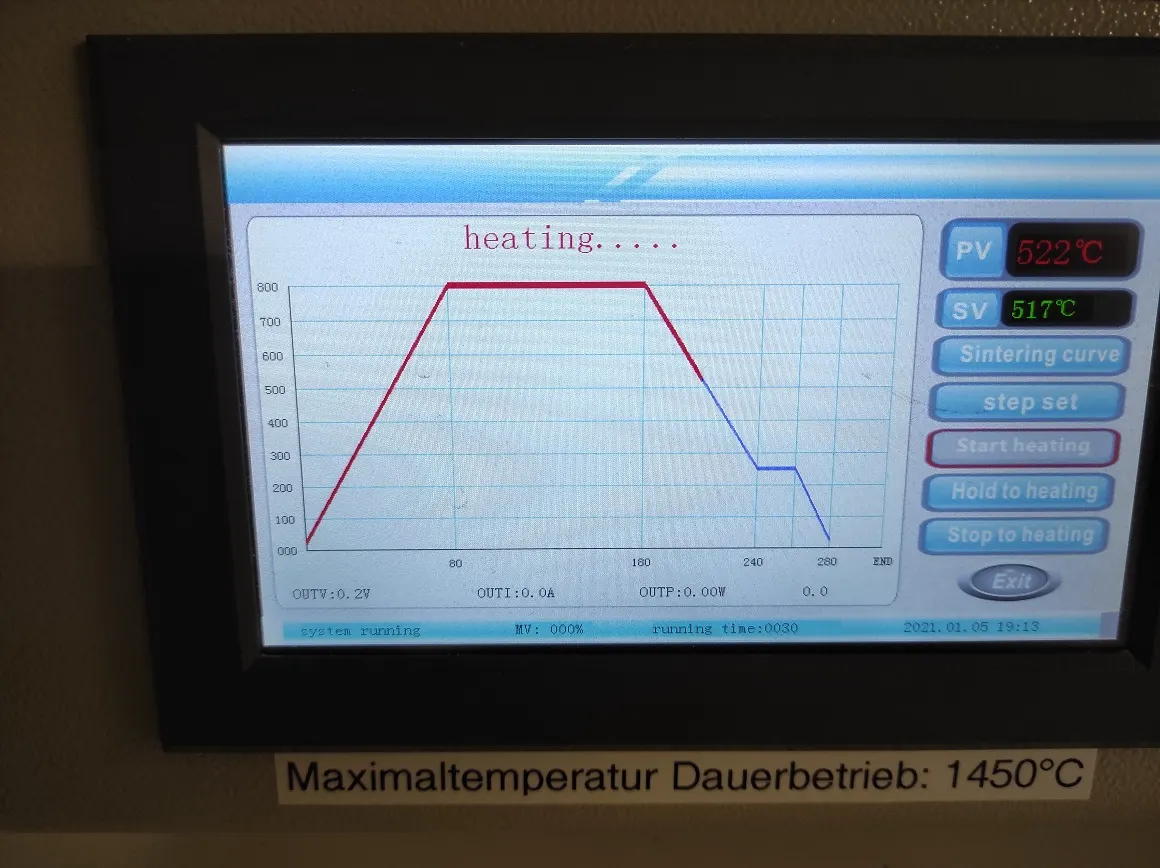

2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.

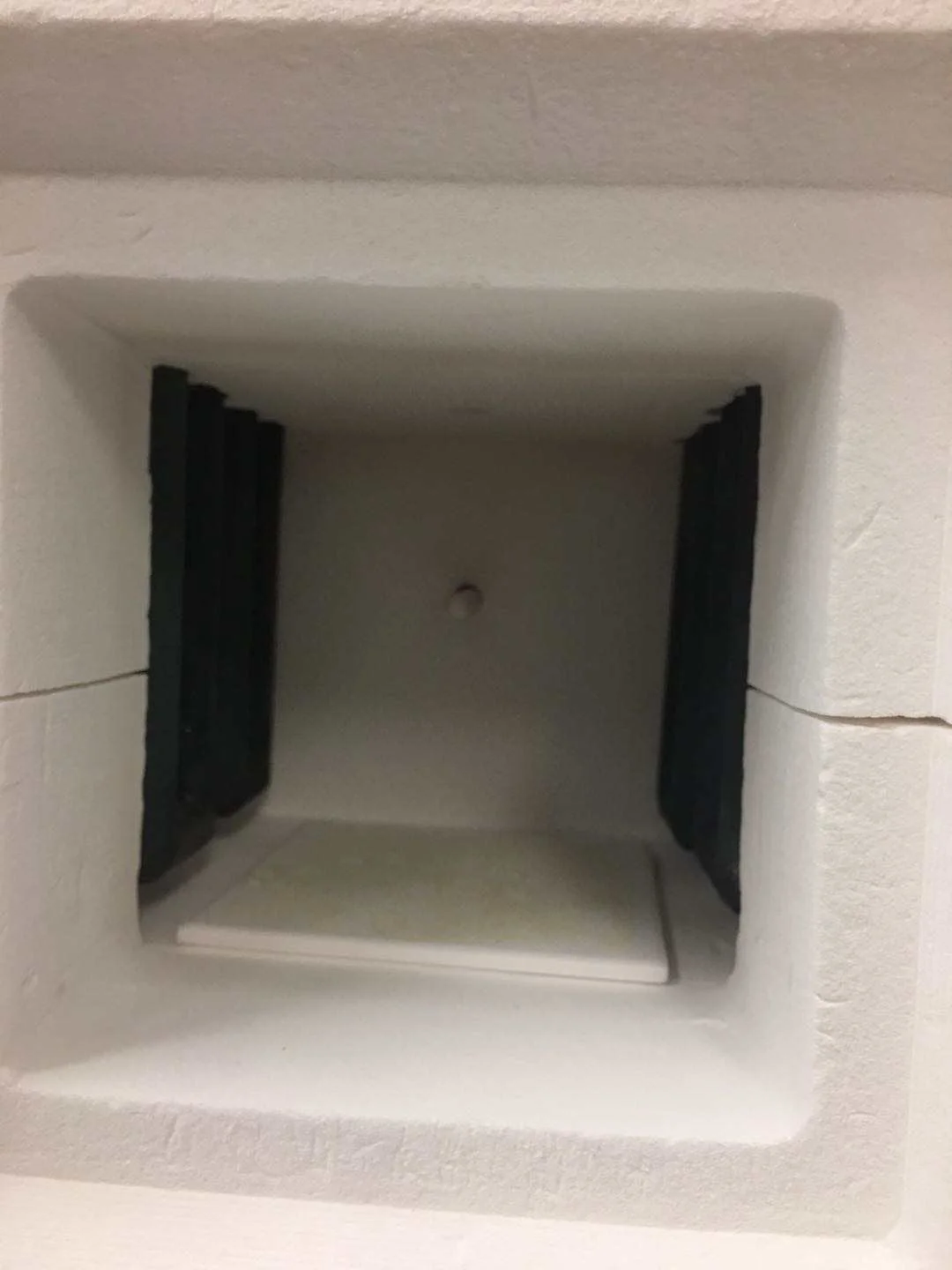

4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and top quality sic heating element with excellent acid and corrosion resistance, products are protected against chemical contamination at the best and long service life.

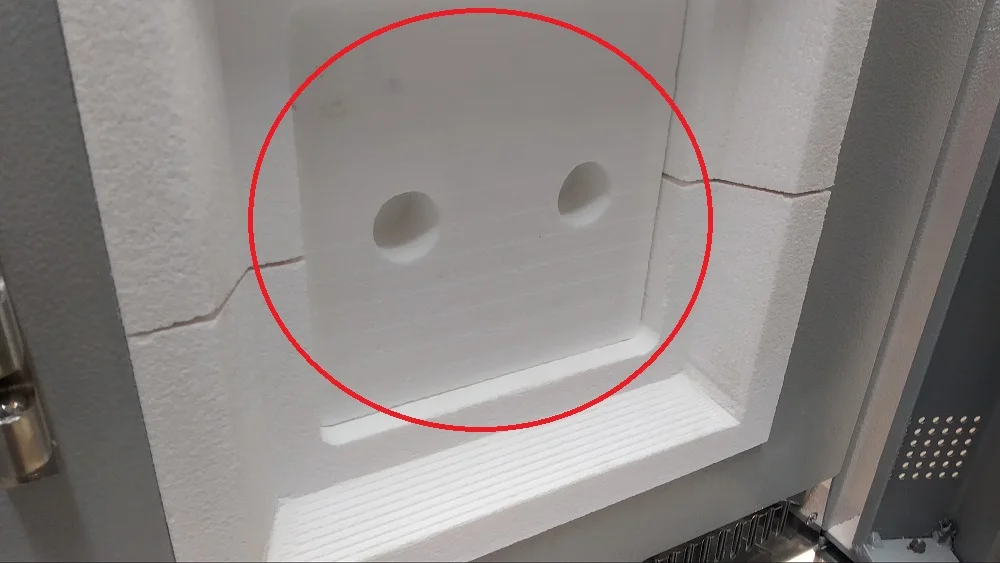

6. Vent hole carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This Muffle Furnace 1500.C?
Universities, Chemistry, Material Science, New Energy Research, Metallurgy, Electronics, Ceramic etc.
Applications
- Materials Research
- Annealing, sintering, and heat treatment of metals and ceramics
- Phase transition and thermal stability studies
- Chemical Analysis
- Ash content determination (plastics, rubber, coal, food, etc.)
- Loss on Ignition (LOI) tests for soils, cement, and minerals
- Gravimetric analysis after high-temperature processing
- Ceramic and Glass Industries
- Sintering of ceramic components (alumina, zirconia, etc.)
- Glass melting, fusing, and thermal conditioning
- Electronics and Semiconductor
- Wafer annealing and stress relief
- Firing and sintering thick-film circuits on substrates
- Environmental Testing
- Determination of organic content in soil and sludge
- Waste material analysis (combustible vs non-combustible fractions)
- Powder Metallurgy
- Debinding and pre-sintering of metal and ceramic powders
- Burnout of binders in molded or 3D-printed parts
Read Our Blog for More Content
Muffle Furnaces and Tube Furnaces: Which One Suits Your Needs?
Muffle Furnace Usage Guide – ZYLAB
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1500-12IT |
|---|---|
| Furnace structure | •1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |

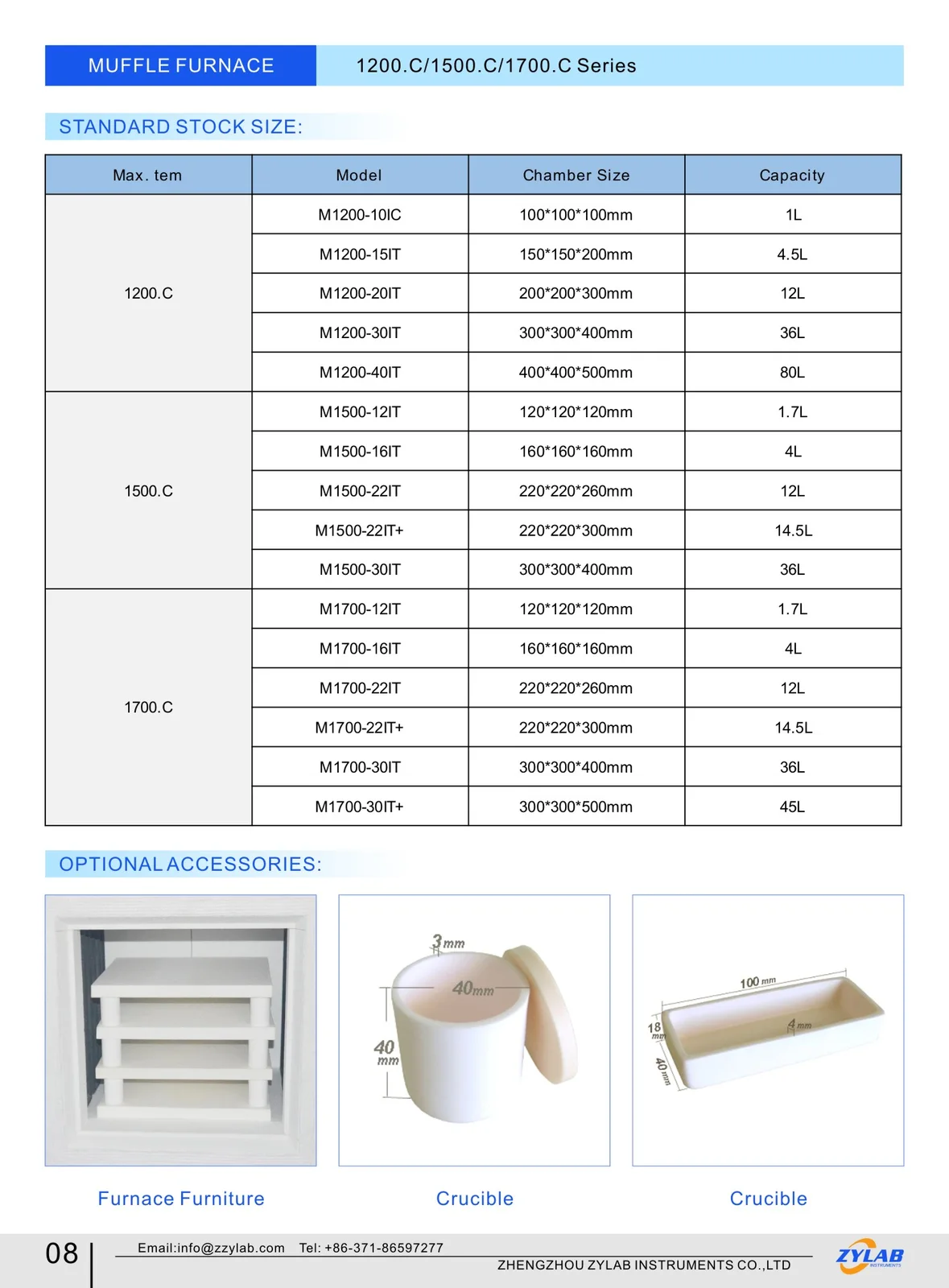

| Chamber size (working space) | 120*120*120mm Also supply other sizes:160*160*160mm, 220*220*260mm, 220*220*300mm, 300*300*400mm. |
| Max. temperature | 1500.C(<1hours) |
| Working temperature | RT-1450.C(continuing) |
| Intelligent Touch Screen Temperature controller | 1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 1℃/H~20℃/Min |
| Thermocouple | S type |
| Temperature accuracy | +/- 1.C |
| Heating element | Special high-density and high-purity silicon carbide rod with excellent acid and corrosion resistance |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 1.5Kw |
| Dimension | 390(W)*630(H)*430(D)mm |
| Quantity / Net weight | 1set / 50kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
Laboratory Muffle Furnace 1500.C In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Vacuum Muffle Furnace with Quartz Chamber 1200°C
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
Large Capacity Muffle Furnace – 80L Heating Chamber
High-Capacity Muffle Furnace | 36L Vertical Laboratory Furnace up to 1200°C
High-Quality Muffle Furnace for Laboratory Heat Treatment
5-Side Heating Muffle Furnace | High Uniformity Heat Treatment Furnace
27L Muffle Furnace | High-Capacity 1200°C Laboratory Furnace
Ordering Laboratory Muffle Furnace 1500.C
What is Laboratory Muffle Furnace 1500.C typically used for?
Highlight Intelligent touch screen controller; Top quality furnace lining and high purity sic heating element； Vacuum formed ceramic fiber furnace chamber; Come with vent
Can Laboratory Muffle Furnace 1500.C be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Laboratory Muffle Furnace 1500.C?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Laboratory Muffle Furnace 1500.C?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Laboratory Muffle Furnace 1500.C packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For Laboratory Muffle Furnace 1500.C
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
