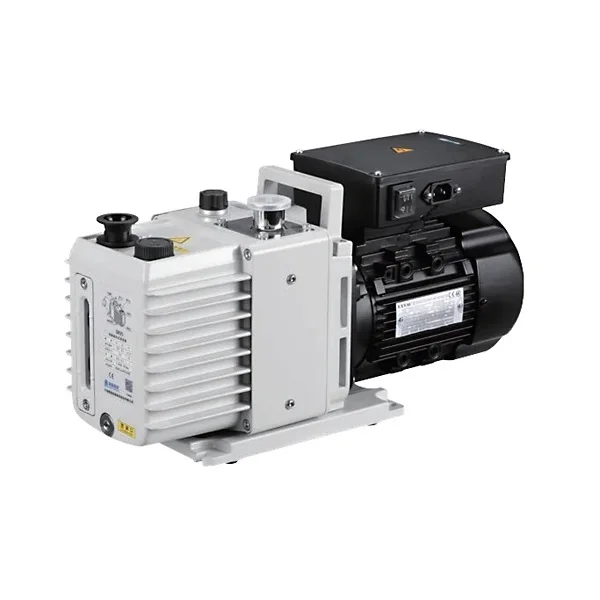

Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump
The Mechanical Vacuum Pump is a two-stage, oil-sealed rotary vane pump with two cylinders that compress air twice, providing a higher vacuum level compared to single-stage pumps. It is ideal for both laboratory and industrial applications where low to medium vacuum levels are
Introduction
The Mechanical Vacuum Pump is a two-stage, oil-sealed rotary vane pump with two cylinders that compress air twice, providing a higher vacuum level compared to single-stage pumps. It is ideal for both laboratory and industrial applications where low to medium vacuum levels are required.
Key Features and Benefits
- Quiet and Durable: Non-spring rotary vanes ensure low noise, minimal vibration, and an extended service life.
- No Oil Backflow: A built-in oil check valve prevents oil from flowing back into the system, keeping it clean and efficient.
- Long-Term Operation: Equipped with a forced-fed oil pump, this unit can run continuously at atmospheric pressure without interruption.
- Efficient Cooling: Multiple cooling methods, including air, oil, and water cooling, ensure stable performance and long-lasting operation.
- Easy Maintenance: Its thoughtful design allows for quick assembly, disassembly, and easy maintenance, saving time and effort.
- Certified Quality: CE certified for reliability and safety.
Applications of Mechanical Vacuum Pump
- Laboratory Research: Ideal for experiments requiring precise vacuum levels, such as material testing and chemical reactions.
- Industrial Processes: Suitable for applications in manufacturing, such as packaging, coating, and drying processes where low to medium vacuum is essential.
- Medical Devices: Employed in the production and testing of medical equipment, ensuring sterile environments.
- Semiconductor Manufacturing: Critical for processes like thin-film deposition and etching, where controlled vacuum conditions are necessary.
- Gas Analysis: Used in laboratories for gas sampling and analysis, requiring precise vacuum levels to ensure accurate results.
- Environmental Testing: Used in laboratories for soil and water testing, allowing for accurate sampling and analysis under controlled conditions.
- Material Science: Used in experimental setups for various new material research applications that demand accurate vacuum control and stability.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | DRV3 | DRV5 | DRV10 | DRV16 | ||
|---|---|---|---|---|---|---|
| Pumping Speed | 50Hz | m³/h | 3.6 | 5.4 | 9.9 | 14.4 |
| 60Hz | m³/h | 4.3 | 6.5 | 12 | 17.4 | |
| Ultimate Pressure | Gas Ballast Off | Pa | ≤5×10-¹ | |||
| Gas Ballast On | Pa | ≤5 | ||||
| Motor Power (4p) | 380V(3ph) | kW | 0.4 | 0.55 | ||
| 220V(1ph) | kW | |||||
| Required Oil | L | 0.7 | 1.1 | 1.2 | ||
| Inlet | KF25/KF16 | KF25/KF40 | ||||
| Outlet | KF25 | |||||
| Weight | kg | 22.5 | 25 | 27 |
Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
High-Performance Two-Stage Rotary Vane Vacuum Pump for Laboratory
High-Precision Digital Vacuum Gauge
High-Speed Direct-Coupled Lab Mechanical Vacuum Pump – 5×10⁻² Pa Ultimate Pressure
Lab 10pa Direct-Drive Rotary Vane Vacuum Pump for Tube Furnace
4.4 × 10⁻³ Pa High Vacuum System Molecular Pump Unit
Rotary Vane Vacuum Pump for Vacuum Glove Box
MP-401 Top Quality Diaphragm Vacuum Pump with Special Filter
GM-2 High Speed 4cfm Diaphragm Vacuum Pump
Ordering Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump
What is Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump typically used for?
The Mechanical Vacuum Pump is a two-stage, oil-sealed rotary vane pump with two cylinders that compress air twice, providing a higher vacuum level compared to single-stage pumps. It is ideal for both laboratory and industrial applications where low to medium v
Can Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Lab 5×10-¹pa High-speed Direct-coupled Mechanical Vacuum Pump packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
