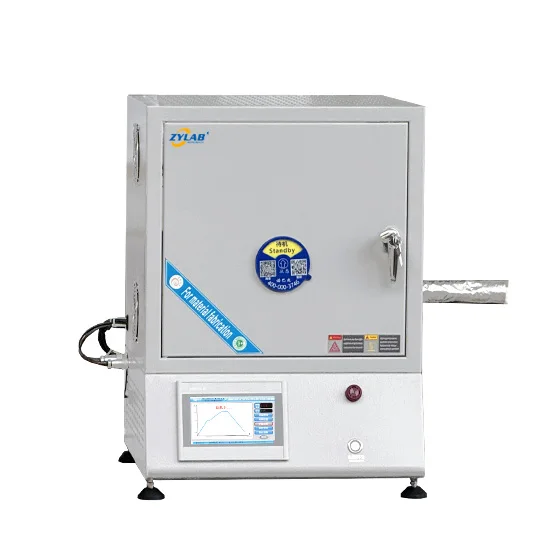

High-Pressure Hydrogen Preheating and Purge System for Laboratory Applications
The ZYLAB High-Pressure Hydrogen Preheating and Purge System is engineered for laboratory and research applications that require gas heating and pressurization under high-temperature and high-pressure conditions. By integrating resistance wire heating tubes and high-performance thermal insulation, the system ensures...
Introduction
The ZYLAB High-Pressure Hydrogen Preheating and Purge System is engineered for laboratory and research applications that require gas heating and pressurization under high-temperature and high-pressure conditions.
By integrating resistance wire heating tubes and high-performance thermal insulation, the system ensures rapid, uniform, and energy-efficient hydrogen preheating before entering reactors, furnaces, or other processing equipment.
The gas pipelines are made from 310S stainless steel, offering exceptional durability and stability in demanding high-temperature hydrogen environments.
Key Features & Advantages
1. Efficient Heating Element – Resistance Wire Heating Tubes
Fast thermal response with precise temperature control.
Capable of heating hydrogen up to 1000°C or higher in a short time.
Delivers stable and uniform heat distribution, meeting stringent process requirements in applications such as metal heat treatment, advanced materials processing, and chemical synthesis.
2. Advanced Thermal Insulation – Alumina Fiber Cotton
Utilizes high-purity alumina fiber insulation with extremely low thermal conductivity.
Excellent high-temperature resistance, withstanding up to 1400°C.
Minimizes heat loss, maintains hydrogen temperature during transfer, and reduces overall energy consumption.
3. High-Temperature & High-Pressure Pipeline – 310S Stainless Steel
High strength to withstand high-pressure hydrogen delivery.
Superior high-temperature resistance:
-
Stable in oxidizing environments up to 1150°C.
Stable in reducing environments up to 1035°C.
Excellent corrosion resistance against oxidation and carburization, ensuring long service life even in extreme hydrogen conditions.
Applications
Hydrogen atmosphere furnaces for heat treatment and sintering.
CVD (Chemical Vapor Deposition) reactors.
Advanced materials research involving hydrogen environments.
Metal reduction and annealing processes.
Any high-temperature, high-pressure hydrogen processing requiring precise thermal control.
-
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Power Supply | AC 220V, 50Hz | |
|---|---|---|
| Rated Power | 3.2 kW | |
| Heating Element | 310S stainless steel rod heater, Ø15.8 × 319 mm | |
| Temperature Sensor Type | K-type thermocouple, Ø1 × 600 mm | |
| Maximum Temperature (Tmax) | 1000°C | |
| Recommended Heating Rate | ≤ 5°C/min | |
| Mass Flow Controller | S500, 5 SLM, Ø6.35 mm double ferrule fitting, 2 m open-end cable, fluororubber sealing, nitrogen calibrated | |
| Gas Inlet/Outlet | Ø10 mm double ferrule fitting | |
| Furnace Body Dimensions (without stand) | L550 × H700 × D565 mm | |
| Furnace Stand Dimensions | L600 × H700 × D600 mm | |
| Control System | 1. Sintering process curve setting: Dynamic display of set curves, supports storage of multiple sintering curves, each fully customizable. 2. Scheduled sintering: Enables unattended operation. 3. Real-time monitoring: Displays sintering power, voltage, and records sintering data with export capability for paperless logging. 4. Remote control: Allows remote operation and real-time equipment status monitoring. 5. Temperature correction: Non-linear correction of the temperature difference between main control temperature and sample temperature throughout the process. | |
| Temperature Accuracy | ±1°C | |
| Net Weight | Approx. 50 kg |
