Glass Melting Crucible for Laboratory Experiments – High Thermal Stability and Chemical Resistance
Glass melting crucible is a specialized container designed for melting glass or other materials at high temperatures. These crucibles are made from heat-resistant, durable materials capable of withstanding the intense heat required to melt glass, which typically requires temperatures of around 1,000°C to 1,600°C ,...
Description
Glass melting crucible is a specialized container designed for melting glass or other materials at high temperatures.
These crucibles are made from heat-resistant, durable materials capable of withstanding the intense heat required to melt glass, which typically requires temperatures of around 1,000°C to 1,600°C , depending on the type of glass.

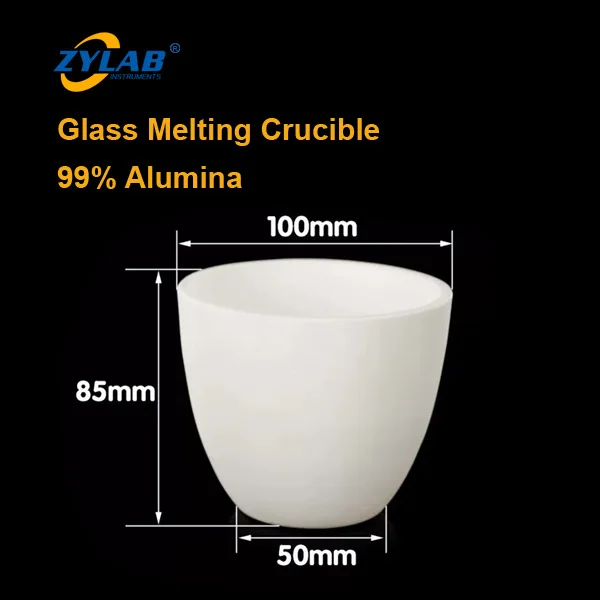

Dimensions: φ100×85 mm
Alumina Purity: >99%
Continuous operating temperature: ≤1600°C
We offer customized services according to your requirements!
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
How to Use Alumina Crucibles?
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
