Tube Furnace Gas Safety Protection Device
This Tube Furnace Gas Safety Protection Device ensures safety through pressure detection within the furnace tube, offering functions such as gas interruption and temperature reduction. Additionally, it can ignite the discharged combustible tail gas, equipped with a dual-path ignition protection system to ensure...
Introduction

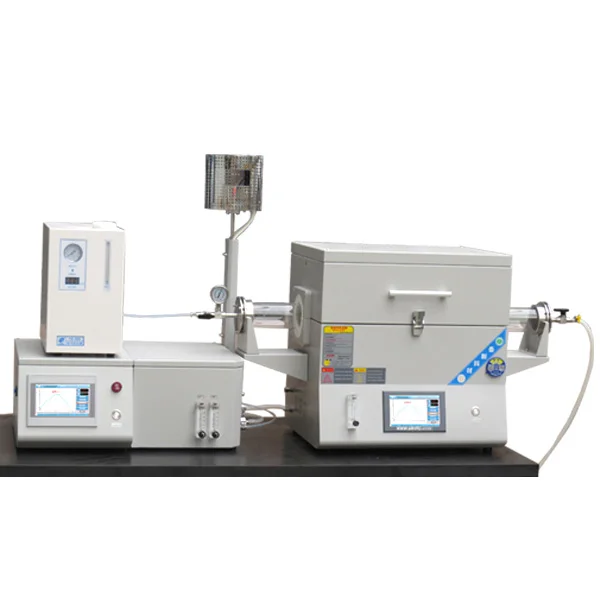

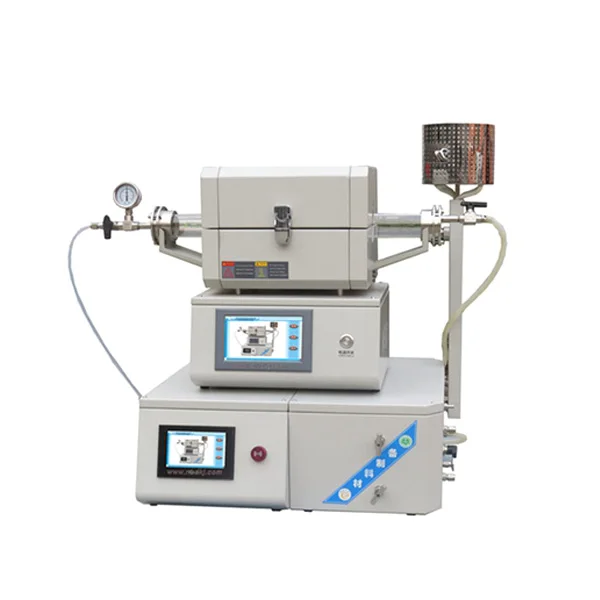

This Tube Furnace Gas Safety Protection Device ensures safety through pressure detection within the furnace tube, offering functions such as gas interruption and temperature reduction. Additionally, it can ignite the discharged combustible tail gas, equipped with a dual-path ignition protection system to ensure thorough combustion of the released gases. When used in conjunction with a tube furnace, it facilitates automatic cleaning and replacement of gases within the furnace tube.
Features of Gas Safety Protection Device
- Automatic cycling for vacuum cleaning and gas delivery.
- Dual automatic igniters at the exhaust end, ensuring one is active while the other is in standby for protection, guaranteeing thorough combustion of combustible gases and stable equipment operation.
- Pipeline self-extinguishing anti-flashback device, rigorously controlling the backflow of combustible gases.
- Multiple working modes are available for selection, and customization options are also available upon request.
- Embedded operating system with an interchangeable graphical interface in both Chinese and English. The 7-inch true-color touchscreen allows for intelligent human-machine dialogue, featuring a non-linear temperature correction pattern.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | 2AQD | |
|---|---|---|
| Control system | ||
| Interface size | 1/4” Double Ferrule Connector | |
| Pipeline Pressure | -0.1-0.15MPa | |
| Weight | 20KG | |
| Usage Notes | 1.Ensure the absolute pressure inside the pipeline is <0.15 MPa. 2.Perform a leak test after connecting the gas holder to the gas cylinder. | |
| Service Support | One-year warranty with lifetime support (consumables not included within the warranty scope) |
Tube Furnace Gas Safety Protection Device In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
