Economy Muffle Furnace | 1200°C Lab Furnace for Routine Thermal Processing
ZYLAB Economy Muffle Furnace series offers an affordable yet reliable solution for laboratories and workshops needing consistent heat treatment up to 1200°C. Built with energy-efficient ceramic fiber insulation, precise temperature control, and a compact benchtop design, it’s ideal for everyday use in ashing,...
Introduction
ZYLAB Economy Muffle Furnace series offers an affordable yet reliable solution for laboratories and workshops needing consistent heat treatment up to 1200°C. Built with energy-efficient ceramic fiber insulation, precise temperature control, and a compact benchtop design, it’s ideal for everyday use in ashing, sintering, heat treatment, and material testing.
Key Features
Max Temperature 1200°C: Working range up to 1100°C, suitable for most standard thermal processes.
Economical Design: High cost-performance ratio ideal for routine lab operations and budget-conscious facilities.
PID Digital Temperature Controller: Stable temperature control with ±1°C accuracy for repeatable results.
Durable Heating Elements: High-quality alloy wires resist oxidation, ensuring longer operational life.
Compact and Lightweight: Space-saving benchtop unit for easy integration into lab environments.
High-Quality Ceramic Fiber Chamber: Low heat loss, energy-saving, and resistant to thermal shock.
Over-Temperature Protection: Built-in safety system automatically shuts down in case of overheating.

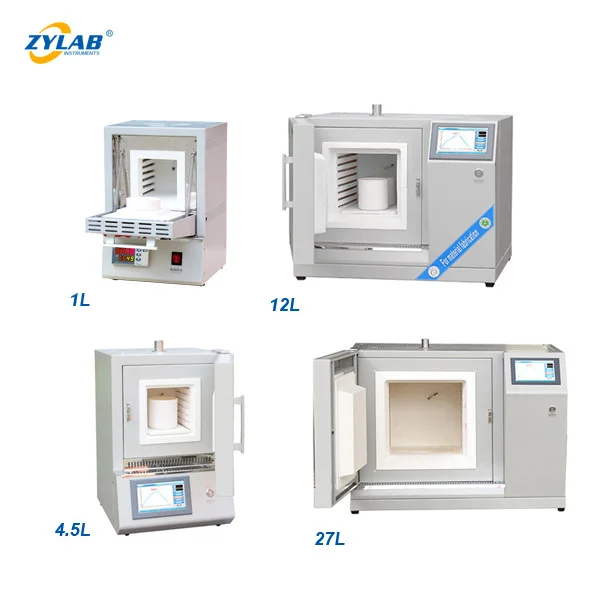

Multiple Chamber Sizes Available: Volume options from 1L to 27L for flexible lab workflows.
Applications of 1200°C Compact Muffle Furnace
1. Material Science & Chemistry
- Ashing of polymers, plastics, coal, and food
- Calcination and thermal decomposition
- Ceramic sintering and pre-heating
2. Industrial QC & Small-Scale Production
- Heat treatment of metal components
- Burnout of wax or resin molds
- Testing of thermal stability in materials
3. Education & Research
- Routine thermal analysis in teaching labs
- LOI experiments and sample preparation
- Entry-level furnace for student use
Why Choose ZYLAB Compact Muffle Furnace?
1. Reliable Quality at a Reasonable Price
Our economy muffle furnaces are built with high-performance components and strict quality control, offering exceptional durability and value for money.
2. Trusted by Global Laboratories
From universities to industrial labs, ZYLAB is a preferred partner worldwide for affordable and dependable thermal processing equipment.
3. Flexible Customization
Need a special chamber size, communication interface, or compatible gas inlet? We support tailor-made configurations based on your application needs.
4. Fast Delivery & Professional Support
Most standard models ship within 5–7 working days, and our support team is ready to assist you before and after purchase.
FAQ
Q: What is the maximum temperature of the ZYLAB Economy Muffle Furnace?
A: The maximum temperature is 1200°C, with a recommended continuous working range up to 1100°C for optimal performance and longevity.
Q: Can I customize the chamber size or voltage?
A: Yes, ZYLAB offers customizable chamber volumes and voltage options (e.g., 110V/220V) to match your specific laboratory or regional requirements.
Q: What is included in the standard delivery?
A: Each ZYLAB Economy Muffle Furnace comes with a complete starter kit, including:
furnace body, power cable, thermocouple, heating elements, user manual, ceramic pad, crucible tongs, and a basic tool kit.
All essential components are provided, allowing users to start using the furnace immediately upon delivery, without the need for additional accessories.
Q: Do you offer warranty and support?
A: Yes. All ZYLAB Economy Muffle Furnaces come with a 18-month warranty and lifetime technical support from our expert team.
For More Content
Muffle Furnaces and Tube Furnaces: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-10 | M1200-15 | M1200-20 | M1200-30 |
|---|---|---|---|---|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | |||
| Max. Power | 1KW | 3KW | 4KW | 7KW |
| Maximum Temperature | 1200°C (for ≤1 hour) | |||
| Continuous Working Temp | 1100°C (continuous) | |||
| Max Heating Rate | ≤20°C/min | |||
| Chamber Size | 100*100*100 mm | 150*150*200 mm | 200*200*300 mm | 300*300*300 mm |
| Overall Dimensions | 260(W)*400(H)*280(D) mm | 390(W)*600(H)*430(D)mm | 650(W)*520(H)*600(D)mm | 860(W)*650(H)*670(D)mm |
| Temperature Controller | Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection. | |||
| Temperature Accuracy | ±1°C | |||
| Heating Element | Mo-doped Fe-Cr-Al alloy heating wire | |||
| Atmosphere Protection Box (Optional) | Designed to create a controlled atmosphere inside the chamber. Prevents oxidation, contamination, and undesired reactions during heating. Customizable sizes available. | |||
| Net Weight | 12 kg | 40 kg | 60 kg | 120 kg |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | |||
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
