Customizable Cylindrical Alumina Crucible with Cover for High-Temperature Experiments
ZYLAB Cylindrical Alumina Crucible with Cover is a high-temperature container made from alumina ceramic with a purity exceeding 99%. Its cylindrical shape ensures uniform heat distribution, making it ideal for laboratory and industrial applications, such as material synthesis, chemical analysis, and high-temperature...
Product Details
ZYLAB Cylindrical Alumina Crucible with Cover is a high-temperature container made from alumina ceramic with a purity exceeding 99%.
Its cylindrical shape ensures uniform heat distribution, making it ideal for laboratory and industrial applications, such as material synthesis, chemical analysis, and high-temperature reactions.
The included cover helps minimize contamination and material loss while maintaining a controlled environment during experiments.
This crucible is widely used in muffle furnaces, tube furnaces, and other heating equipment where high purity, thermal stability, and durability are critical.
Alumina Purity: >99%
Maximum temperature resistance: 1750°C
Continuous operating temperature: ≤1600°C
The lid can be purchased separately.
We offer customized services according to your requirements!
How to Use Alumina Crucibles？
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
Cylindrical Alumina Crucible Related Products
99% Alumina Conical Muffle Furnace Crucible with Lid
Alumina (Al2O3) Boat Crucibles with Covers
Square Crucible with Lid for Muffle Furnace
Alumina Kiln Furniture for Muffle Furnace
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Cylindrical Alumina Crucible with cover Specification Table (UoM：mm) | |||
|---|---|---|---|
| (φ10*10) 0.4ml | (φ10*50) 2ml | (φ10*60) 2.5ml | (φ11*20) 1.2ml |
| (φ12*12) 0.8ml | (φ12*40) 3ml | (φ14*45) 4ml | (φ16*20) 2ml |

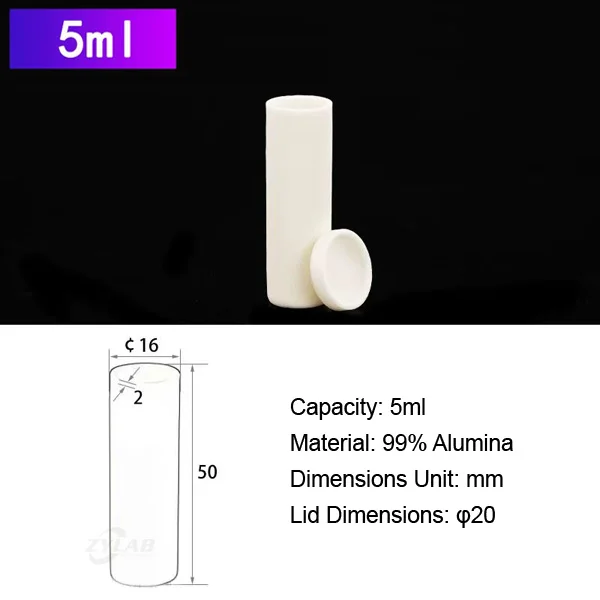

| (φ16*28) 3.5ml | (φ16*50) 5ml | (φ16*56) 8ml | (φ16*70) 9ml |
| (φ18*26) 3.5ml | (φ19*35) 6.5ml | (φ19*58) 11ml | (φ20*4) 0.7ml |
| (φ20*10) 1.5ml | (φ20*18) 3ml | (φ20*20) 3ml | (φ20*50) 9ml |
| (φ23*60) 18ml | (φ25*25) 8ml | (φ28*17) 7.5ml | (φ28*58) 25ml |
| (φ30*10) 3ml | (φ30*20) 7ml | (φ30*25) 9ml | (φ30*28) 12ml |

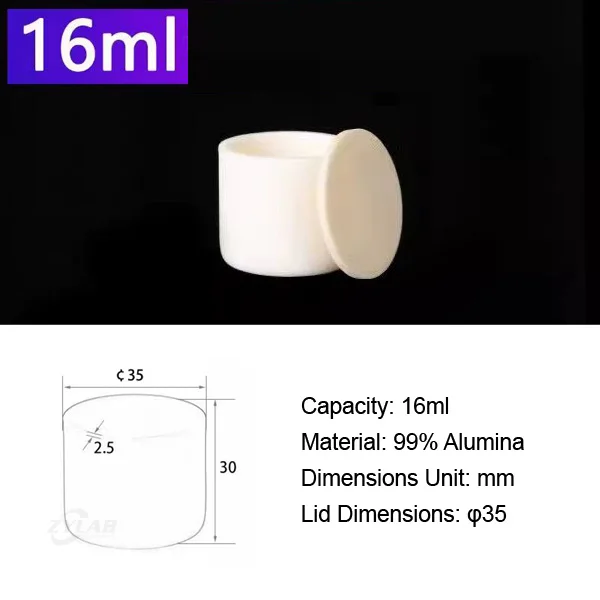

| (φ30*30) 13ml | (φ30*55) 23ml | (φ30*100) 52ml | (φ35*30) 16ml |
| (φ35*50) 38ml | (φ35*70) 50ml | (φ35*100) 73ml | (φ40*35) 29ml |

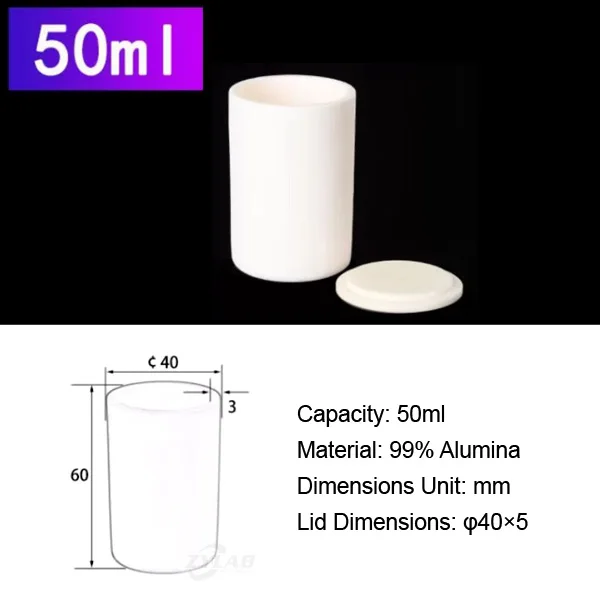

| (φ40*40) 35ml | (φ40*50) 40ml | (φ40*60) 50ml | (φ40*70) 53ml |
| (φ40*80) 61ml | (φ40*100) 93ml | (φ45*65) 74ml | (φ45*110) 127ml |
| (φ47*13) 15ml | (φ50*25) 28ml | (φ50*30) 40ml | (φ50*45) 63ml |
| (φ50*50) 70ml | (φ50*60) 85ml | (φ50*80) 120ml | (φ50*100) 145ml |
| (φ60*20) 31ml | (φ60*30) 52ml | (φ60*40) 72ml | (φ60*50) 92ml |
| (φ60*55) 100ml | (φ60*60) 118ml | (φ60*80) 176ml | (φ60*100) 220ml |
| (φ65*65) 160ml | (φ70*50) 130ml | (φ70*70) 220ml | (φ75*25) 80ml |
| (φ75*65) 260ml | (φ80*40) 146ml | (φ80*50) 180ml | (φ80*80) 280ml |
| (φ80*100) 360ml | (φ80*120) 470ml | (φ80*160) 630ml | (φ80*200) 790ml |
| (φ80*235) 900ml | (φ85*50) 198ml | (φ85*60) 250ml | (φ90*30) 150ml |
| (φ90*35) 163ml | (φ90*65) 300ml | (φ90*90) 450ml | (φ95*20) 95ml |
| (φ100*22) 125ml | (φ100*35) 220ml | (φ100*40) 250ml | (φ100*50) 300ml |
| (φ100*100) 630ml | (φ100*155) 1000ml | (φ100*180) 1100ml | (φ115*130) 1000ml |
| (φ120*22) 177ml | (φ120*120) 950ml | (φ125*150) 1350ml | (φ130*40) 395ml |
| (φ130*60) 560ml | (φ130*130) 1400ml | (φ140*140) 1600ml | (φ150*65) 840ml |
| (φ150*65) 840ml | (φ150*140) 2000ml | (φ150*150) 2230ml | (φ150*180) 2500ml |
| (φ160*160) 2700ml | (φ180*170) 3400ml | (φ200*100) 2520ml | (φ200*200) 5240ml |
| (φ230*80) 2400ml | |||
| The lids are available in inner convex, outer buckle, and flat disc forms, with crucible wall thicknesses ranging from 1mm to 8mm. |
