Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces
The ZYLAB Compact Tube Furnace Range offers a versatile selection of benchtop furnaces designed for high-temperature experiments in laboratories, universities, and R&D institutions. Available with maximum temperatures of 1200°C, 1500°C, or 1700°C, these single-zone tube furnaces deliver precise thermal control in a...
Introduction
The ZYLAB Compact Tube Furnace Range offers a versatile selection of benchtop furnaces designed for high-temperature experiments in laboratories, universities, and R&D institutions. Available with maximum temperatures of 1200°C, 1500°C, or 1700°C, these single-zone tube furnaces deliver precise thermal control in a compact footprint. Each model can be configured with optional vacuum systems, gas inlet/outlet ports, and custom tube sizes to meet diverse heat treatment needs.
Key Features
Compact Benchtop Design
Small footprint fits easily on laboratory workbenches, ideal for limited space environments.Multiple Temperature Options
Choose from 1200°C, 1500°C, or 1700°C models based on your process requirements.High-Quality Tube Materials
Equipped with quartz tubes (for ≤1200°C) or alumina tubes (for ≤1700°C) for thermal and chemical stability.Digital PID Temperature Control
Programmable multi-step PID controller ensures stable, precise temperature profiles.Single-Zone Heating
Uniform and stable temperature control using high-quality heating elements and thermal insulation.Customizable System Options
Configurable tube dimensions, gas flow systems, and vacuum components to suit your process.Safety and Reliability
CE-certified design with over-temperature protection and thermal insulation for safe operation.
Applications of Compact Tube Furnace
Sintering of Ceramics and Metal Powders
Suitable for small-scale sintering processes in additive manufacturing, materials development, and dental applications.Thermal Annealing of Materials
Used in semiconductor research, electronics, and thin-film processing for improving material properties and relieving internal stresses.Material Synthesis and Phase Transition Studies
Ideal for synthesizing new compounds and studying reactions under controlled thermal conditions.Calcination and Thermal Decomposition
Effective for removing organic binders, volatiles, or pre-treating powders before further processing.Heat Treatment in Controlled Atmospheres
With optional vacuum and gas flow systems, it can handle inert, reducing, or oxidizing conditions for advanced thermal experiments.Chemical Vapor Deposition (CVD) Research
Enables laboratory-scale CVD trials for coating development or surface modification.Debinding and Pre-Sintering of 3D Printed Components
Useful in post-processing ceramic or metal parts produced by 3D printing.General Laboratory Heating
Versatile for drying, roasting, or heating samples in university or industrial research labs.
Single Zone Tube Furnaces

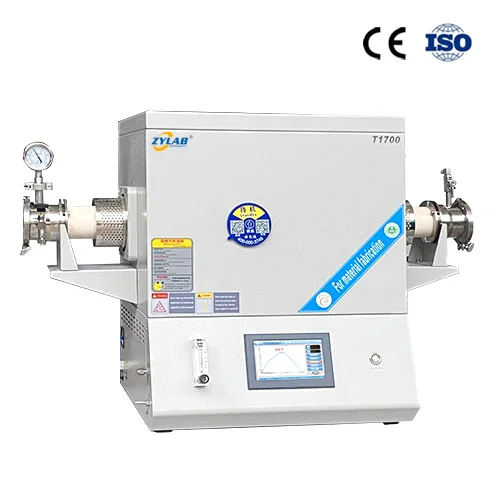

| Name | 1200°C Single Zone Tube Furnace | 1500°C Single Zone Tube Furnace | 1700°C Single Zone Tube Furnace |
|---|---|---|---|
| Image | |||
| Chamber Model | Open | Closed | Closed |
| Heating Zone | Single | Single | Single |
| Working voltage | AC208-240V 50/61HZ | AC208-240V 50/60HZ | AC208-240V 50/60HZ |
| Max. Power | 4KW | 3KW | 4.5KW |
| Maximum Temperature | 1200°C (for ≤1 hour) | 1500°C (for ≤1 hour) | 1700°C (for ≤1 hour) |
| Continuous Working Temp | 1150°C (continuous) | 1450°C (continuous) | 1650°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 440mm | 310mm | 310mm |
| Tube Material | High purity quartz | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) |
| Tube Size | Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C |
| Net Weight | 60 kg | 45 kg | 45 kg |
Customization Options
ZYLAB offers flexible customization to meet specific process requirements:
Multi-zone temperature control (1, 2, or 3 zones)
Integrated vacuum pump and gas control modules
Sliding furnace chamber or movable tube design
Rotating tube or vibration system for uniform heating
Exhaust gas treatment system
Compatible with glove box connections
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

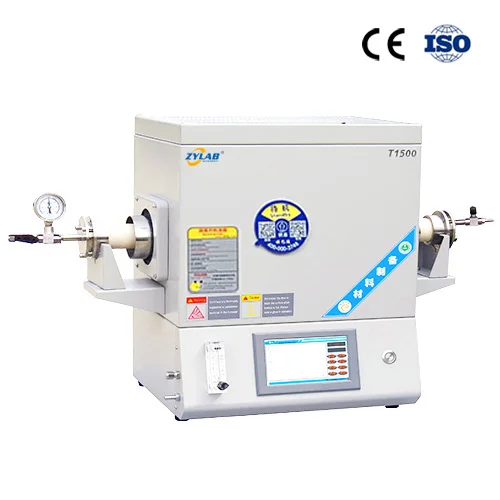

| Name | 1200°C Mini Tube Furnace | 1500°C Small Tube Furnace | 1700°C Small Tube Furnace |
|---|---|---|---|
| Image | |||
| Chamber Model | Open | Closed | Closed |
| Heating Zone | Single | Single | Single |
| Working voltage | AC208-240V 50/60HZ | AC208-240V 50/60HZ | AC208-240V 50/60HZ |
| Max. Power | 1.2KW | 1.5KW | 1.8KW |
| Maximum Temperature | 1200°C (for ≤1 hour) | 1500°C (for ≤1 hour) | 1700°C (for ≤1 hour) |
| Continuous Working Temp | 1150°C (continuous) | 1450°C (continuous) | 1650°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 200mm | 180mm | 180mm |
| Tube Material | High purity quartz | High Purity Alumina(Corundum tube) | High Purity Alumina(Corundum tube) |
| Tube Size | Φ25×600mm Φ50×600mm | Φ50×700mm | Φ50×700mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C |
| Net Weight | 23 kg | 30 kg | 30 kg |
Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Small Horizontal Tube Furnace for Hydrogen Loss Testing of Iron Powder
Automatic Glass & Material Melting Furnace up to 1700°C
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Box Furnace Pyrolysis Solution for High-Quality Biochar Research
1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
1200°C High Uniformity Vacuum Debinding Furnace for 3D Printing
Lab Scale Molten Salt Electrolysis Furnace for Metal Refining and Smelting
Multi-Zone High Temperature Quartz Tube Annealing Furnace for Wafer Processing
Ordering Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces
What is Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces typically used for?
The ZYLAB Compact Tube Furnace Range offers a versatile selection of benchtop furnaces designed for high-temperature experiments in laboratories, universities, and R&D institutions. Available with maximum temperatures of 1200°C, 1500°C, or 1700°C, these single
How quickly can Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
