Clay Kneading Machine
A vacuum clay kneading machine is a mechanical device used for vacuum processing ceramic materials. The leftover clay usually contains numerous air bubbles, and direct firing may result in cracking during the kiln process. To achieve the desired quality of new clay, we utilize a vacuum clay kneading machine, employing...
Introduction
A vacuum clay kneading machine is a mechanical device used for vacuum processing ceramic materials. The leftover clay usually contains numerous air bubbles, and direct firing may result in cracking during the kiln process. To achieve the desired quality of new clay, we utilize a vacuum clay kneading machine, employing vacuum refining to eliminate the trapped air bubbles.
Main Features

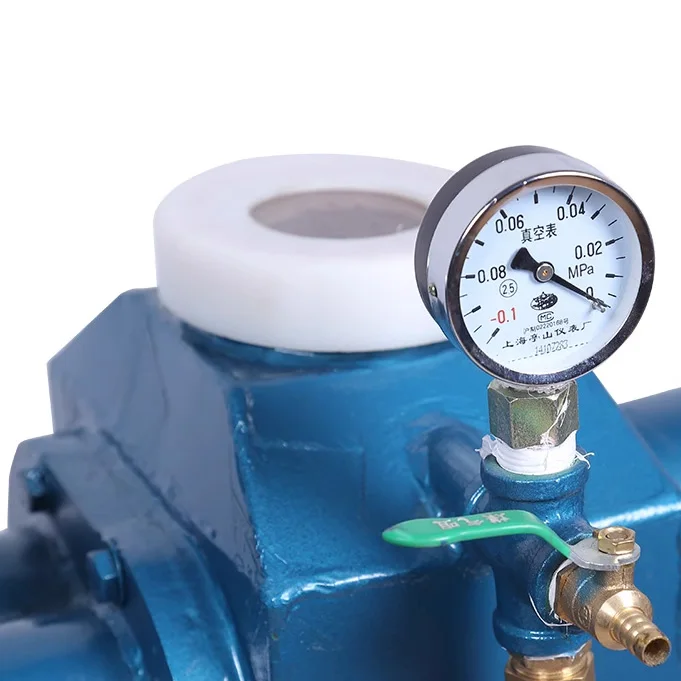

- The vacuum hydraulic gauge ensures accurate and safe readings, allowing for a more intuitive inspection of density.
- With a large output, the clay has a fine texture, and the material is densely compacted, effectively eliminating air bubbles.

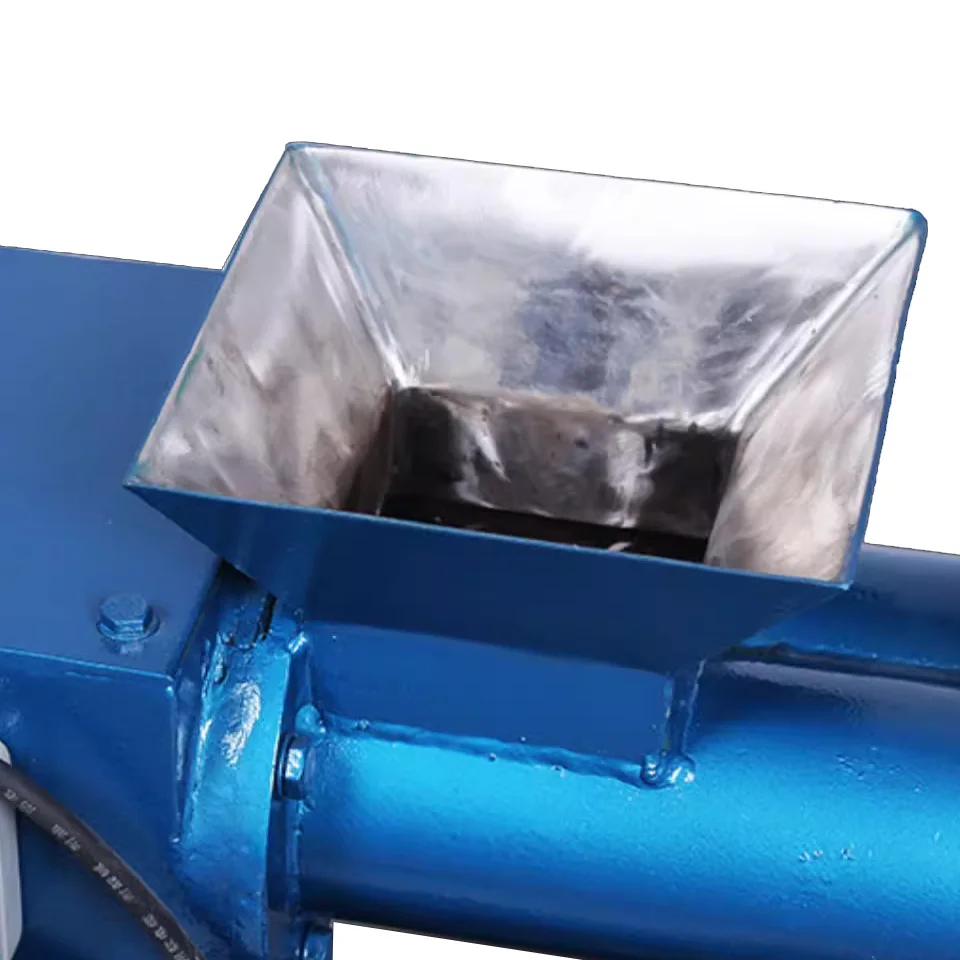

- The stainless-steel dual-axis feeding inlet facilitates a more delicate clay refining process, and preventing material contamination.
Fields
Art Colleges
Kindergarten
Art Studio
Personal Hobby Studio
Education and Training
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Product Name | Vacuum Clay Kneading Machine | Model | TCSW-80A |
|---|---|---|---|
| Voltage | 220V | Motor Power | 2.2KW |
| Vacuum Pump Power | 550W | Evacuation Speed | 4L/S |
| Production Capacity | 150-200kg/H | Rotation Speed | 1390rpm |

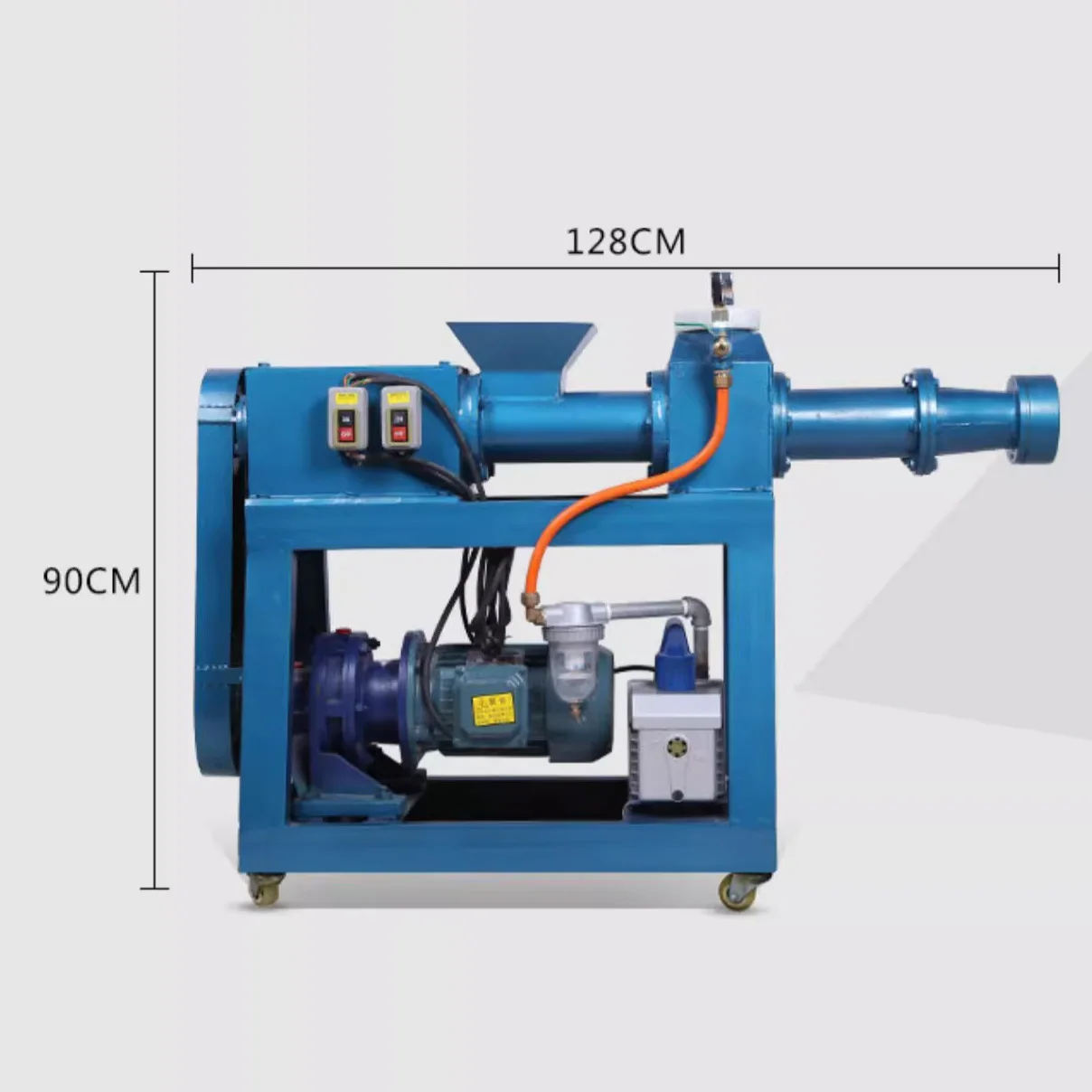

| Dimensions | 128*90cm | Weight | About 180kg |

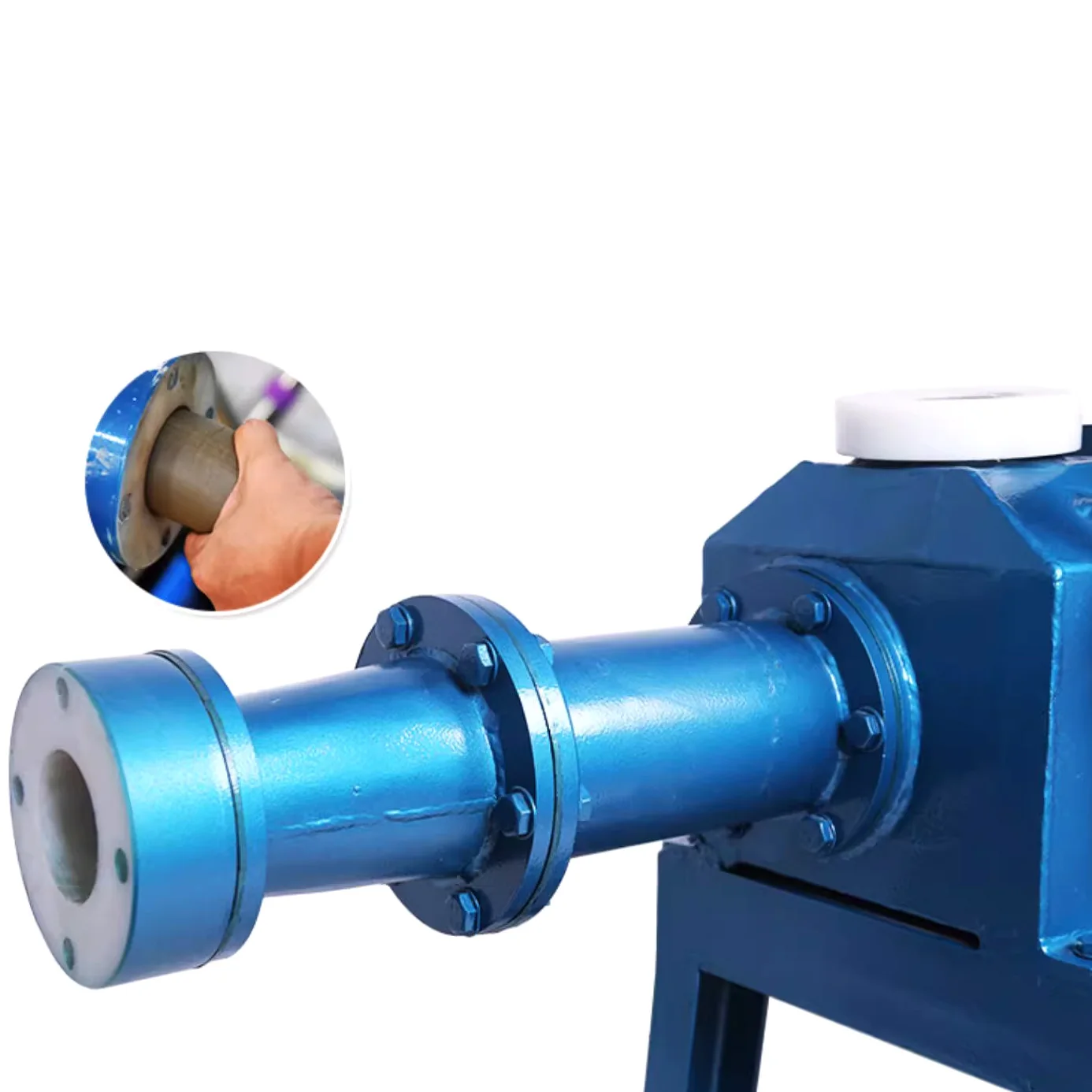

| Note | The minimum diameter of the mud nozzle is 25mm, and the maximum diameter is 60mm. |
Clay Kneading Machine In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
80L Top Loading Pottery Kiln with Full Ring Firing | High-Temperature Ceramic Kiln
Smart 60L Top-Loading Full Ring Electric Kiln for Ceramic Firing
Smart 30L Compact Home Pottery Kiln | Top-Loading, Full Ring Firing Design
150L 1300°C Intelligent Front-Loading Pottery Kiln
84L 1300°C Intelligent Pottery Kiln for Ceramic Studios
Reusable Ceramic Jewelry Hanging Firing Rack
High Strength Refractory Silicon Carbide Kiln Shelves
Transparent Glaze
Ordering Clay Kneading Machine
What is Clay Kneading Machine typically used for?
A vacuum clay kneading machine is a mechanical device used for vacuum processing ceramic materials. The leftover clay usually contains numerous air bubbles, and direct firing may result in cracking during the kiln process. To achieve the desired quality of new
Can Clay Kneading Machine be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Clay Kneading Machine be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Clay Kneading Machine within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Clay Kneading Machine packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
