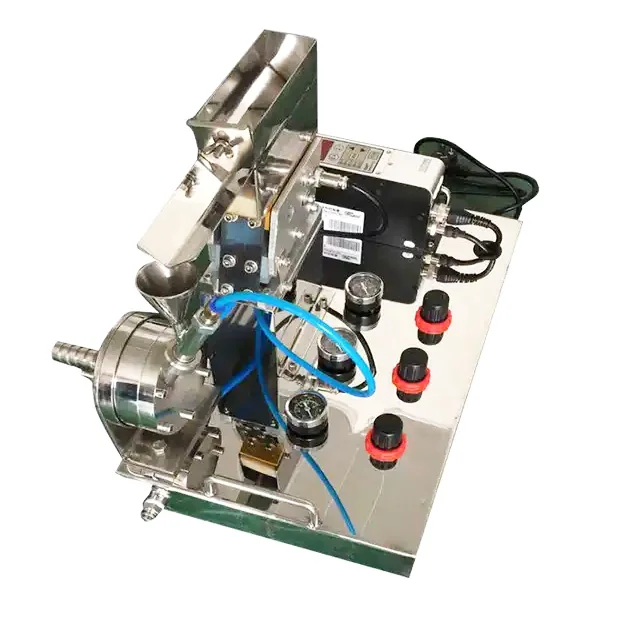

Laboratory Mini Airflow Pulverizer
Mini Airflow Pulverizer is a kind of ultra-small bench-top machine, which is is suitable for superfine pulverization of ultra-small material with high value in laboratory. It can be especially suitable for laboratories which need to change different materials frequently. This machine is often applied to pulverize...
Introduction
Mini Airflow Pulverizer is a kind of ultra-small bench-top machine, which is is suitable for superfine pulverization of ultra-small material with high value in laboratory. Mini air flow pulverizer has to be equipped with air compressor for working.
Application Fields
Mini Airflow Pulverizer can be especially suitable for laboratories which need to change different materials frequently. This machine is often applied to pulverize various kinds of high hardness and brittle materials like zircon sand, zirconia, silica, alumina, calcium carbonate, carbon black, AC blowing agent, coating, fluorescent powder, plastics, pearl powder, various fillers for rubber, and etc.
Characteristics of Mini Airflow Pulverizer
1. Tabletop Mini Machine: This is an ultra-compact machine that can be placed on a workbench and is suitable for ultra-fine grinding of small quantities of high-value powders in laboratory settings.
2. High Recovery Rate: With a quick blow of compressed air, the machine interior becomes clean, making it especially suitable for laboratories where powder varieties are frequently changed.
3. Wide Application: Used for crushing high-hardness, brittle materials, such as zirconia sand, zirconium oxide, silica, alumina, calcium carbonate, carbon black, AC foaming agent, coatings, fluorescent powders, various fillers for plastics and rubber, pearl powders, etc.
Technical Details
Model: JM-1
Processing Capacity: 50-500g/hr
Feed Size 100 mesh, Output Size 2-5 micrometers
Air Consumption: >0.4M3/min
Pressure: Feeding Nozzle 0.3~0.4MPa; Grinding Pressure 0.6~0.7MPa
Power Requirement: 5.5KW/hr
Dimensions: 540X340X250(mm)
Net Weight: 15kg

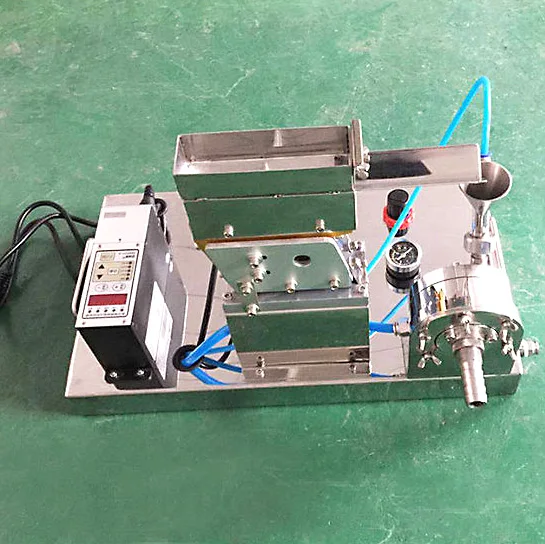

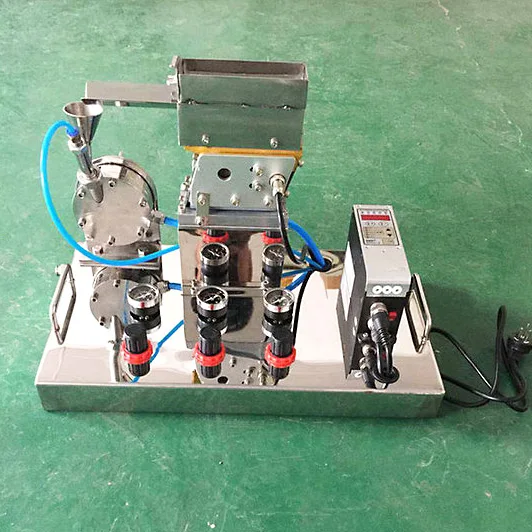

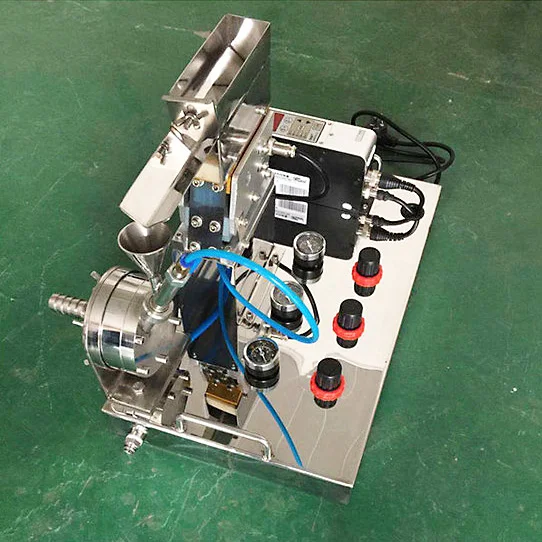

Laboratory Mini Airflow Pulverizer In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab Compact Jet Mill with Feeder and Product Collector
5-500g/h Compact Jet Mill for Lab Use with Cyclone Separator and Collection Vessel
High-efficiency 50- 500g/h Lab Scale Jet Mill with Cyclone Separator and Collection Vessel
Laboratory Compact Jet Mill 5 – 500 g/hr
Laboratory Clean Crushing Jaw Crusher
40L Pilot-Scale Planetary Ball Mill with Lifting and Discharging Trolley
0.4L/1L/2L/4L/8L Ball Mill Pulverizer for Research Labs
Lab Precision Ball Mill for Pulverizing Minerals, Ceramics, and Chemicals
Ordering Laboratory Mini Airflow Pulverizer
What is Laboratory Mini Airflow Pulverizer typically used for?
Mini Airflow Pulverizer is a kind of ultra-small bench-top machine, which is is suitable for superfine pulverization of ultra-small material with high value in laboratory. It can be especially suitable for laboratories which need to change different materials
Can Laboratory Mini Airflow Pulverizer be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Laboratory Mini Airflow Pulverizer be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Laboratory Mini Airflow Pulverizer within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Laboratory Mini Airflow Pulverizer packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For Laboratory Mini Airflow Pulverizer
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
